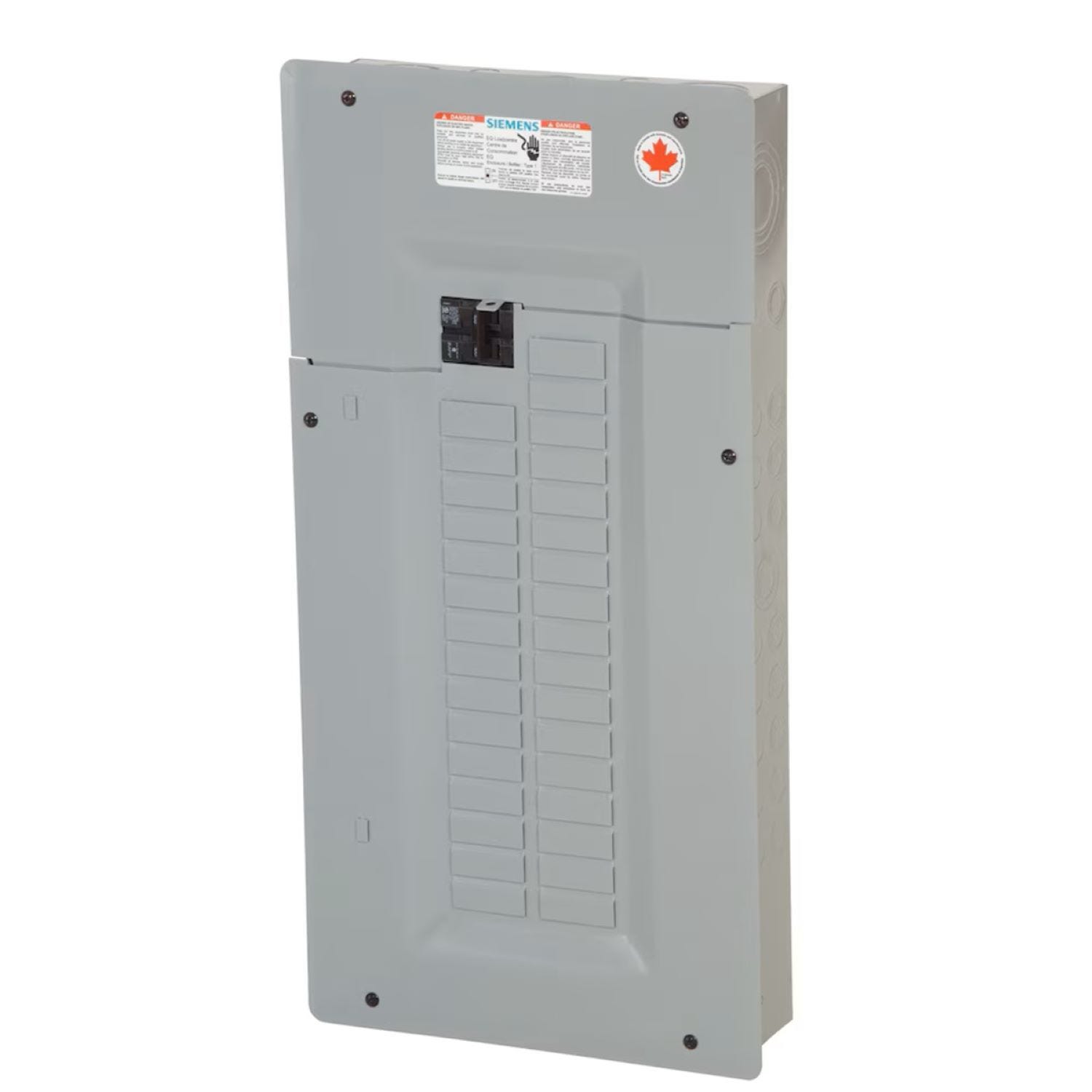

Volsite Electric Panel w/Breaker 100A 32/64 Circuit 120/240V
UPC
628123380108
N° article en ligne
1672401
Model Number
VP32100AF
0,00 $
824,99 $
Payer aussi bas que
34,37 $ /mois
pour
24 mois
Ce montant n'inclut pas les taxes, les frais d'expédition et autres frais.
Main breaker type load center with voltage rating of 120 - 240 V and current rating of 100 A. Made up of aluminum and copper (buss bar) and has 32/64 circuits. With combination mounting type, load center measures 29 1/2" in height, 14.88" in width and 4.63" in depth. Complete with a factory installed 100 A main breaker. A complete line of accessories give load centers the flexibility to meet application requirements. Any combination of full and half module plug-in breakers can be added to fulfill individual needs or free up space as required.
- 32 Circuits Expandable To 64
- Comes W/ Siemens Branch Circuit Breakers - 8 x Q115, 2 x Q120, 2 x Q215, 1 x Q230, 1 x Q240, 2 x QA115AFCCSA
- Powered by Siemens Service Entrance Loadcentre with 100A (22KA) Factory Installed Main Breaker
- Combo Flush or Surface Mount Trim
- Colour - Grey
| Pays d'origine | Canada |
|---|---|
| Material | Steel |
| Assembled Width (in) | 16.14 |
| Assembled Height (in) | 4.72 |
| Assembled Depth (in) | 29.13 |
| Assembled Weight (lb) | 31 |
| Voltage Rating | 120/240 V CA |
| Amperage Rating | 100 A |
| Forme | Rectangulaire |
Aperçu
Main breaker type load center with voltage rating of 120 - 240 V and current rating of 100 A. Made up of aluminum and copper (buss bar) and has 32/64 circuits. With combination mounting type, load center measures 29 1/2" in height, 14.88" in width and 4.63" in depth. Complete with a factory installed 100 A main breaker. A complete line of accessories give load centers the flexibility to meet application requirements. Any combination of full and half module plug-in breakers can be added to fulfill individual needs or free up space as required.
- 32 Circuits Expandable To 64
- Comes W/ Siemens Branch Circuit Breakers - 8 x Q115, 2 x Q120, 2 x Q215, 1 x Q230, 1 x Q240, 2 x QA115AFCCSA
- Powered by Siemens Service Entrance Loadcentre with 100A (22KA) Factory Installed Main Breaker
- Combo Flush or Surface Mount Trim
- Colour - Grey
Specifications
| Pays d'origine | Canada |
|---|---|
| Material | Steel |
| Assembled Width (in) | 16.14 |
| Assembled Height (in) | 4.72 |
| Assembled Depth (in) | 29.13 |
| Assembled Weight (lb) | 31 |
| Voltage Rating | 120/240 V CA |
| Amperage Rating | 100 A |
| Forme | Rectangulaire |
