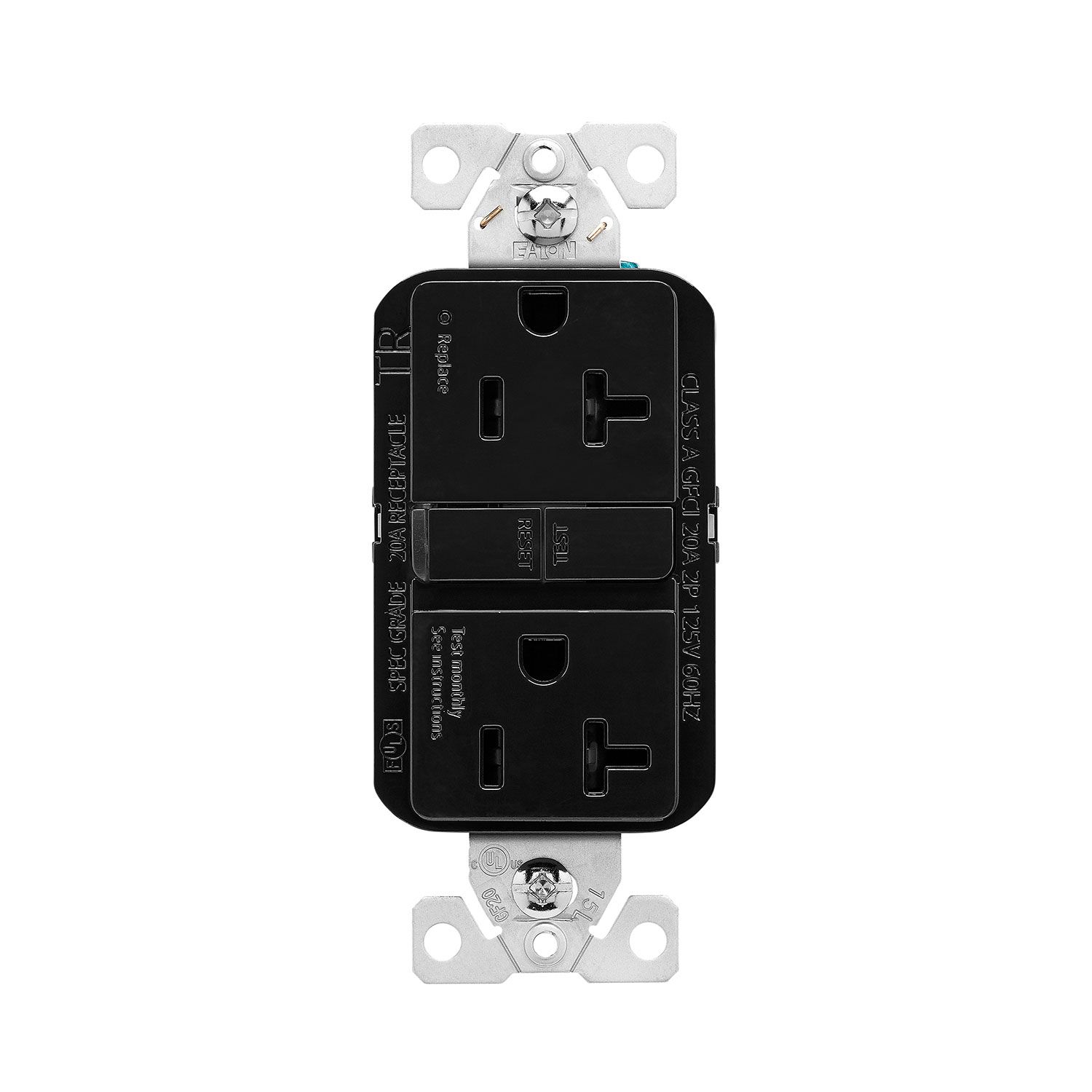

Prise duplex déco ST GFCI TR noire 20A 125V
UPC
032664008023
N° article en ligne
1550653
Model Number
TRGF20BK-BX-L
0,00 $
29,99 $
The Black Safety Duplex Outlet Plug is crafted with a focus on protection and ease of use. This power socket offers safety shutters to prevent accidental access and regularly conducts self-checks to maintain protection. The receptacle features clear status indicators and a sleek design.
- Black colour
- With back and side wire connections
- Suitable for wall installation
- 20 amp with a voltage rating of 120/125 volt
- Complies with safety standards featuring a 10 kilo-amp short circuit rating
| Pays d'origine | Chine |
|---|---|
| Assembled Width (in) | 1.69 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.03 |
| Assembled Weight (lb) | 3.32 |
| Temperature Rating (C) | -35 à 66 |
| Voltage Rating | 120/125 V |
| Amperage Rating | 20 A |
| Terminal Connection | Fil arrière et latéral |
| Number of Poles | 2 |
| Durability | Utilisation générale |
| Trip Time (sec) | 0,025 |
| Type of Mounting | Wall Mount |
| Short Circuit Rating | 10 kA |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2 000 Volts |
| Environmental Conditions | Cote d'inflammabilité UL94 par V2 |
| Style | Duplex |
Aperçu
The Black Safety Duplex Outlet Plug is crafted with a focus on protection and ease of use. This power socket offers safety shutters to prevent accidental access and regularly conducts self-checks to maintain protection. The receptacle features clear status indicators and a sleek design.
- Black colour
- With back and side wire connections
- Suitable for wall installation
- 20 amp with a voltage rating of 120/125 volt
- Complies with safety standards featuring a 10 kilo-amp short circuit rating
Specifications
| Pays d'origine | Chine |
|---|---|
| Assembled Width (in) | 1.69 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.03 |
| Assembled Weight (lb) | 3.32 |
| Temperature Rating (C) | -35 à 66 |
| Voltage Rating | 120/125 V |
| Amperage Rating | 20 A |
| Terminal Connection | Fil arrière et latéral |
| Number of Poles | 2 |
| Durability | Utilisation générale |
| Trip Time (sec) | 0,025 |
| Type of Mounting | Wall Mount |
| Short Circuit Rating | 10 kA |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2 000 Volts |
| Environmental Conditions | Cote d'inflammabilité UL94 par V2 |
| Style | Duplex |
