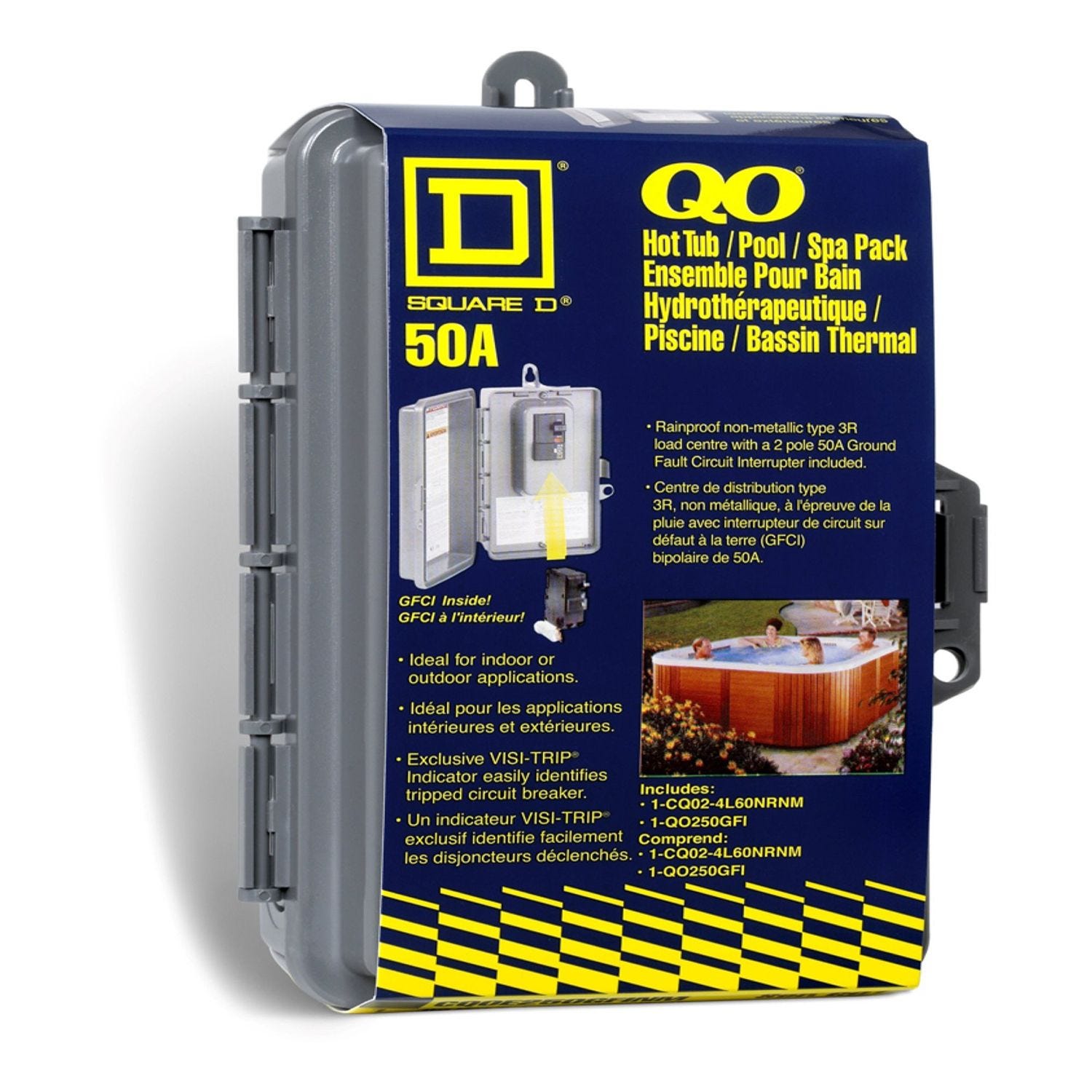

Forfait Spa, Piscine et Bain à Remous 50 Amp
UPC
785901293316
N° article en ligne
1585456
Model Number
CQOE250GFINM
0,00 $
287,99 $

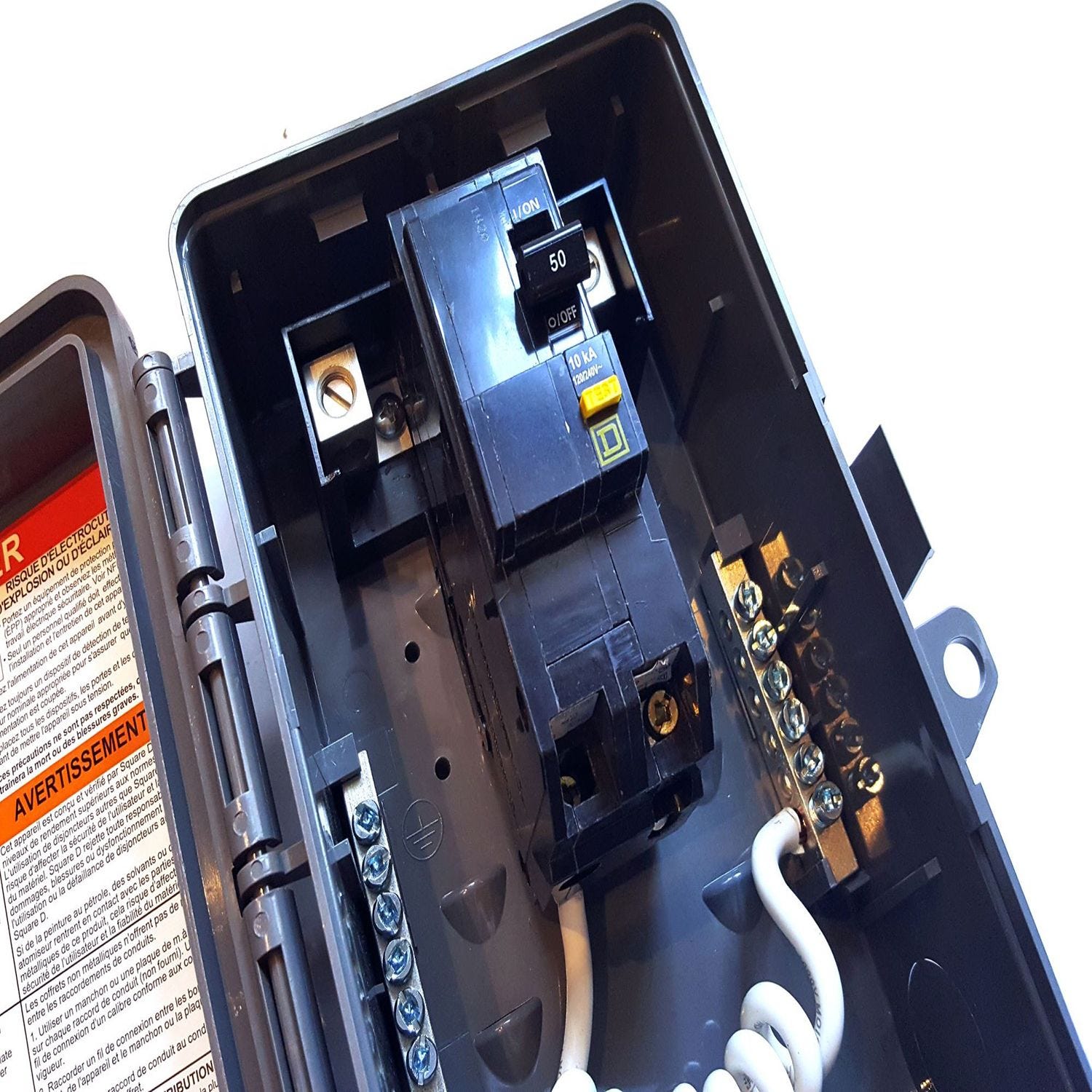

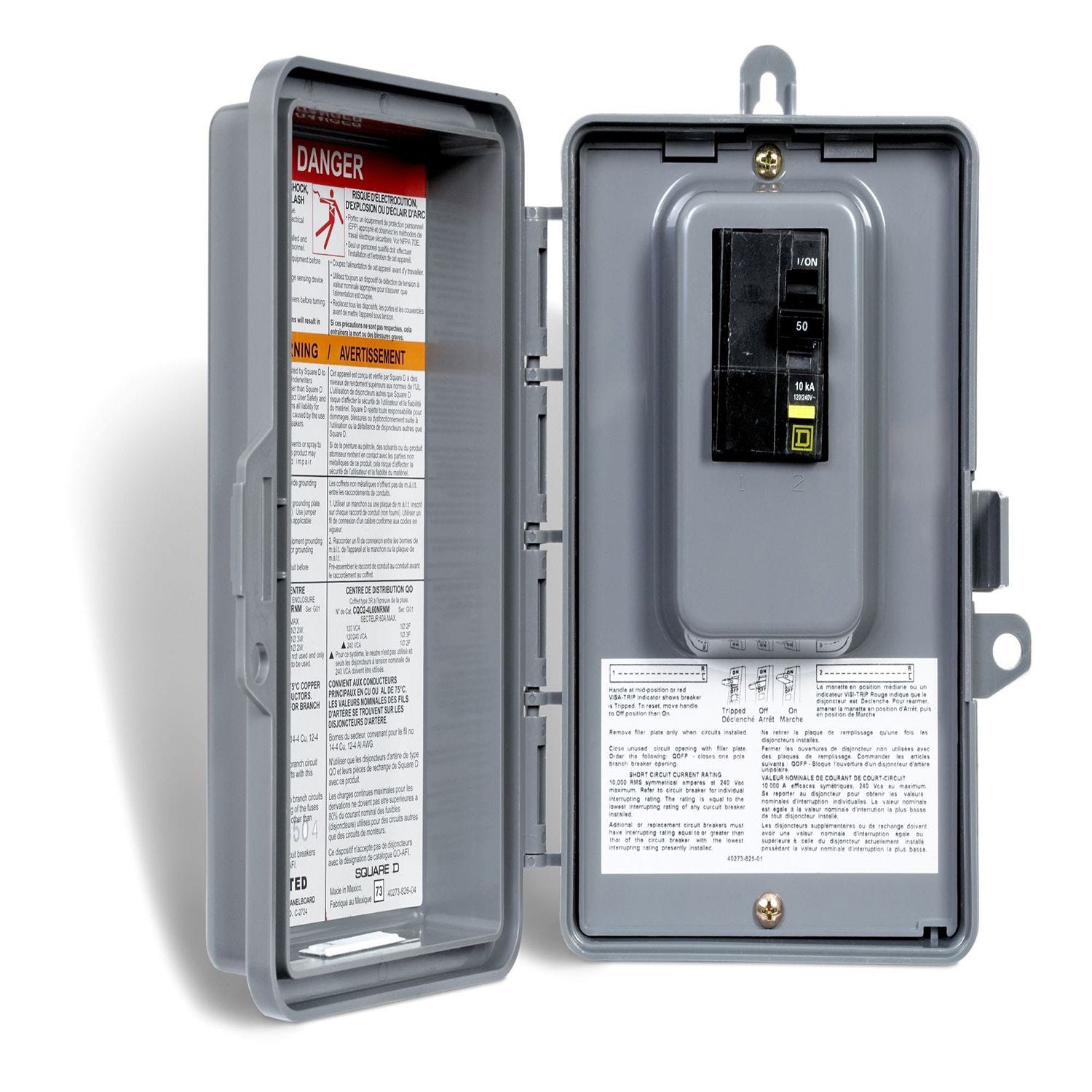

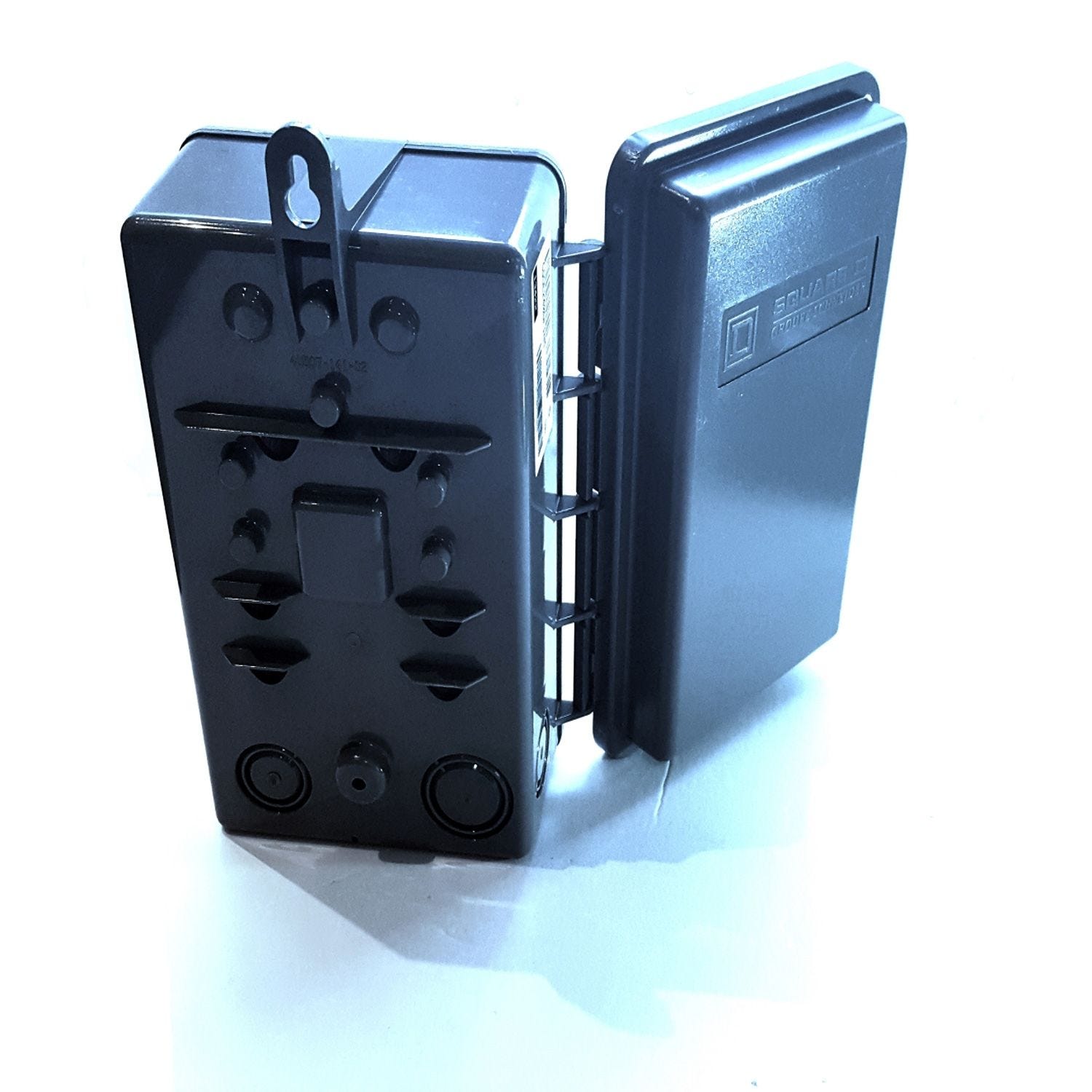

Loadcentres offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centres enable the use of a full complement of accessories such as combination covers which are included her Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 18 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centres feature plated copper bus, providing superior performance and durability. This QO Load Centre enclosure contains a enclosed main breaker and is rated at 5 A and 1 phase. This 3 wire system is a NEMA 3R enclosure and comes with ground fault protection A combination cover is supplied with this load centre.
- 50 Amp rating
- Suitable for single and three-phase configurations
- Grey colour
- Weather-resistant enclosure for outdoor use
- Lifetime warranty
| Manufacturer's Warranty | Lifetime |
|---|---|
| Pays d'origine | Mexico |
| Assembled Width (in) | 6.6 |
| Assembled Height (in) | 4.2 |
| Assembled Depth (in) | 9.3 |
| Assembled Weight (lb) | 2.52 |
| Wire Size | 4 AWG to 25 kcmil |
| Temperature Rating (C) | 40 |
| GFCI | Non |
| Interrupt Rating | 1 000 kilo-ampères |
| Voltage Rating | 120/240 V CA |
| Amperage Rating | 50 A |
| Terminal Connection | Cosse |
| Number of Poles | 2 |
Aperçu
Loadcentres offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centres enable the use of a full complement of accessories such as combination covers which are included her Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 18 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centres feature plated copper bus, providing superior performance and durability. This QO Load Centre enclosure contains a enclosed main breaker and is rated at 5 A and 1 phase. This 3 wire system is a NEMA 3R enclosure and comes with ground fault protection A combination cover is supplied with this load centre.
- 50 Amp rating
- Suitable for single and three-phase configurations
- Grey colour
- Weather-resistant enclosure for outdoor use
- Lifetime warranty
Specifications
| Manufacturer's Warranty | Lifetime |
|---|---|
| Pays d'origine | Mexico |
| Assembled Width (in) | 6.6 |
| Assembled Height (in) | 4.2 |
| Assembled Depth (in) | 9.3 |
| Assembled Weight (lb) | 2.52 |
| Wire Size | 4 AWG to 25 kcmil |
| Temperature Rating (C) | 40 |
| GFCI | Non |
| Interrupt Rating | 1 000 kilo-ampères |
| Voltage Rating | 120/240 V CA |
| Amperage Rating | 50 A |
| Terminal Connection | Cosse |
| Number of Poles | 2 |
