2-Pole 120/240V AC GFCI Circuit Breaker-20A Rated
UPC
804766707476
N° article en ligne
1672393
Model Number
US2:QF220ACSA
0,00 $
339,99 $
Payer aussi bas que
14,17 $ /mois
pour
24 mois
Ce montant n'inclut pas les taxes, les frais d'expédition et autres frais.

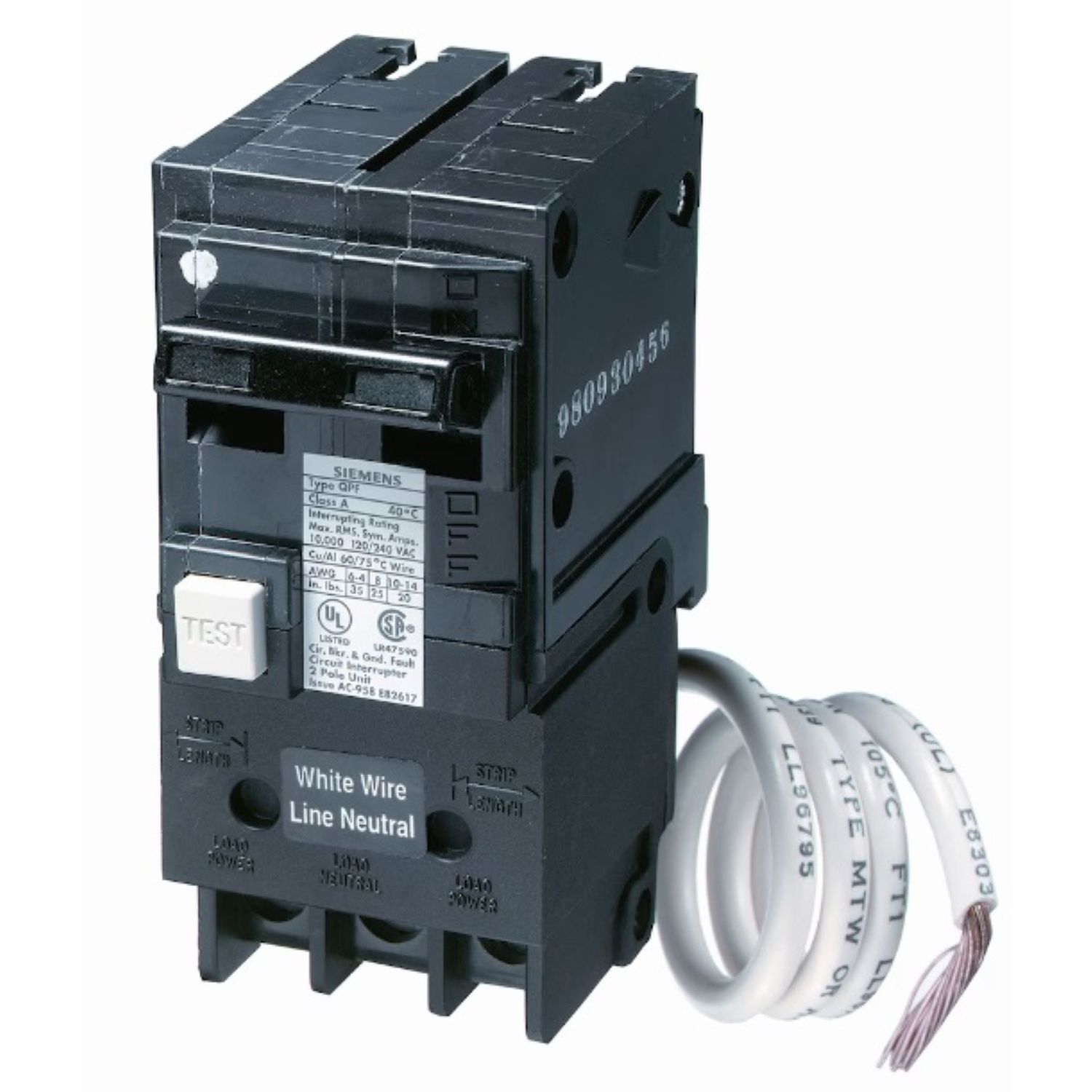

This Siemens 20 A rated GFCI 2-pole circuit breaker features a LED which allows to easily identify the tripped breaker. It also features a self-test function: if the breaker detects that it has been compromised, it trips itself and locks in this position so that it can't be reset. This circuit breaker range is designed to detect ground faults. The breaker provides overload and short circuit protection (120/240 V AC).
- Device intended for personnel protection from Ground Faults
- LED trip indicators to help identify fault conditions
- Autonomously and continuously tests itself for device malfunction
- White line neutral (pigtail) must be connected to the panel neutral for the device to function
- Suitable for a variety of construction applications including spas, hot tubs, kitchens, bathrooms, etc.
| Pays d'origine | Philippines |
|---|---|
| Material | Die Cast Plastic |
| Assembled Width (in) | 4.5 |
| Assembled Height (in) | 2 |
| Assembled Depth (in) | 3 |
| Assembled Weight (lb) | 1 |
| Wire Size | 14-8 AWG (aluminium/cuivre) |
| Interrupt Rating | 10 kA |
| Voltage Rating | 120/240 V |
| Amperage Rating | 20 A |
| Terminal Connection | Borne de cosse côté de charge |
| Number of Poles | 1 |
Aperçu
This Siemens 20 A rated GFCI 2-pole circuit breaker features a LED which allows to easily identify the tripped breaker. It also features a self-test function: if the breaker detects that it has been compromised, it trips itself and locks in this position so that it can't be reset. This circuit breaker range is designed to detect ground faults. The breaker provides overload and short circuit protection (120/240 V AC).
- Device intended for personnel protection from Ground Faults
- LED trip indicators to help identify fault conditions
- Autonomously and continuously tests itself for device malfunction
- White line neutral (pigtail) must be connected to the panel neutral for the device to function
- Suitable for a variety of construction applications including spas, hot tubs, kitchens, bathrooms, etc.
Specifications
| Pays d'origine | Philippines |
|---|---|
| Material | Die Cast Plastic |
| Assembled Width (in) | 4.5 |
| Assembled Height (in) | 2 |
| Assembled Depth (in) | 3 |
| Assembled Weight (lb) | 1 |
| Wire Size | 14-8 AWG (aluminium/cuivre) |
| Interrupt Rating | 10 kA |
| Voltage Rating | 120/240 V |
| Amperage Rating | 20 A |
| Terminal Connection | Borne de cosse côté de charge |
| Number of Poles | 1 |
