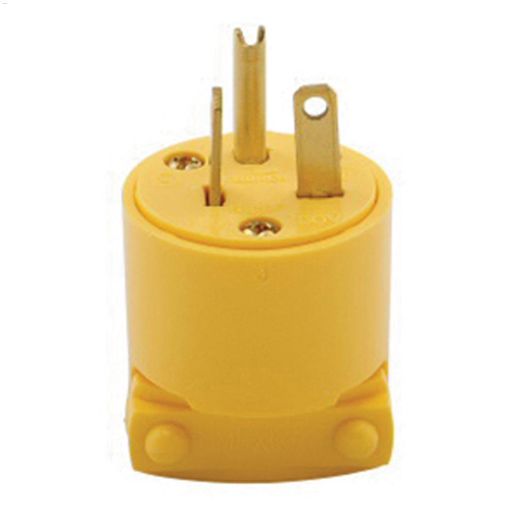

Yellow Straight Blade Plug 20A 250V 2P/3W
UPC
032664340000
Online Sku
1023631
Model Number
4509-BOX
$0.00
$14.89
This 2-pole straight blade plug is crafted with sturdy vinyl and brass components, ensuring long-lasting performance for all your wiring needs. It supports a 3-wire arrangement and is rated for 20 amps. The plug features specially designed screw clamps to securely fasten wires and prevent any binding. It measures 2-1/2" x 1-1/2" x 1-1/2" and operates efficiently in temperatures from -20 to 60°C.
- Dimensions: 2-1/2" x 1-1/2" x 1-1/2"
- Yellow colour
- Made from robust vinyl and brass materials
- Suitable for 18-12 gauge wire size
- Includes combination slot/crosshead mounting for easy installation
| Assembled Width (in) | 1.5 |
|---|---|
| Assembled Height (in) | 1.5 |
| Assembled Depth (in) | 2.5 |
| Colour | Yellow |
| Wire Size | 18-12 AWG |
| Voltage Rating | 250 Volt |
| Amperage Rating | 20 Amp |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 6-20P |
- 6823285 Spec Download
Overview
This 2-pole straight blade plug is crafted with sturdy vinyl and brass components, ensuring long-lasting performance for all your wiring needs. It supports a 3-wire arrangement and is rated for 20 amps. The plug features specially designed screw clamps to securely fasten wires and prevent any binding. It measures 2-1/2" x 1-1/2" x 1-1/2" and operates efficiently in temperatures from -20 to 60°C.
- Dimensions: 2-1/2" x 1-1/2" x 1-1/2"
- Yellow colour
- Made from robust vinyl and brass materials
- Suitable for 18-12 gauge wire size
- Includes combination slot/crosshead mounting for easy installation
Specifications
| Assembled Width (in) | 1.5 |
|---|---|
| Assembled Height (in) | 1.5 |
| Assembled Depth (in) | 2.5 |
| Colour | Yellow |
| Wire Size | 18-12 AWG |
| Voltage Rating | 250 Volt |
| Amperage Rating | 20 Amp |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 6-20P |
Downloads
- 6823285 Spec Download
