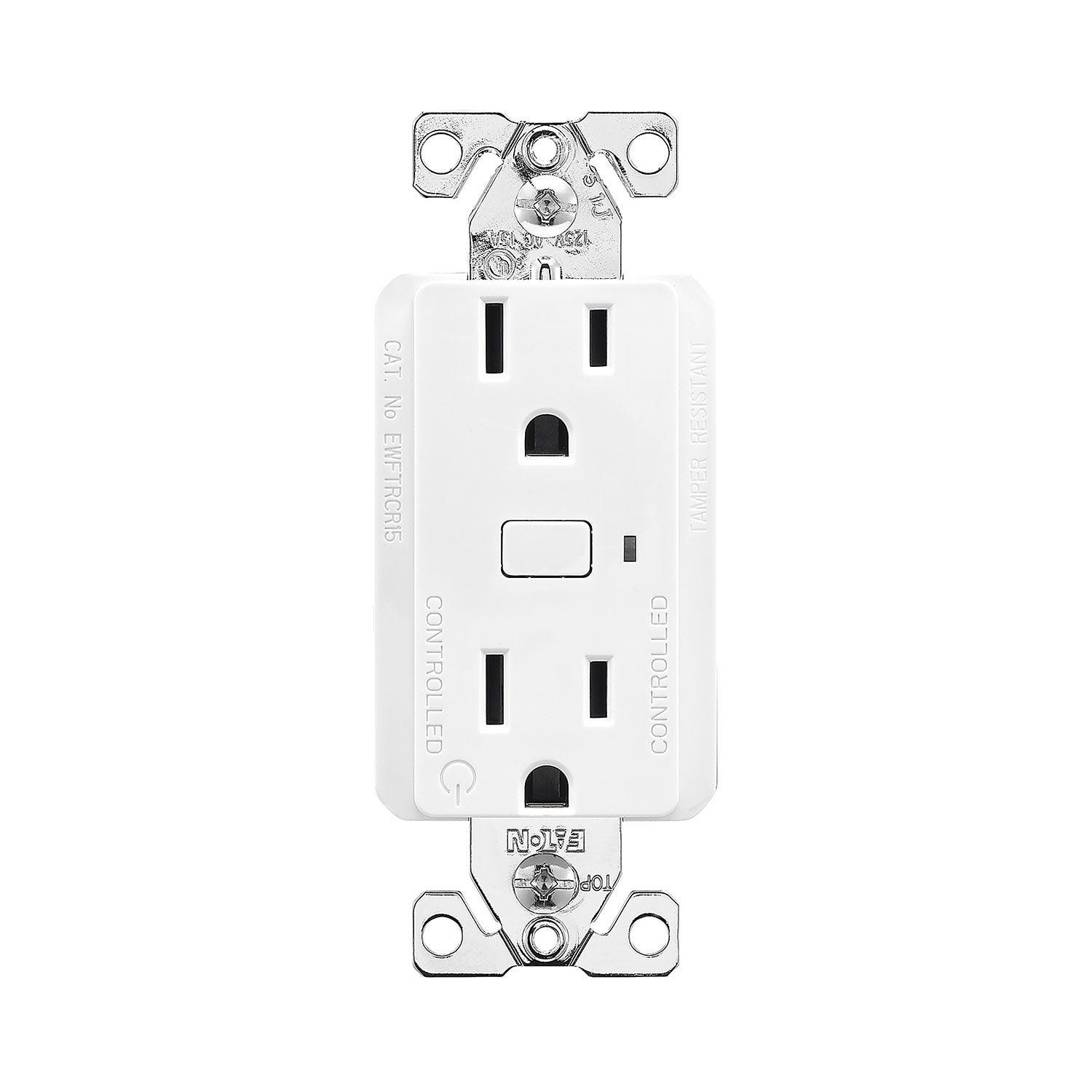

White Wi-Fi Smart Receptacle
UPC
032664005633
Online Sku
1550647
Model Number
EWFTRCR15-W-BX-TC
$0.00
$39.99
Set up and control receptacle using the Eaton Brightlayer Home App or by voice commands, no hub required • Provides control of one outlet leaving the other one for normal use. Can be wired with a standard 3-way switch where a traveler wire exists. RGB LED for precise status indication. Neutral required for installation. For added safety, complies with NEC® specification that states all receptacles installed in dwelling units must be tamper resistant. Rated for 1/2 HP motor loads. Adjust how long lights stay on to allow for a safe, convenient exit.
- Set up and control receptacle using the Eaton Brightlayer Home App or by voice commands
- No hub required
- Provides control of one outlet leaving the other one for normal use
- Can be wired with a standard 3-way switch where a traveler wire exists
- For added safety| complies with NEC® specification that states all receptacles installed in dwelling units must be tamper resistant
| Country of Origin | China |
|---|---|
| Assembled Width (in) | 1.73 |
| Assembled Height (in) | 4.12 |
| Assembled Depth (in) | 1.56 |
| Assembled Weight (lb) | 0.06 |
| Temperature Rating (C) | -10 to 40 |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 15 Amp |
| Terminal Connection | Side & Push Wire |
| Number of Poles | 2 |
| Durability | General Duty |
| Type of Mounting | Wall Mounted |
| Number of Wires | 3 |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
Overview
Set up and control receptacle using the Eaton Brightlayer Home App or by voice commands, no hub required • Provides control of one outlet leaving the other one for normal use. Can be wired with a standard 3-way switch where a traveler wire exists. RGB LED for precise status indication. Neutral required for installation. For added safety, complies with NEC® specification that states all receptacles installed in dwelling units must be tamper resistant. Rated for 1/2 HP motor loads. Adjust how long lights stay on to allow for a safe, convenient exit.
- Set up and control receptacle using the Eaton Brightlayer Home App or by voice commands
- No hub required
- Provides control of one outlet leaving the other one for normal use
- Can be wired with a standard 3-way switch where a traveler wire exists
- For added safety| complies with NEC® specification that states all receptacles installed in dwelling units must be tamper resistant
Specifications
| Country of Origin | China |
|---|---|
| Assembled Width (in) | 1.73 |
| Assembled Height (in) | 4.12 |
| Assembled Depth (in) | 1.56 |
| Assembled Weight (lb) | 0.06 |
| Temperature Rating (C) | -10 to 40 |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 15 Amp |
| Terminal Connection | Side & Push Wire |
| Number of Poles | 2 |
| Durability | General Duty |
| Type of Mounting | Wall Mounted |
| Number of Wires | 3 |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
