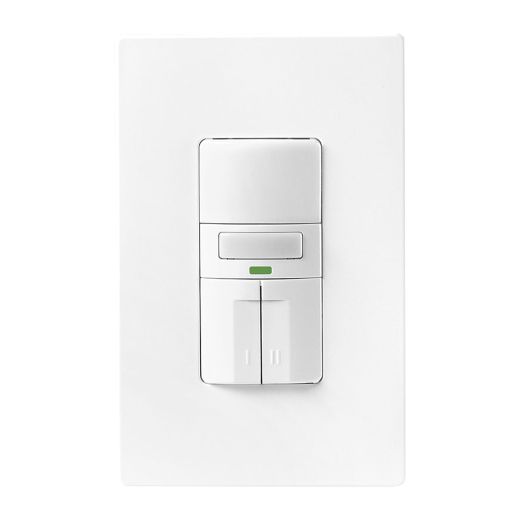

White 3-Way Motion Sensor Dual Switch With LED 120V 1P
UPC
032664710360
Online Sku
1019423
Model Number
OS310R-C2-K
$0.00
$69.99
3-Way Motion sensor dual switch with LED nightlight, is compatible with any decorator style or decorator screwless wallplate. Dual switch in white colour, has polycarbonate housing for longer life. The 1-Pole switch is rated at 1/6 hp, 120 VAC and 600 Watts. Sensor switch turns light off after a space become vacant and a time delay elapses. This sensor provide auto-ON/auto-OFF or manual-ON/auto-OFF operation for user convenience. Dual switch feature facilitates for controlling two different loads from a single location. It is perfect replacement for a standard light or fan switch. Switch has push pad design which renders nominal travel as well crisp actuation. It comes with #14 AWG pre-stripped wire leads of length 6 in and is designed to operate at temperature range of 0 to 40 deg C. It works well with different loads including incandescent, magnetic low voltage, electronic low voltage, fluorescent, CFL and LED. Motion sensor dual switch is UL/cULus listed, and NOM certified.
- Can be wired as a 1-Pole or 3-Way device
- Selectable ON/OFF LED nightlight with press and hold dimming function
- Works will all popular load types including incandescent, magnetic low voltage, electronic low-voltage, fluorescent, CFL and LED
- Contains two switches to control two independent lighting loads or circuits (light and/or fan)
- Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
- Push pad design provides minimal travel and crisp actuation
- Replaces a standard light or fan switch
- Provides 180 deg field of view and 1000 Sq. ft of major motion coverage
- Standards: cULus listed to UL244A, NOM
Colour | White |
---|---|
Voltage Rating | 120 volts AC |
Number of Poles | 1 |
Overview
3-Way Motion sensor dual switch with LED nightlight, is compatible with any decorator style or decorator screwless wallplate. Dual switch in white colour, has polycarbonate housing for longer life. The 1-Pole switch is rated at 1/6 hp, 120 VAC and 600 Watts. Sensor switch turns light off after a space become vacant and a time delay elapses. This sensor provide auto-ON/auto-OFF or manual-ON/auto-OFF operation for user convenience. Dual switch feature facilitates for controlling two different loads from a single location. It is perfect replacement for a standard light or fan switch. Switch has push pad design which renders nominal travel as well crisp actuation. It comes with #14 AWG pre-stripped wire leads of length 6 in and is designed to operate at temperature range of 0 to 40 deg C. It works well with different loads including incandescent, magnetic low voltage, electronic low voltage, fluorescent, CFL and LED. Motion sensor dual switch is UL/cULus listed, and NOM certified.
- Can be wired as a 1-Pole or 3-Way device
- Selectable ON/OFF LED nightlight with press and hold dimming function
- Works will all popular load types including incandescent, magnetic low voltage, electronic low-voltage, fluorescent, CFL and LED
- Contains two switches to control two independent lighting loads or circuits (light and/or fan)
- Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
- Push pad design provides minimal travel and crisp actuation
- Replaces a standard light or fan switch
- Provides 180 deg field of view and 1000 Sq. ft of major motion coverage
- Standards: cULus listed to UL244A, NOM
Specifications
Colour | White |
---|---|
Voltage Rating | 120 volts AC |
Number of Poles | 1 |
