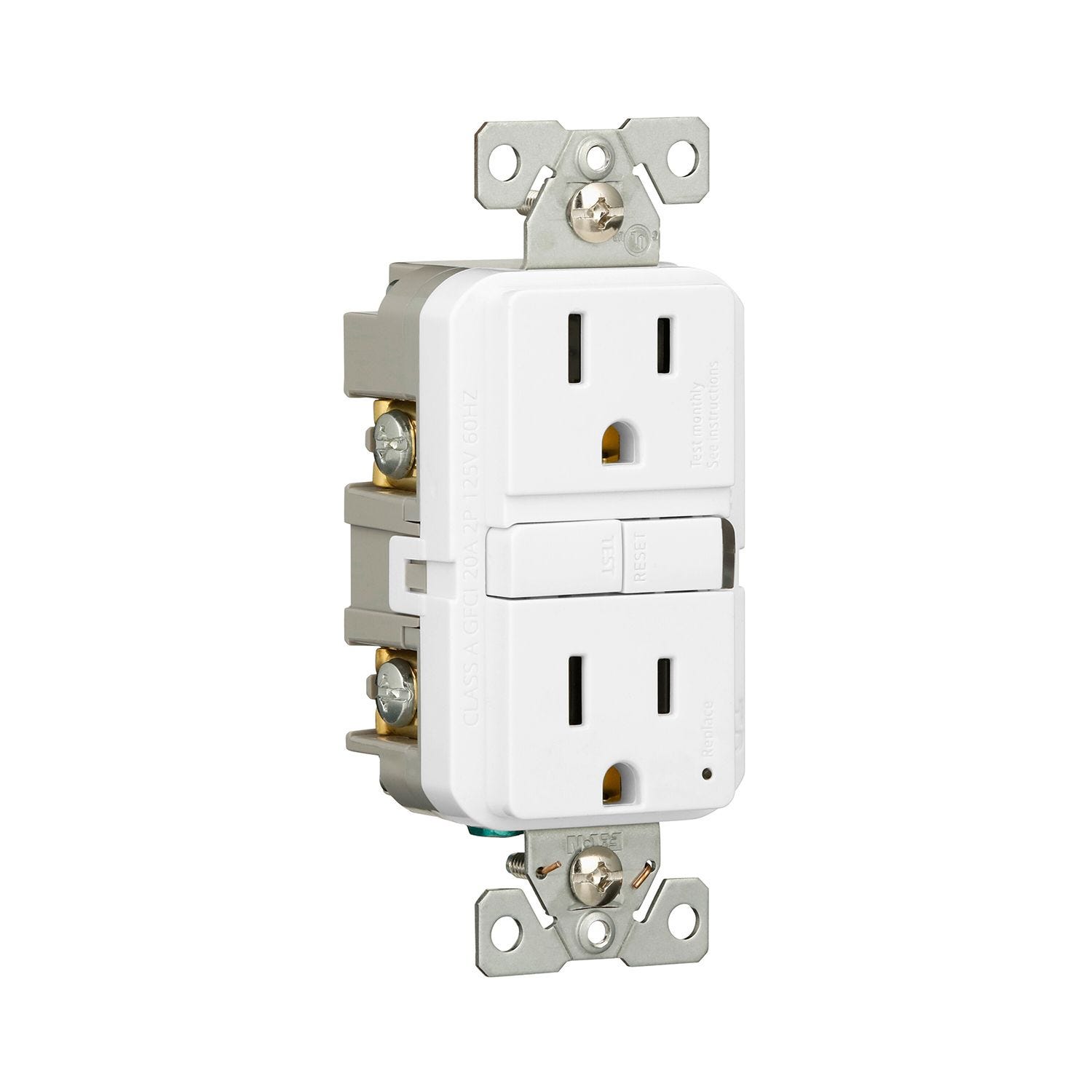

Weather Resistant Tamper Resistant GFCI 15AMP White
UPC
032664008108
Online Sku
1507299
Model Number
TWRGF15W-BX-L
$0.00
$33.99
Use Eaton outlets for indoor and outdoor residential purposes. Being weather resistant, it protects from rain, snow, ice and humidity. The GFCI tamper resistant outlet is made of corrosion resistant material.
- Slimmer design for easy installation| leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- Clean| modern industrial design with reduced top housing markings and neutral text direction on buttons
- Weather resistant GFCI receptacles are constructed with enhanced nylon and corrosion resistant metal components for use in outdoor applications
| Manufacturer's Warranty | 1-year limited warranty |
|---|---|
| Country of Origin | China |
| Assembled Width (in) | 1.69 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.03 |
| Assembled Weight (lb) | 0.32 |
| Temperature Rating (C) | -35 to 66 |
| GFCI | Yes |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 15 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | Commercial |
| Trip Time (sec) | 0.02 |
| Type of Mounting | Electrical Box/Flush |
| Short Circuit Rating | 10 Kilo-Amp |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex GFCI |
Overview
Use Eaton outlets for indoor and outdoor residential purposes. Being weather resistant, it protects from rain, snow, ice and humidity. The GFCI tamper resistant outlet is made of corrosion resistant material.
- Slimmer design for easy installation| leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- Clean| modern industrial design with reduced top housing markings and neutral text direction on buttons
- Weather resistant GFCI receptacles are constructed with enhanced nylon and corrosion resistant metal components for use in outdoor applications
Specifications
| Manufacturer's Warranty | 1-year limited warranty |
|---|---|
| Country of Origin | China |
| Assembled Width (in) | 1.69 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.03 |
| Assembled Weight (lb) | 0.32 |
| Temperature Rating (C) | -35 to 66 |
| GFCI | Yes |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 15 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | Commercial |
| Trip Time (sec) | 0.02 |
| Type of Mounting | Electrical Box/Flush |
| Short Circuit Rating | 10 Kilo-Amp |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex GFCI |
