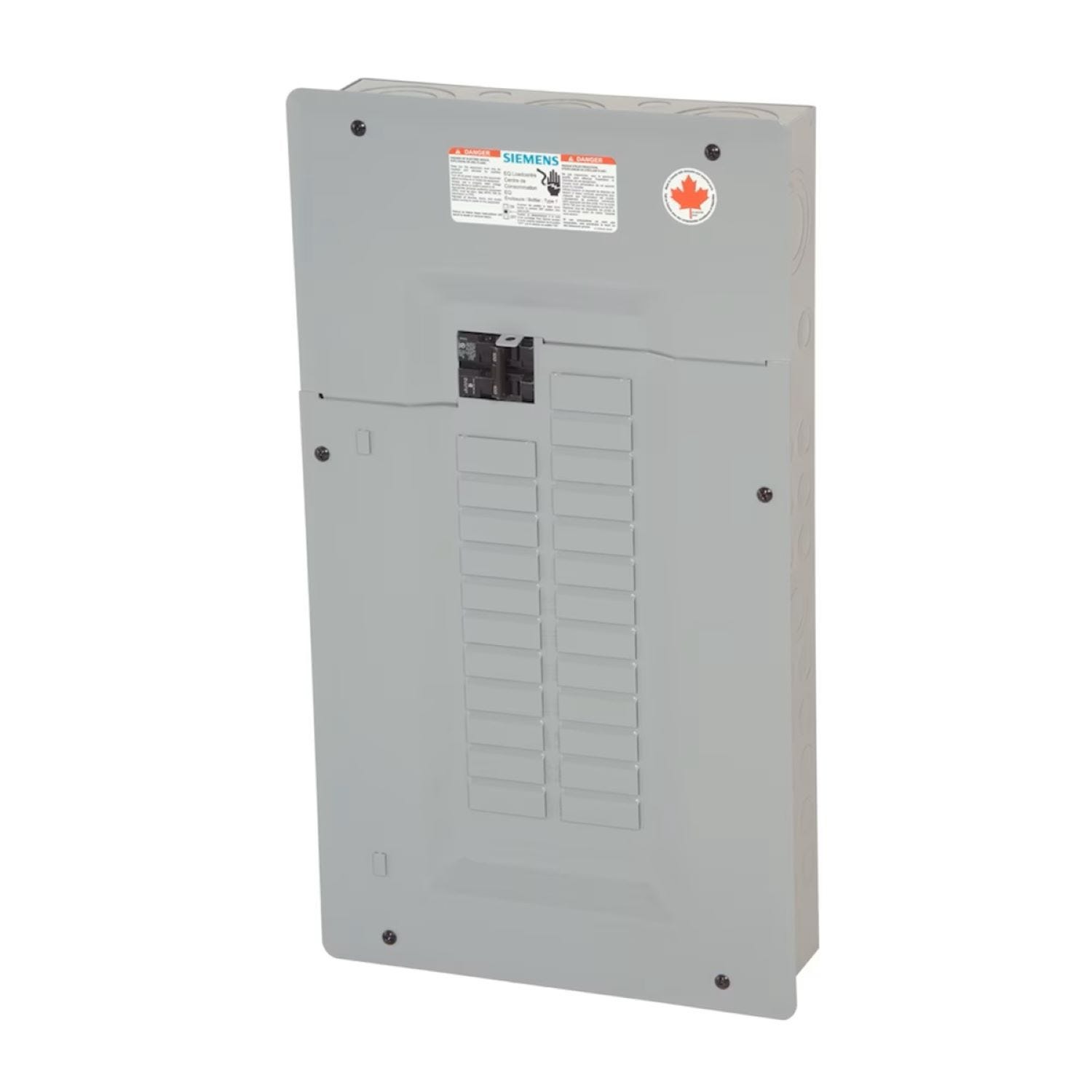

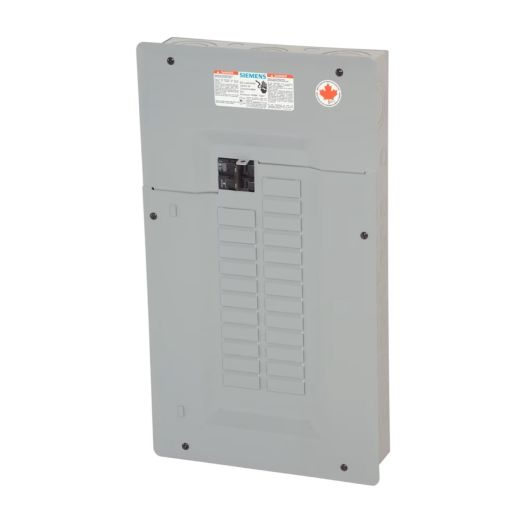

Volsite Electric Panel 100 A 24/48 Circuit 120/240 VAC
UPC
628123380085
Online Sku
1672399
Model Number
VP24100AF
$0.00
$785.99
Pay as low as
$32.75 /month
for
24 months
This amount does not include taxes, shipping and other fees.
Main breaker type load center with voltage rating of 120 - 240 V and current rating of 100 A. Made up of aluminum and copper (buss bar) and has 24/48 circuits. With combination mounting type, load center measures 26 1/4" in height and 14.88" in width and 4.63" in depth. Complete with a factory installed 100 A main breaker. A complete line of accessories give load centers the flexibility to meet application requirements. Any combination of full and half module plug-in breakers can be added to fulfill individual needs or free up space as required.
- 24 Circuits Expandable To 48
- Comes W/ Siemens Branch Circuit Breakers - 6 x Q115, 2 x Q120, 2 x Q215, 1 x Q230, 1 x Q240, 2 x QA115AFCCSA
- Powered by Siemens Service Entrance Loadcentre with 100A (22KA) Factory Installed Main Breaker
- Combo Flush or Surface Mount Trim
- Colour - Grey
| Country of Origin | Canada |
|---|---|
| Material | Steel |
| Assembled Width (in) | 16.14 |
| Assembled Height (in) | 4.72 |
| Assembled Depth (in) | 26.38 |
| Assembled Weight (lb) | 25 |
| Voltage Rating | 120/240 Volt AC |
| Amperage Rating | 100 Amp |
| Shape | Rectangular |
Overview
Main breaker type load center with voltage rating of 120 - 240 V and current rating of 100 A. Made up of aluminum and copper (buss bar) and has 24/48 circuits. With combination mounting type, load center measures 26 1/4" in height and 14.88" in width and 4.63" in depth. Complete with a factory installed 100 A main breaker. A complete line of accessories give load centers the flexibility to meet application requirements. Any combination of full and half module plug-in breakers can be added to fulfill individual needs or free up space as required.
- 24 Circuits Expandable To 48
- Comes W/ Siemens Branch Circuit Breakers - 6 x Q115, 2 x Q120, 2 x Q215, 1 x Q230, 1 x Q240, 2 x QA115AFCCSA
- Powered by Siemens Service Entrance Loadcentre with 100A (22KA) Factory Installed Main Breaker
- Combo Flush or Surface Mount Trim
- Colour - Grey
Specifications
| Country of Origin | Canada |
|---|---|
| Material | Steel |
| Assembled Width (in) | 16.14 |
| Assembled Height (in) | 4.72 |
| Assembled Depth (in) | 26.38 |
| Assembled Weight (lb) | 25 |
| Voltage Rating | 120/240 Volt AC |
| Amperage Rating | 100 Amp |
| Shape | Rectangular |
