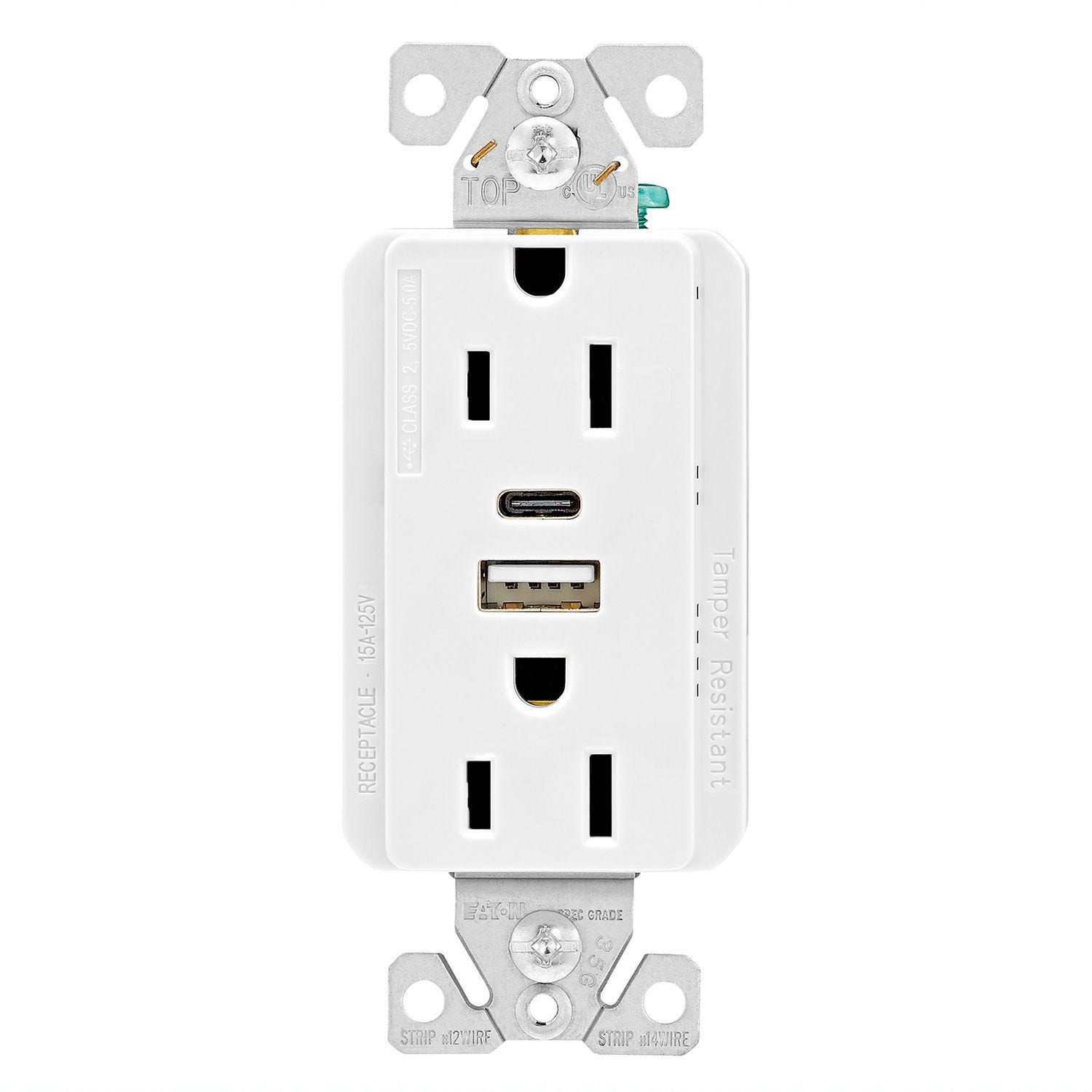

USB Type AC Duplex Receptacle 15A White
UPC
032664016639
Online Sku
1514676
Model Number
TRUSBAC15W-KB-L
$0.00
$42.99
Eaton’s USB A&C duplex receptacle is an all-in-one convenient fast charging solution for both Type A and C electrical devices in residential and commercial environments. The USB A&C duplex receptacle eliminates clutter by presenting adapter-free charging for compatible electronic devices, while enabling simultaneous charging of up to two devices rated at 5A charging capability. The Type-C port features the ability to deliver optimized charge by recognizing the requirements of attached electronic devices. The product allows for easy installation by leveraging Eaton’s convenient patented built-in wire strippers. Designed to be child-safe, the receptacle has tamper-resistant shutters that
comply with 2014 NEC® Article 406.12.
- Standard AC receptacle with USB and USB-C ports rated at a combined 5.0A
- Tamper resistant
- 5A charging
- Replaces a standard duplex receptacle
- Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
| Manufacturer's Warranty | 1 Year |
|---|---|
| Country of Origin | China |
| Assembled Width (in) | 1.5 |
| Assembled Height (in) | 4.2 |
| Assembled Depth (in) | 1.4 |
| Assembled Weight (lb) | 0.49 |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 15 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | General Duty |
| Type of Mounting | Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Combination |
Overview
Eaton’s USB A&C duplex receptacle is an all-in-one convenient fast charging solution for both Type A and C electrical devices in residential and commercial environments. The USB A&C duplex receptacle eliminates clutter by presenting adapter-free charging for compatible electronic devices, while enabling simultaneous charging of up to two devices rated at 5A charging capability. The Type-C port features the ability to deliver optimized charge by recognizing the requirements of attached electronic devices. The product allows for easy installation by leveraging Eaton’s convenient patented built-in wire strippers. Designed to be child-safe, the receptacle has tamper-resistant shutters that
comply with 2014 NEC® Article 406.12.
- Standard AC receptacle with USB and USB-C ports rated at a combined 5.0A
- Tamper resistant
- 5A charging
- Replaces a standard duplex receptacle
- Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
Specifications
| Manufacturer's Warranty | 1 Year |
|---|---|
| Country of Origin | China |
| Assembled Width (in) | 1.5 |
| Assembled Height (in) | 4.2 |
| Assembled Depth (in) | 1.4 |
| Assembled Weight (lb) | 0.49 |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 15 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | General Duty |
| Type of Mounting | Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Combination |
