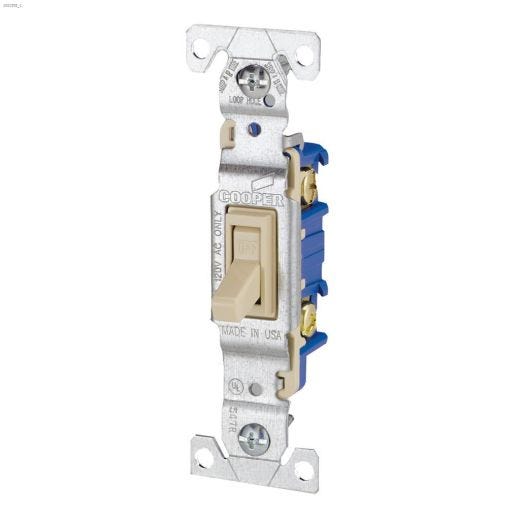

Toggle Switch 15A 120V 1P
Only %1 left
Online Sku
1021508
$0.00
Starting at
$1.79
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at
1-Pole Non-grounding toggle switch features industrial design cam action mechanism, which assures reliable and quiet switch action. It has longer and wider strap, which renders 40% more contact area to wall board while eliminating floating installations virtually. Residential grade switch has polycarbonate housing and thermoplastic, PVC toggle for longer endurance. An unbreakable top as well bottom housing efficiently phase out call-backs that is caused by job site breakage. It measures 1.3 in x 1.103 in x 3.76 in. Push-in terminal of switch is designed to accept #14 solid wire while side wire terminals accept up to #10 solid or stranded wire. It is rated at 15 Amps and 120 VAC. The patented built‑in wire strippers and wire looping helps for quick and easy installation. Toggle switch is UL, cULus listed, NAFTA compliant, RoHS compliant and meets Federal Specification/NOM standards.
- 3-way Switches feature additional push-in common termination for feed-through tapping
- Push-in terminals accept #14 AWG solid wire only; side wire terminals accept up to #10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Patented built-in wire looper for pre-looping
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Lighted toggle glows in "OFF" position
- Standards: UL/cULus listed, NOM 426, NAFTA/RoHS compliant
| Assembled Width (in) | 1.3 |
|---|---|
| Assembled Height (in) | 3.76 |
| Assembled Depth (in) | 1.1 |
| Voltage Rating | 120 Volt AC |
| Amperage Rating | 15 Amp |
| Number of Poles | 1 |
Overview
1-Pole Non-grounding toggle switch features industrial design cam action mechanism, which assures reliable and quiet switch action. It has longer and wider strap, which renders 40% more contact area to wall board while eliminating floating installations virtually. Residential grade switch has polycarbonate housing and thermoplastic, PVC toggle for longer endurance. An unbreakable top as well bottom housing efficiently phase out call-backs that is caused by job site breakage. It measures 1.3 in x 1.103 in x 3.76 in. Push-in terminal of switch is designed to accept #14 solid wire while side wire terminals accept up to #10 solid or stranded wire. It is rated at 15 Amps and 120 VAC. The patented built‑in wire strippers and wire looping helps for quick and easy installation. Toggle switch is UL, cULus listed, NAFTA compliant, RoHS compliant and meets Federal Specification/NOM standards.
- 3-way Switches feature additional push-in common termination for feed-through tapping
- Push-in terminals accept #14 AWG solid wire only; side wire terminals accept up to #10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Patented built-in wire looper for pre-looping
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Lighted toggle glows in "OFF" position
- Standards: UL/cULus listed, NOM 426, NAFTA/RoHS compliant
Specifications
| Assembled Width (in) | 1.3 |
|---|---|
| Assembled Height (in) | 3.76 |
| Assembled Depth (in) | 1.1 |
| Voltage Rating | 120 Volt AC |
| Amperage Rating | 15 Amp |
| Number of Poles | 1 |
