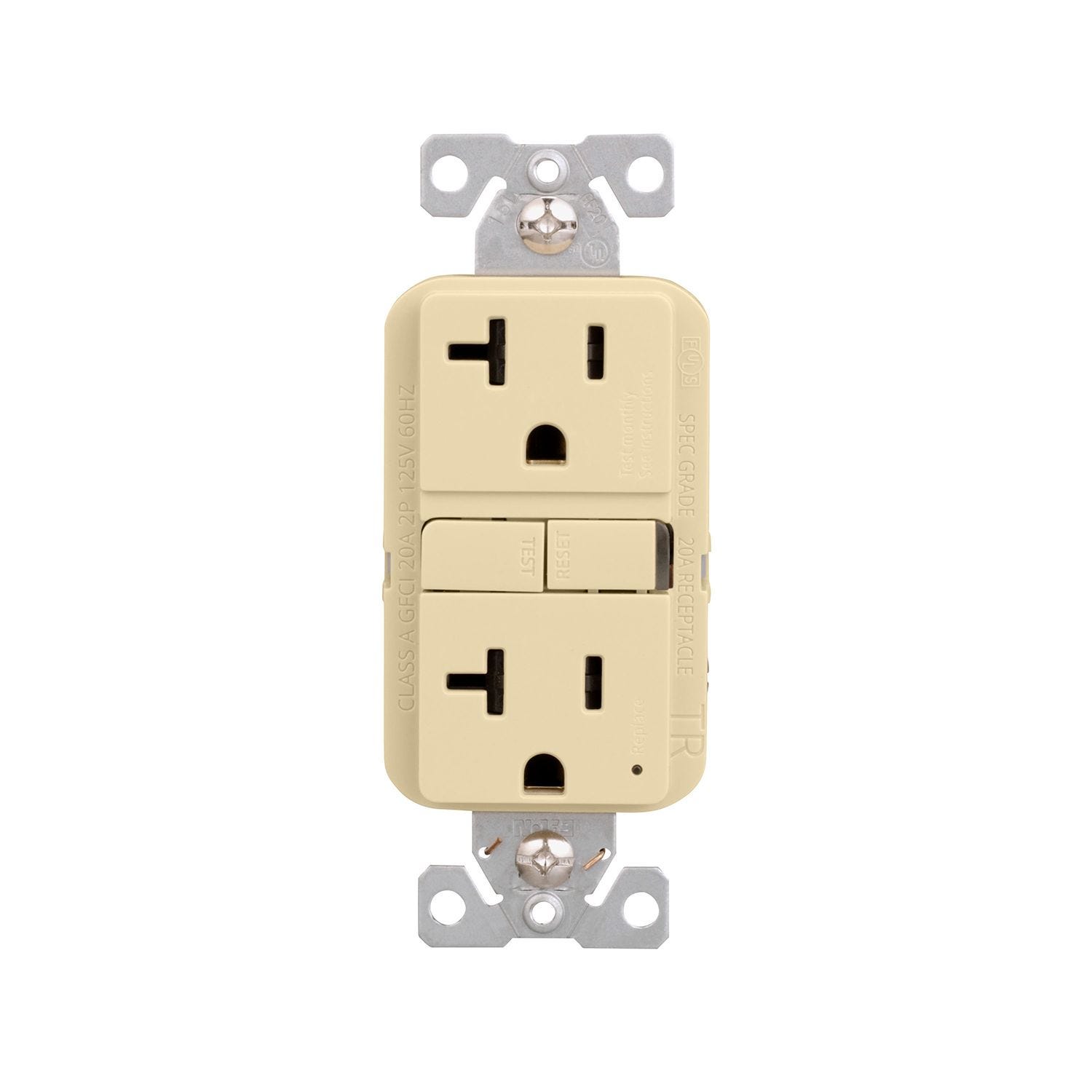

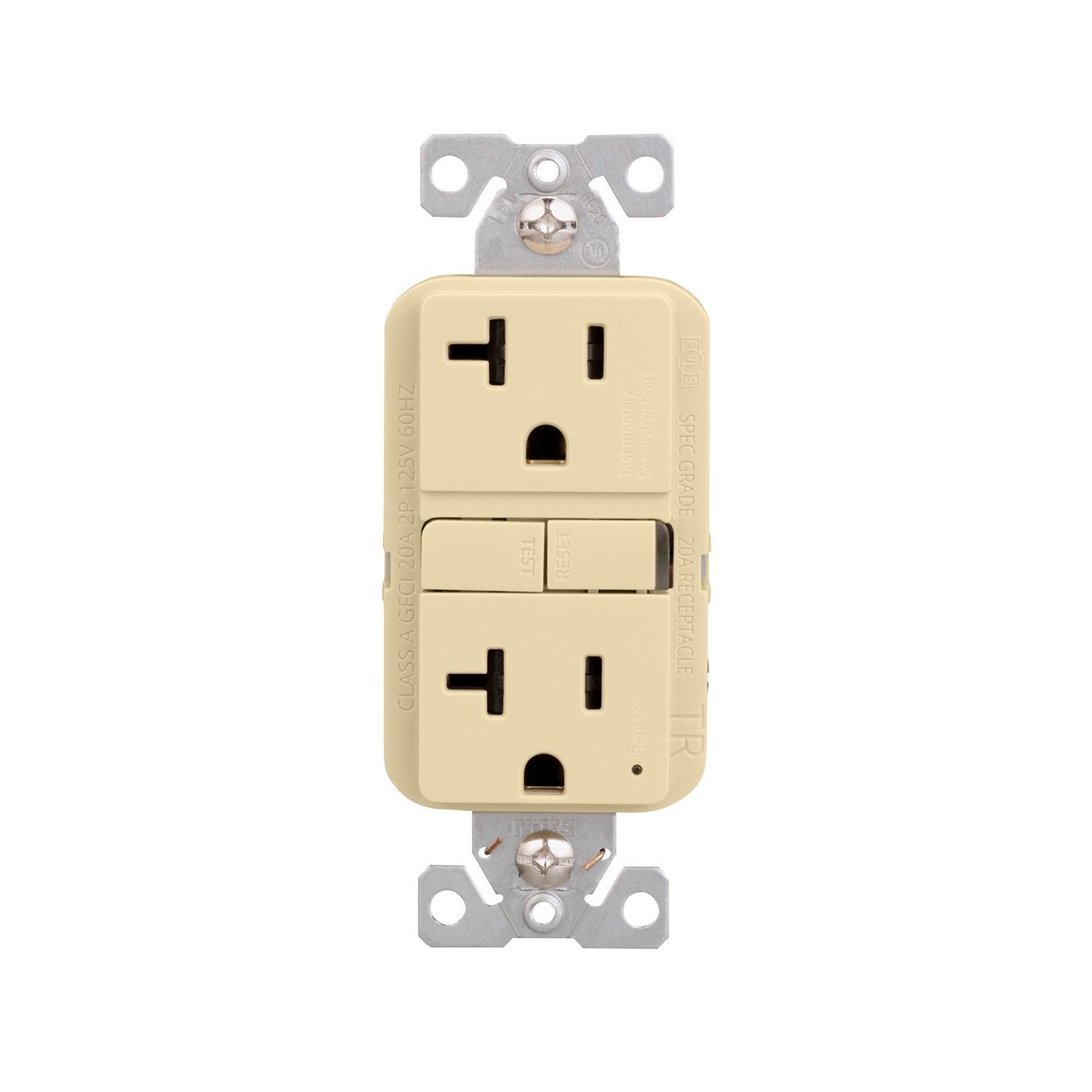

Tamper Resistant GFCI 20AMP
Only %1 left
Online Sku
1507434
$0.00
Starting at
$35.99
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at
Use a TR GFCI duplex receptacle for residential and commercial wiring. It protects the house wiring from overheating and overpowering. GFCI receptacles sit more flush with the wall plate for a pleasing aesthetic.
- Slimmer design for easy installation| leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- Clean| modern industrial design with reduced top housing markings and neutral text direction on buttons
| Manufacturer's Warranty | 1-Year Limited Warranty |
|---|---|
| Country of Origin | China |
| Assembled Width (in) | 1.69 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.03 |
| Assembled Weight (lb) | 0.32 |
| Temperature Rating (C) | -35 to 66 |
| GFCI | Yes |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 20 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | Commercial |
| Trip Time (sec) | 0.02 |
| Type of Mounting | Electrical Box/Flush |
| Short Circuit Rating | 10 Kilo-Amp |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex GFCI |
Overview
Use a TR GFCI duplex receptacle for residential and commercial wiring. It protects the house wiring from overheating and overpowering. GFCI receptacles sit more flush with the wall plate for a pleasing aesthetic.
- Slimmer design for easy installation| leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- Clean| modern industrial design with reduced top housing markings and neutral text direction on buttons
Specifications
| Manufacturer's Warranty | 1-Year Limited Warranty |
|---|---|
| Country of Origin | China |
| Assembled Width (in) | 1.69 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.03 |
| Assembled Weight (lb) | 0.32 |
| Temperature Rating (C) | -35 to 66 |
| GFCI | Yes |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 20 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | Commercial |
| Trip Time (sec) | 0.02 |
| Type of Mounting | Electrical Box/Flush |
| Short Circuit Rating | 10 Kilo-Amp |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex GFCI |
