Siemens 4/8 Circuit 125A 240V Outdoor Loadcentres
UPC
783643123892
Online Sku
1672405
Model Number
W0408ML1125
$0.00
$149.99

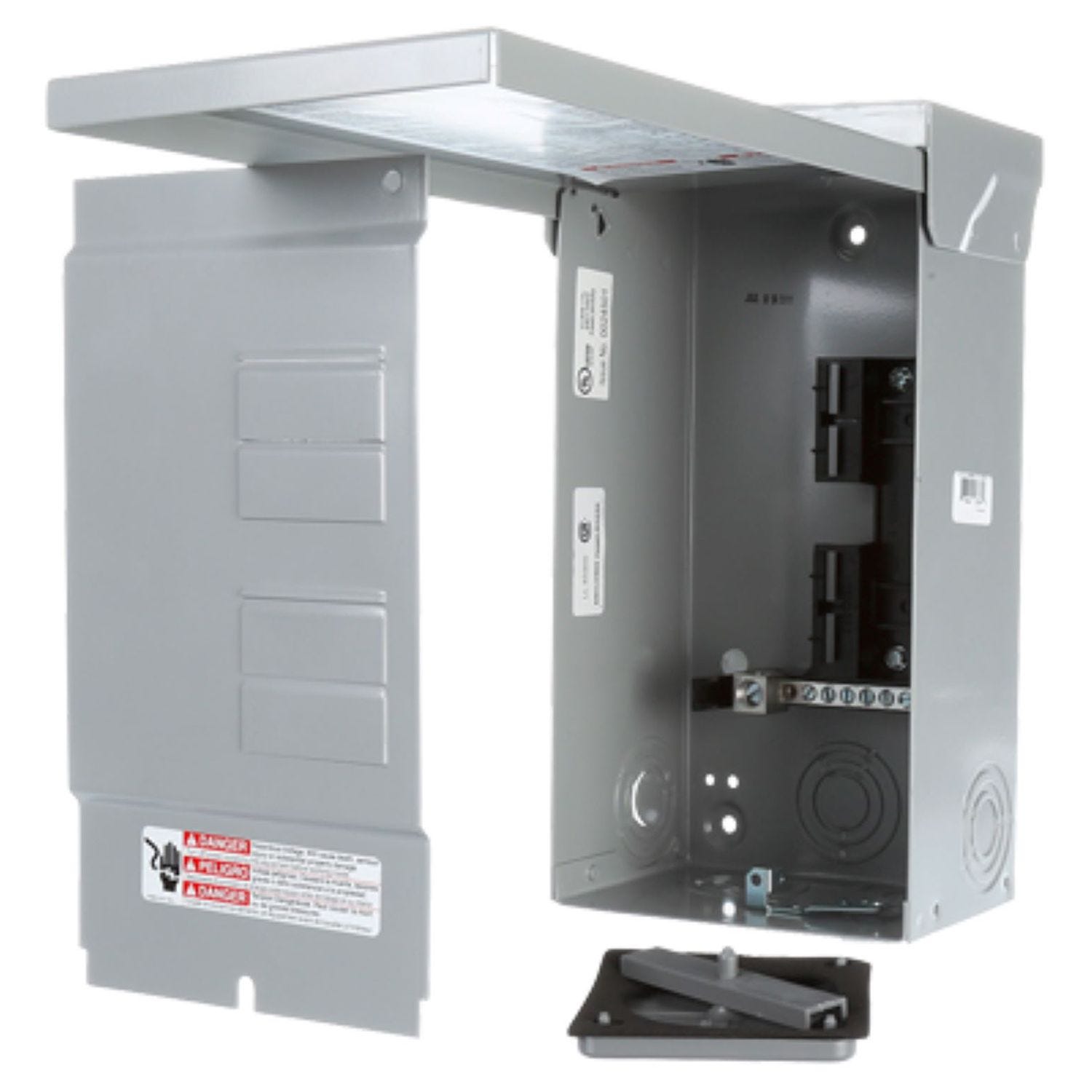

The Siemens 4/8 Circuit 125A 240V Outdoor Loadcentre is a versatile 125A outdoor sub-panel, known as the W0408ML1125 spa panel. It features a 3R enclosure, operates at 120/240V with 1 phase and 3 wires, and accommodates both single and double pole breakers. This spa panel handles 4 individual circuits, expandable to 8, making it ideal for additional circuits for lights, waterfalls, and more.
- 4 Circuits expandable to 8
- 3R Enclosure
- Patented insta-wire neutrals and ground bars allow for faster installation, screws are backed out and ready for wire insertion
- 1 Phase 3 wire
| Country of Origin | Mexico |
|---|---|
| Material | Steel |
| Assembled Width (in) | 12.25 |
| Assembled Height (in) | 14.5 |
| Assembled Depth (in) | 4.25 |
| Assembled Weight (lb) | 9 |
| Voltage Rating | 120/240 Volt AC |
| Amperage Rating | 125 Amp |
| Shape | Rectangular |
Overview
The Siemens 4/8 Circuit 125A 240V Outdoor Loadcentre is a versatile 125A outdoor sub-panel, known as the W0408ML1125 spa panel. It features a 3R enclosure, operates at 120/240V with 1 phase and 3 wires, and accommodates both single and double pole breakers. This spa panel handles 4 individual circuits, expandable to 8, making it ideal for additional circuits for lights, waterfalls, and more.
- 4 Circuits expandable to 8
- 3R Enclosure
- Patented insta-wire neutrals and ground bars allow for faster installation, screws are backed out and ready for wire insertion
- 1 Phase 3 wire
Specifications
| Country of Origin | Mexico |
|---|---|
| Material | Steel |
| Assembled Width (in) | 12.25 |
| Assembled Height (in) | 14.5 |
| Assembled Depth (in) | 4.25 |
| Assembled Weight (lb) | 9 |
| Voltage Rating | 120/240 Volt AC |
| Amperage Rating | 125 Amp |
| Shape | Rectangular |
