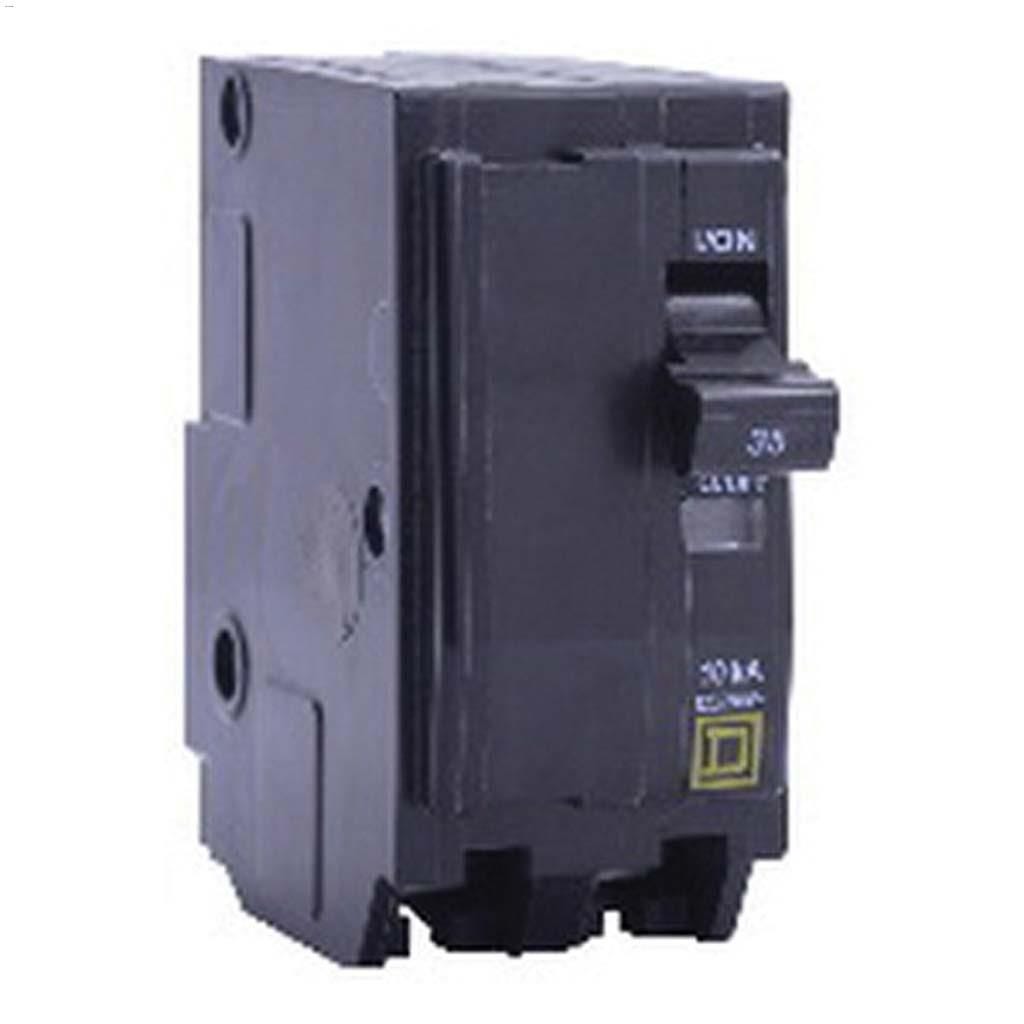

2 Pole Standard Plug-In Miniature Circuit Breaker
Only %1 left
Online Sku
1015654
$0.00
Starting at
$41.39
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at
Standard 2-Pole Miniature circuit breaker with Visi-Trip red indicator, has interrupt current rating of 10 kilo-Amps at 120/240 VAC and 5 kilo-Amps at 48 VDC. This 1-Phase circuit breaker accommodates aluminum/copper conductors of size 8 - 2 AWG. It measures 1-1/2 in x 2.91 in x 3.12 in. Circuit breaker with box lugs terminal connection, features thermal-magnetic trip protection. It supports plug-in mounting for making installation easier. This circuit breaker withstands temperature of 104 deg F. Circuit breaker is UL listed, CSA certified, HACR rated and RoHS compliant.
- Provides overload and short circuit protection
- Exclusive visi-trip red indicator
- HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers
- Accepts aluminum/copper conductors
- Can padlock breaker in ON or OFF position
- Slot/Robertson screws for wire termination
- Standards: HACR Rated, UL listed, CSA certified and RoHS compliant
| Assembled Width (in) | 1.5 |
|---|---|
| Assembled Height (in) | 3.12 |
| Assembled Depth (in) | 2.91 |
| Colour | Black |
| Wire Size | 8-2 AWG (Aluminum/Copper) |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 10 Kilo-Amp At 120/240 Volt AC, 5 Kilo-Amp At 48 Volt DC |
| Voltage Rating | 120/240 Volt AC, 48 Volt DC |
| Terminal Connection | Box Lug |
| Number of Poles | 2 |
Overview
Standard 2-Pole Miniature circuit breaker with Visi-Trip red indicator, has interrupt current rating of 10 kilo-Amps at 120/240 VAC and 5 kilo-Amps at 48 VDC. This 1-Phase circuit breaker accommodates aluminum/copper conductors of size 8 - 2 AWG. It measures 1-1/2 in x 2.91 in x 3.12 in. Circuit breaker with box lugs terminal connection, features thermal-magnetic trip protection. It supports plug-in mounting for making installation easier. This circuit breaker withstands temperature of 104 deg F. Circuit breaker is UL listed, CSA certified, HACR rated and RoHS compliant.
- Provides overload and short circuit protection
- Exclusive visi-trip red indicator
- HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers
- Accepts aluminum/copper conductors
- Can padlock breaker in ON or OFF position
- Slot/Robertson screws for wire termination
- Standards: HACR Rated, UL listed, CSA certified and RoHS compliant
Specifications
| Assembled Width (in) | 1.5 |
|---|---|
| Assembled Height (in) | 3.12 |
| Assembled Depth (in) | 2.91 |
| Colour | Black |
| Wire Size | 8-2 AWG (Aluminum/Copper) |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 10 Kilo-Amp At 120/240 Volt AC, 5 Kilo-Amp At 48 Volt DC |
| Voltage Rating | 120/240 Volt AC, 48 Volt DC |
| Terminal Connection | Box Lug |
| Number of Poles | 2 |
