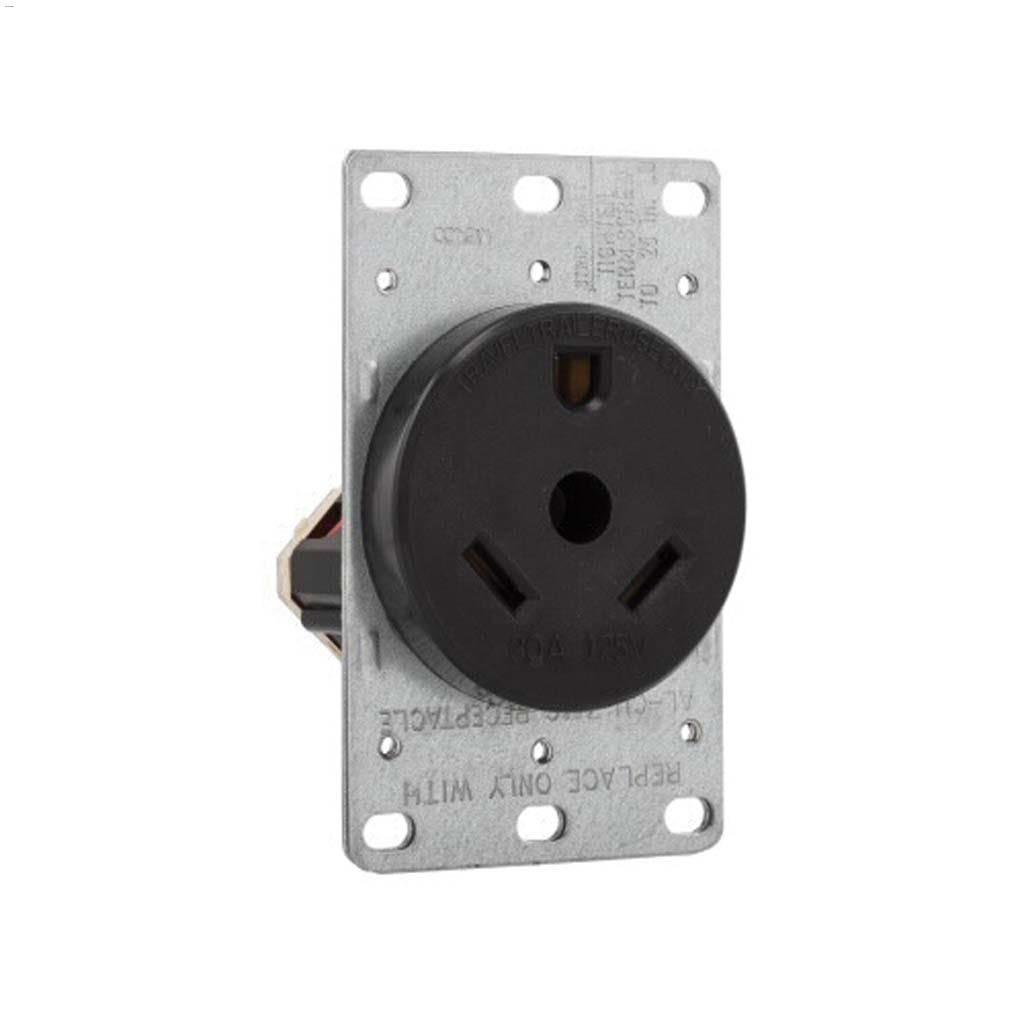

Power Receptacle 30A 2P/3W
UPC
032664307003
Online Sku
1019444
Model Number
AH1263BK-BOX
$0.00
$3.74
Power receptacle in brown colour, has voltage rating of 125 Volts and current rating of 30 Amps. The 2-Pole 3-Wire receptacle accommodates conductor of size 12 - 4 AWG. The TT-30R receptacle features back wired terminal connection. This receptacle is flush mountable. Power receptacle is UL listed, CSA certified and RoHS compliant.
- Standards: CSA certified| UL listed| RoHS compliant| NAFTA
| Assembled Width (in) | 2.94 |
|---|---|
| Assembled Height (in) | 2.25 |
| Assembled Depth (in) | 3.88 |
| Colour | Brown |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 30 Amp |
| Terminal Connection | Back Wire |
| Number of Poles | 2 |
| Durability | Commercial |
| Type of Mounting | Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA TT-30R |
- 6823295 Spec Download
Overview
Power receptacle in brown colour, has voltage rating of 125 Volts and current rating of 30 Amps. The 2-Pole 3-Wire receptacle accommodates conductor of size 12 - 4 AWG. The TT-30R receptacle features back wired terminal connection. This receptacle is flush mountable. Power receptacle is UL listed, CSA certified and RoHS compliant.
- Standards: CSA certified| UL listed| RoHS compliant| NAFTA
Specifications
| Assembled Width (in) | 2.94 |
|---|---|
| Assembled Height (in) | 2.25 |
| Assembled Depth (in) | 3.88 |
| Colour | Brown |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 30 Amp |
| Terminal Connection | Back Wire |
| Number of Poles | 2 |
| Durability | Commercial |
| Type of Mounting | Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA TT-30R |
Downloads
- 6823295 Spec Download
