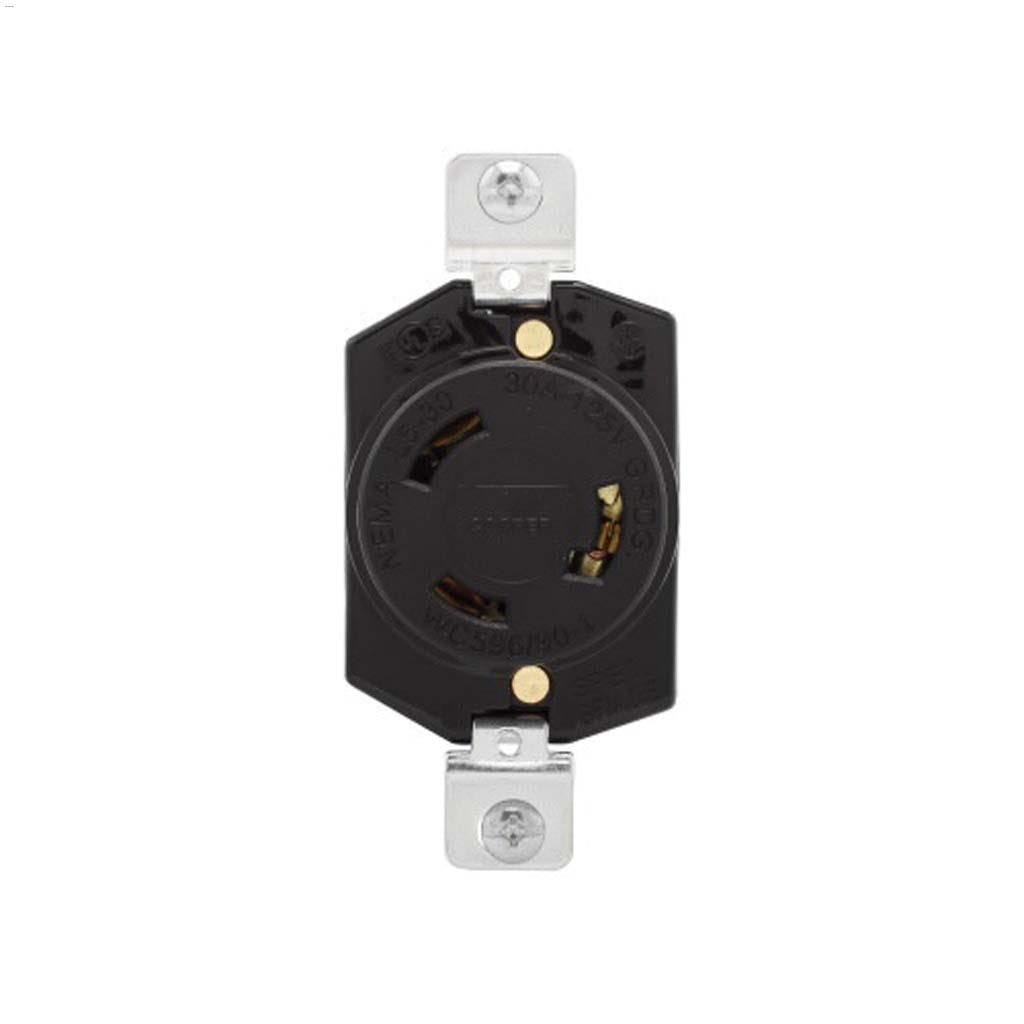

Locking Receptacle 30A 125V 2P/3W
UPC
032664417702
Online Sku
1019431
Model Number
L530R
$0.00
$31.49
This black locking receptacle is rated for 125 volts and 30 amps, making it a reliable choice for your electrical needs. Designed to handle conductor sizes ranging from 14 to 8 gauge, it features a convenient back terminal connection. Crafted from durable glass-filled nylon, it includes copper alloy contacts for enhanced performance. This outlet is built to endure temperatures from -40 to 85°C and boasts a strong voltage resistance of 3000 volts.
- Black colour
- Glass-filled nylon build
- Supports conductor size 14-8 gauge
- Temperature range: -40 to 85°C
- Voltage resistance: 3000 volts
| Assembled Width (in) | 1.71 |
|---|---|
| Assembled Height (in) | 1.46 |
| Assembled Depth (in) | 3.65 |
| Colour | Black |
| Temperature Rating (C) | -40 to 85 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 30 Amp |
| Terminal Connection | Back Wire |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA L5-30 |
| Dielectric Strength | 3000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
- 6823157 Spec Download
Overview
This black locking receptacle is rated for 125 volts and 30 amps, making it a reliable choice for your electrical needs. Designed to handle conductor sizes ranging from 14 to 8 gauge, it features a convenient back terminal connection. Crafted from durable glass-filled nylon, it includes copper alloy contacts for enhanced performance. This outlet is built to endure temperatures from -40 to 85°C and boasts a strong voltage resistance of 3000 volts.
- Black colour
- Glass-filled nylon build
- Supports conductor size 14-8 gauge
- Temperature range: -40 to 85°C
- Voltage resistance: 3000 volts
Specifications
| Assembled Width (in) | 1.71 |
|---|---|
| Assembled Height (in) | 1.46 |
| Assembled Depth (in) | 3.65 |
| Colour | Black |
| Temperature Rating (C) | -40 to 85 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 30 Amp |
| Terminal Connection | Back Wire |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA L5-30 |
| Dielectric Strength | 3000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
