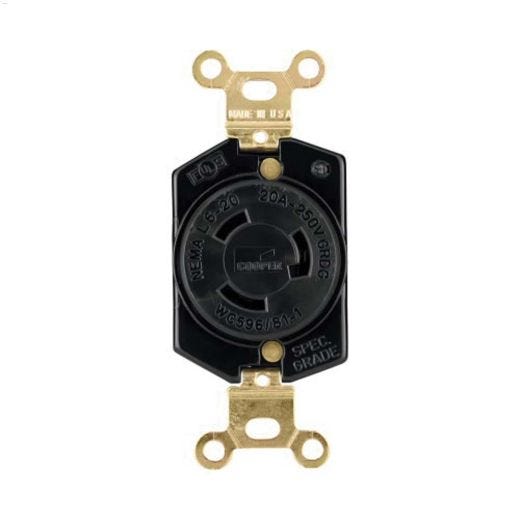

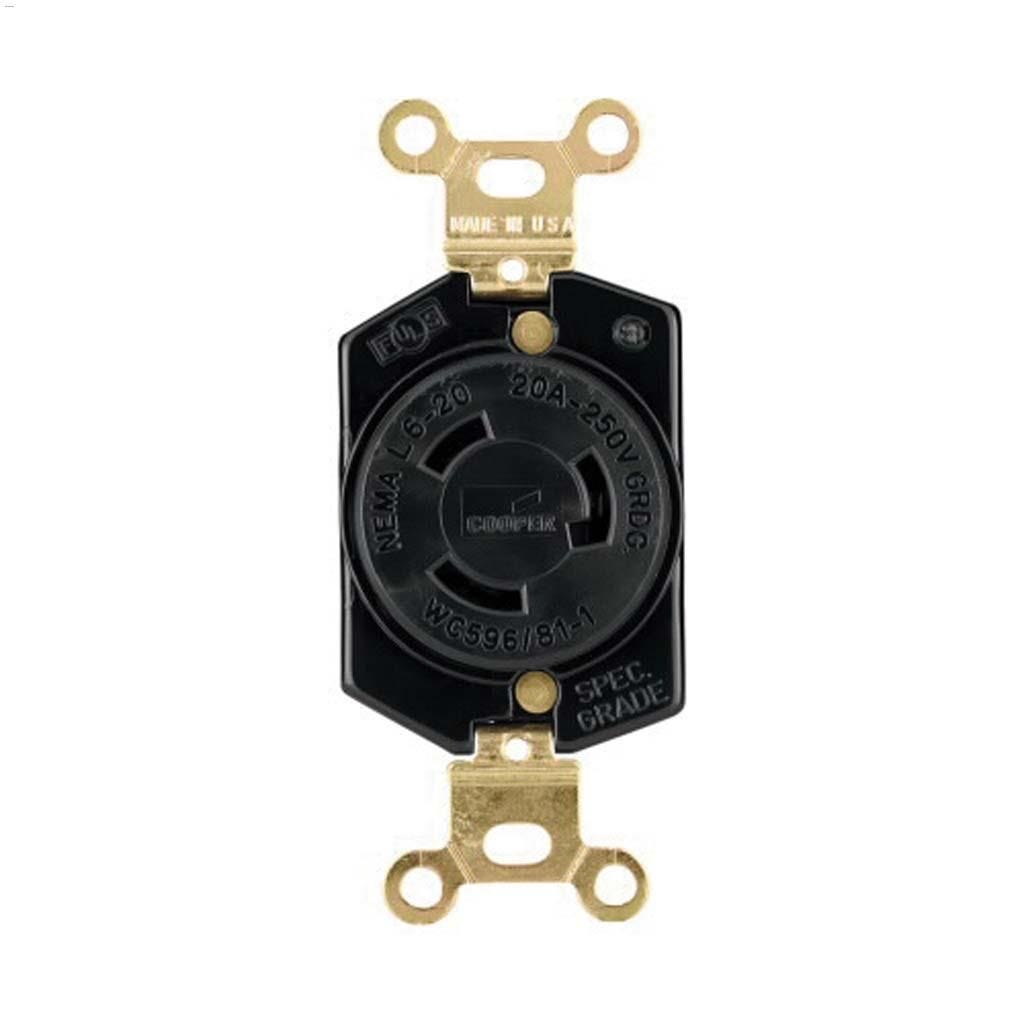

Locking Receptacle 20A 250V 2P/3W
UPC
032664417801
Online Sku
1019432
Model Number
L620R
$0.00
$37.99
This locking receptacle is crafted for robustness and efficiency, featuring a voltage capacity of 250 Volts and a current capacity of 20 Amps. It utilises a 2-Pole, 3-Wire configuration and supports conductor sizes from 14 to 8 gauge. The receptacle boasts a rear connection and is made from glass-filled nylon with copper alloy contacts free of rivets. This twist lock receptacle performs effectively within a temperature range of -40 to 85°C and handles an electrical strength of 3000 Volts. It is certified by CSA, ensuring a dependable power outlet for your requirements.
- Black colour
- Glass-filled nylon construction
- Rear connection
- CSA certified
| Assembled Width (in) | 1.79 |
|---|---|
| Assembled Height (in) | 1.41 |
| Assembled Depth (in) | 3.63 |
| Colour | Black |
| Temperature Rating (C) | -40 to 85 |
| GFCI | No |
| Voltage Rating | 250 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Back Wire |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA L6-20 |
| Dielectric Strength | 3000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
- 6823163 Spec Download
Overview
This locking receptacle is crafted for robustness and efficiency, featuring a voltage capacity of 250 Volts and a current capacity of 20 Amps. It utilises a 2-Pole, 3-Wire configuration and supports conductor sizes from 14 to 8 gauge. The receptacle boasts a rear connection and is made from glass-filled nylon with copper alloy contacts free of rivets. This twist lock receptacle performs effectively within a temperature range of -40 to 85°C and handles an electrical strength of 3000 Volts. It is certified by CSA, ensuring a dependable power outlet for your requirements.
- Black colour
- Glass-filled nylon construction
- Rear connection
- CSA certified
Specifications
| Assembled Width (in) | 1.79 |
|---|---|
| Assembled Height (in) | 1.41 |
| Assembled Depth (in) | 3.63 |
| Colour | Black |
| Temperature Rating (C) | -40 to 85 |
| GFCI | No |
| Voltage Rating | 250 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Back Wire |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA L6-20 |
| Dielectric Strength | 3000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
Downloads
- 6823163 Spec Download
