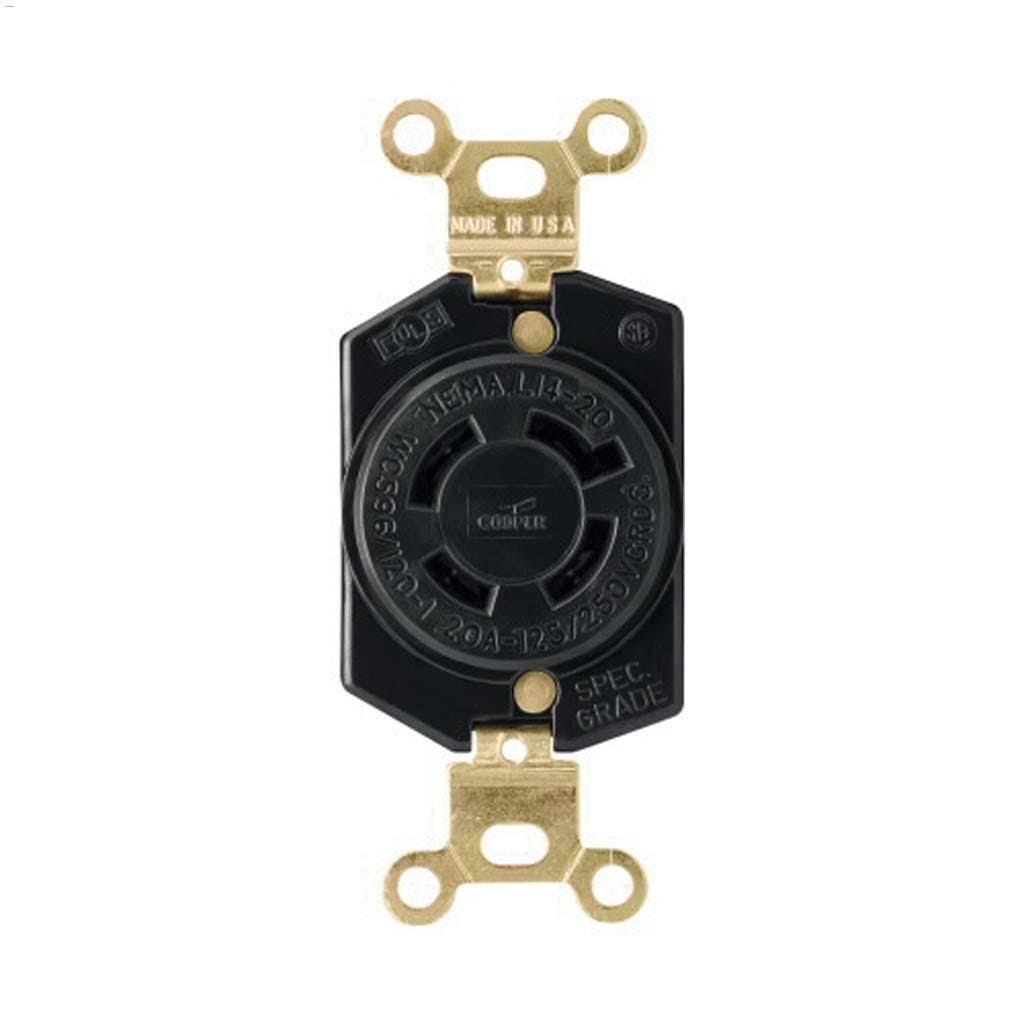

Locking Receptacle 20A 125/250V 3P/4W
UPC
032664427503
Online Sku
1019449
Model Number
L1420R
$0.00
Regular Price
$49.29
Special Price
$36.97
This lockable power connector is crafted for a voltage rating of 125/250 volts and a current rating of 20 amps. It is made from robust glass-filled nylon, ensuring durability and dependability. The unit accommodates a temperature range from -40 to 185°F and includes a back terminal connection for straightforward setup. Ideal for secure power connections, this twist-lock plug is suitable for a variety of energy applications.
- Supports wire conductor size 18-10
- Black colour
- Constructed from glass-filled nylon
- Back terminal connection for effortless setup
| Assembled Width (in) | 3.5 |
|---|---|
| Assembled Height (in) | 1.5 |
| Assembled Depth (in) | 6.5 |
| Colour | Black |
| Temperature Rating (C) | -40 to 85 |
| GFCI | No |
| Voltage Rating | 125/250 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Back Wire |
| Number of Poles | 3 |
| Number of Wires | 4 |
| NEMA Configuration | NEMA L14-20 |
| Dielectric Strength | 3000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
- 6823385 Spec Download
Overview
This lockable power connector is crafted for a voltage rating of 125/250 volts and a current rating of 20 amps. It is made from robust glass-filled nylon, ensuring durability and dependability. The unit accommodates a temperature range from -40 to 185°F and includes a back terminal connection for straightforward setup. Ideal for secure power connections, this twist-lock plug is suitable for a variety of energy applications.
- Supports wire conductor size 18-10
- Black colour
- Constructed from glass-filled nylon
- Back terminal connection for effortless setup
Specifications
| Assembled Width (in) | 3.5 |
|---|---|
| Assembled Height (in) | 1.5 |
| Assembled Depth (in) | 6.5 |
| Colour | Black |
| Temperature Rating (C) | -40 to 85 |
| GFCI | No |
| Voltage Rating | 125/250 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Back Wire |
| Number of Poles | 3 |
| Number of Wires | 4 |
| NEMA Configuration | NEMA L14-20 |
| Dielectric Strength | 3000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
Downloads
- 6823385 Spec Download
