Layton Passage Lever
Only %1 left
Online Sku
1010865
$0.00
Starting at
$35.29
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at

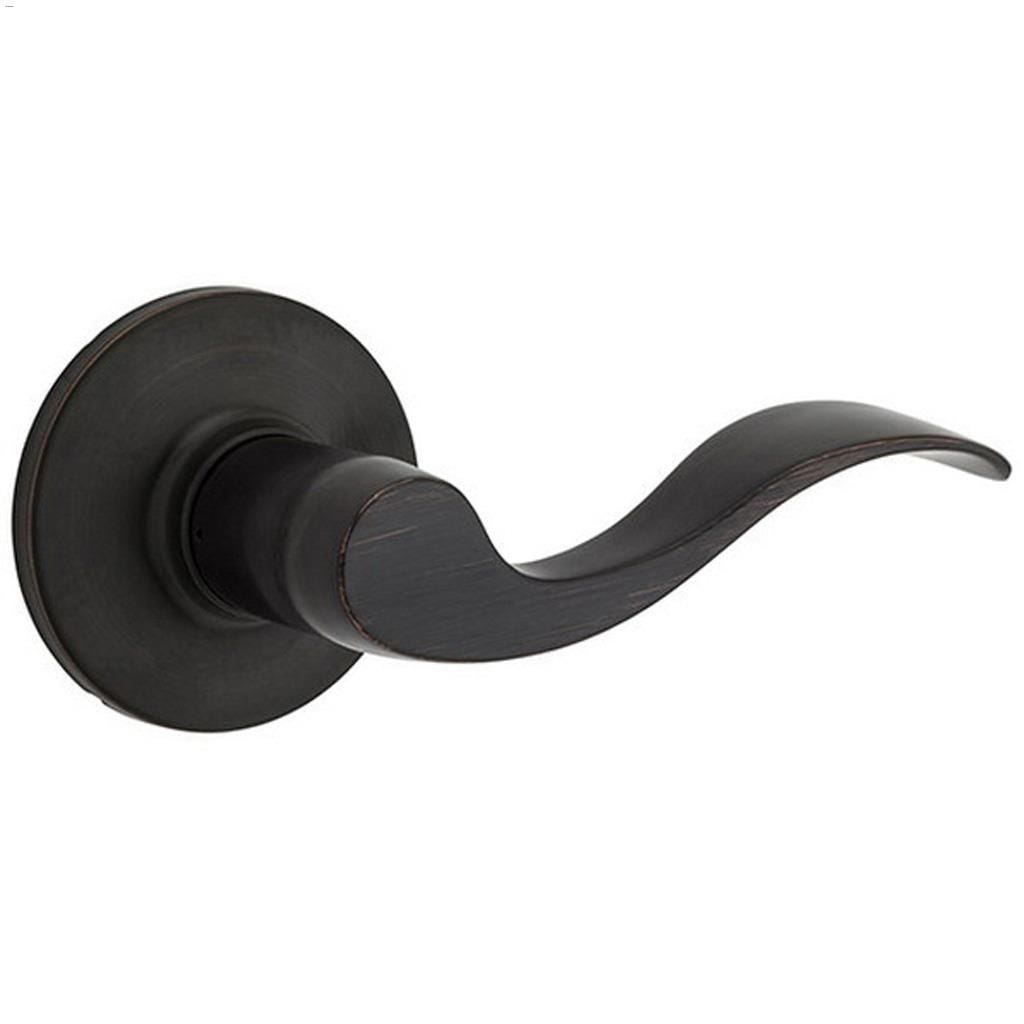

Update your house look and security by accenting this round rose style Layton lever. It features pin-and-tumbler type 5-pin kwikset keyway lock for added safety. It supports a door with 2-1/8 in cross bore, 1 in edge bore and 1 in x 2-1/4 in latch face. Lever accommodates 1 in x 2-1/4 in square corner or drive-in faceplate. It allows non-handed door handling. Lever incorporates passage/hall/closet function for multi purpose use. Lever meets ANSI/BHMA Grade 3, Deadbolt turnpiece, passage and inactive levers satisfy 4.13.9 ADA requirements.
- Cross bore 2-1/8 in, edge Bore 1 in Latch Face 1 in x 2-1/4 in
- Adjustable backset to 2-3/8 or 2-3/4 in
- 1-3/8 - 1-3/4 in Standard doors
- Pin and tumbler, 5-Pin Kwikset keyway
- 1 in x 2-1/4 in Square corner or drive-in faceplate
- Deadbolt: 1 in x 2-1/4 in, Other: 2-1/4 in full lip
- Deadbolt: 1 in throw, knob/lever 1/2 in throw
- Non-handed door handling
- Fits standard application
| Manufacturer's Warranty | Limited Lifetime Mechanical| 5 Years Finish |
|---|---|
| Collection | Layton |
| Function | Passage/Hall/Closet |
| Electronic | No |
| Style | Round Rose |
Overview
Update your house look and security by accenting this round rose style Layton lever. It features pin-and-tumbler type 5-pin kwikset keyway lock for added safety. It supports a door with 2-1/8 in cross bore, 1 in edge bore and 1 in x 2-1/4 in latch face. Lever accommodates 1 in x 2-1/4 in square corner or drive-in faceplate. It allows non-handed door handling. Lever incorporates passage/hall/closet function for multi purpose use. Lever meets ANSI/BHMA Grade 3, Deadbolt turnpiece, passage and inactive levers satisfy 4.13.9 ADA requirements.
- Cross bore 2-1/8 in, edge Bore 1 in Latch Face 1 in x 2-1/4 in
- Adjustable backset to 2-3/8 or 2-3/4 in
- 1-3/8 - 1-3/4 in Standard doors
- Pin and tumbler, 5-Pin Kwikset keyway
- 1 in x 2-1/4 in Square corner or drive-in faceplate
- Deadbolt: 1 in x 2-1/4 in, Other: 2-1/4 in full lip
- Deadbolt: 1 in throw, knob/lever 1/2 in throw
- Non-handed door handling
- Fits standard application
Specifications
| Manufacturer's Warranty | Limited Lifetime Mechanical| 5 Years Finish |
|---|---|
| Collection | Layton |
| Function | Passage/Hall/Closet |
| Electronic | No |
| Style | Round Rose |
