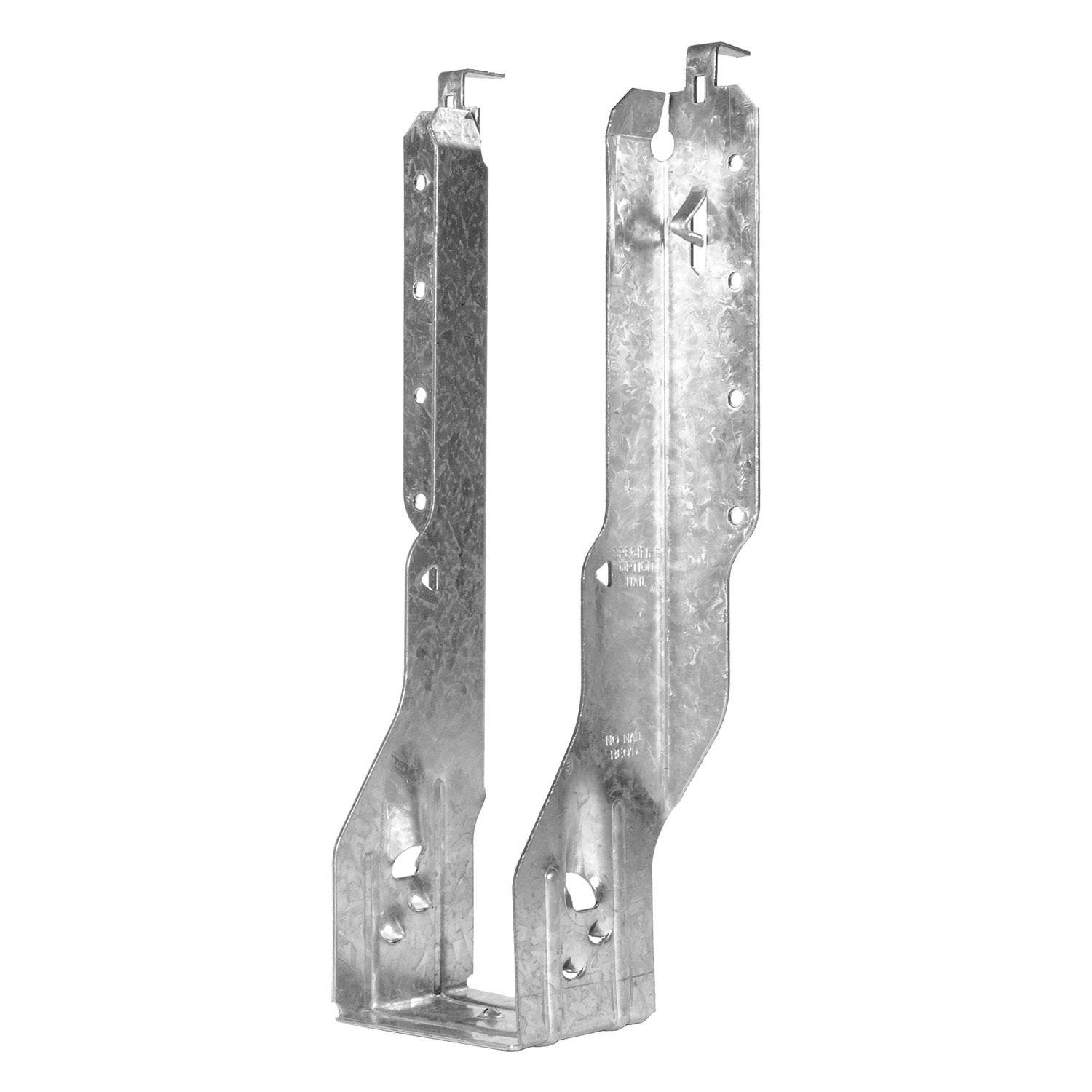

IUS Face-Mount Hanger For 1-3/4". x 11-7/8" Engineered Wood

UPC
044315709302
Online Sku
1052962
Model Number
IUS1.81/11.88
$0.00
$6.89
  • Ready to Deliver
  • 0 at
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable
  • Installation is fast with the Strong-Grip seat, easy-to-reach face nails and self-jigging locator tabs
  • Fasten hanger to header. Position I-joist into hanger and snap into place
  • Seat width: 1-7/8 in
  • Height: 11-7/8 in
  • Actual Joist Size: 1-3/4 in. x 11-7/8 in
  • Made from 18-gauge steel
  • Galvanized (G90) for extra corrosion resistance
Manufacturer's Warranty Limited
Material 18 Gauge Steel
Finish Galvanized
Assembled Width (in) 1.88
Assembled Height (in) 11.88
Assembled Depth (in) 2
Assembled Weight (lb) 0.68
Heavy Duty No
