Decora USB Charger 15A Receptacle Type-A-White
UPC
78477683859
Online Sku
1402801
Model Number
T5632-722
$0.00
$32.99

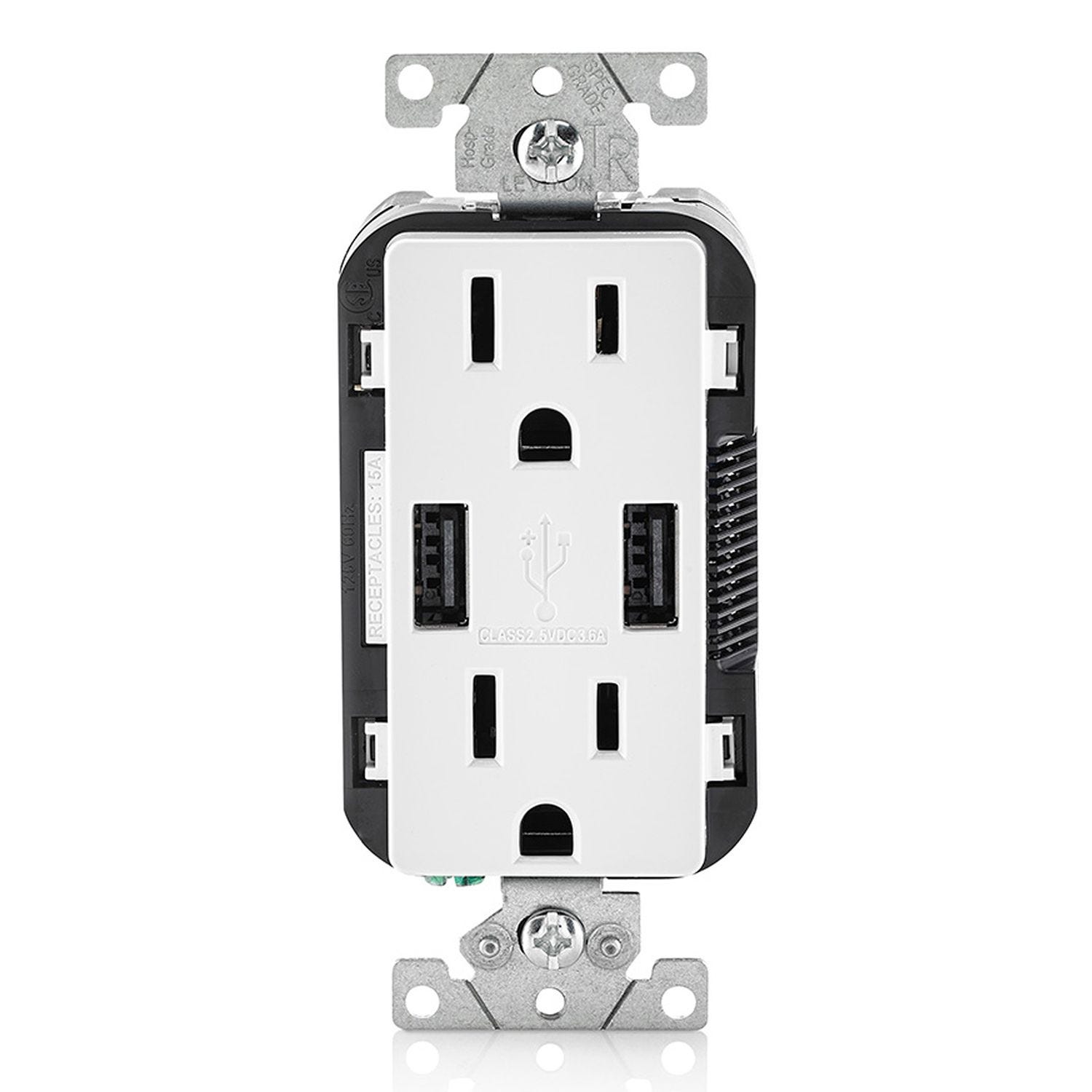

The Leviton USB charger/tamper-resistant duplex receptacle offers two high-powered USB Ports with 3.6A of charging power and two 15A or 20A/125V tamper-resistant receptacles. It has the capability to charge two USB powered electronic devices utilizing its two USB ports, leaving the two tamper-resistant receptacles free for other uses. The Leviton USB charger/tamper-resistant duplex receptacle is designed to charge tablets, smart and mobile phones, gaming devices, e-readers, digital cameras and a host of other electronic devices.
- 15 Amp, 125 Volt, Decora tamper-resistant receptacle, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB chargers. Grounding, side wired & back wired - white.
- Perfect for use in residential applications such as kitchens, bedrooms and home offices
| Manufacturer's Warranty | 2 Year Limited |
|---|---|
| Country of Origin | China |
| Assembled Width (in) | 1.5 |
| Assembled Height (in) | 4 |
| Assembled Depth (in) | 1.75 |
| Assembled Weight (lb) | 0.3 |
| Colour | White |
| Temperature Rating (C) | -10 to 40 |
| GFCI | No |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 15 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | (1) Single-Pole Switch, (1) 2-Pole Receptacle |
| Durability | Standard |
| Type of Mounting | Electrical Box/Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Environmental Conditions | V0 Flammability Rated Per UL94 |
| Style | Decora |
Overview
The Leviton USB charger/tamper-resistant duplex receptacle offers two high-powered USB Ports with 3.6A of charging power and two 15A or 20A/125V tamper-resistant receptacles. It has the capability to charge two USB powered electronic devices utilizing its two USB ports, leaving the two tamper-resistant receptacles free for other uses. The Leviton USB charger/tamper-resistant duplex receptacle is designed to charge tablets, smart and mobile phones, gaming devices, e-readers, digital cameras and a host of other electronic devices.
- 15 Amp, 125 Volt, Decora tamper-resistant receptacle, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB chargers. Grounding, side wired & back wired - white.
- Perfect for use in residential applications such as kitchens, bedrooms and home offices
Specifications
| Manufacturer's Warranty | 2 Year Limited |
|---|---|
| Country of Origin | China |
| Assembled Width (in) | 1.5 |
| Assembled Height (in) | 4 |
| Assembled Depth (in) | 1.75 |
| Assembled Weight (lb) | 0.3 |
| Colour | White |
| Temperature Rating (C) | -10 to 40 |
| GFCI | No |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 15 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | (1) Single-Pole Switch, (1) 2-Pole Receptacle |
| Durability | Standard |
| Type of Mounting | Electrical Box/Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Environmental Conditions | V0 Flammability Rated Per UL94 |
| Style | Decora |
