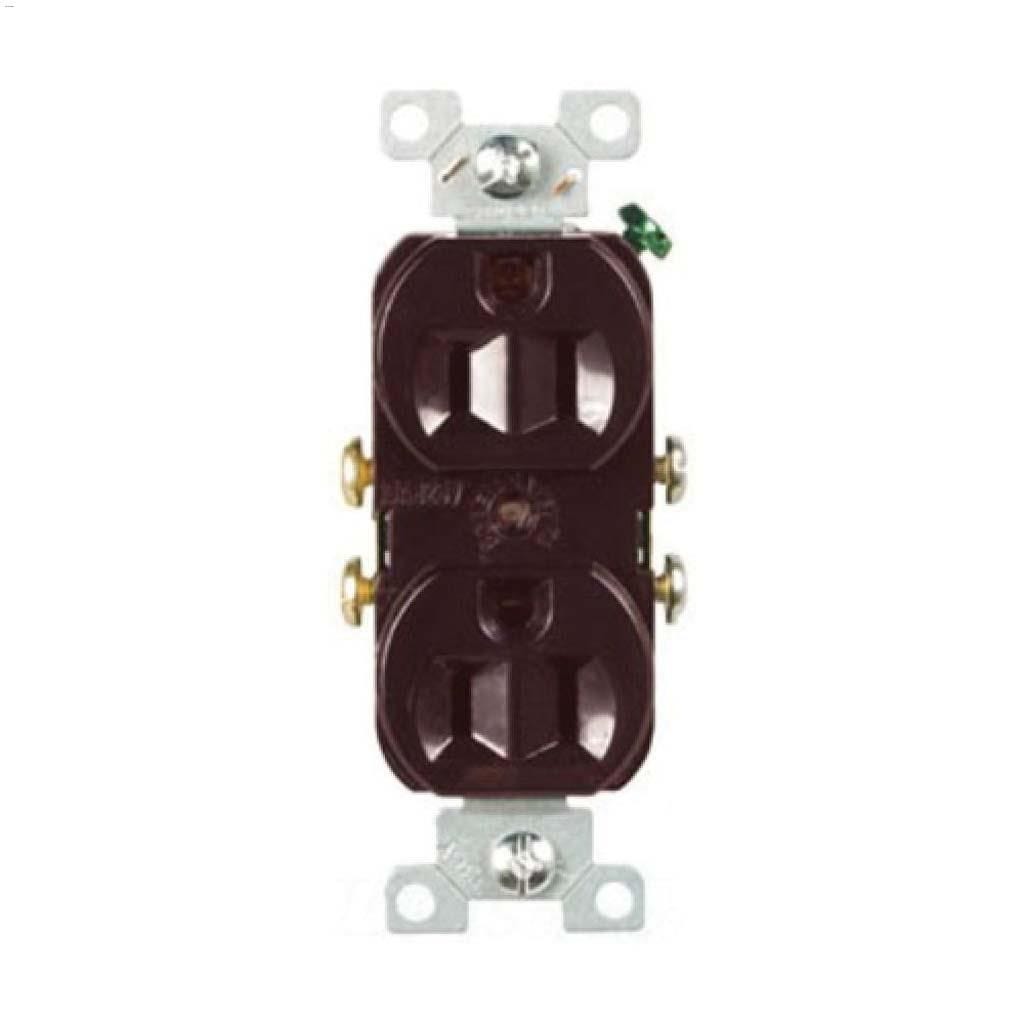

Brown Duplex Receptacle 15A 2P/3W
UPC
032664488900
Online Sku
1019436
Model Number
CR15B
$0.00
$5.79
The brown dual receptacle is designed for electrical setups with a voltage capacity of 125 volts and a current capacity of 15 amps. This dependable power outlet includes a 2-pole, 3-wire setup and is crafted to fit conductors ranging from size 14 to 10. The socket features a robust PVC structure and is safety-certified for assured performance. It is perfect for both home and business uses, offering ease and smooth installation.
- Dimensions: 4.19" x 1.124" x 0.82"
- Brown colour
- PVC structure
- Flush mountable with screw connection
- Automatic grounding feature
| Assembled Width (in) | 1.12 |
|---|---|
| Assembled Height (in) | 0.82 |
| Assembled Depth (in) | 4.19 |
| Colour | Brown |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 15 Amp |
| Number of Poles | 2 |
| Durability | Commercial |
| Type of Mounting | Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
Overview
The brown dual receptacle is designed for electrical setups with a voltage capacity of 125 volts and a current capacity of 15 amps. This dependable power outlet includes a 2-pole, 3-wire setup and is crafted to fit conductors ranging from size 14 to 10. The socket features a robust PVC structure and is safety-certified for assured performance. It is perfect for both home and business uses, offering ease and smooth installation.
- Dimensions: 4.19" x 1.124" x 0.82"
- Brown colour
- PVC structure
- Flush mountable with screw connection
- Automatic grounding feature
Specifications
| Assembled Width (in) | 1.12 |
|---|---|
| Assembled Height (in) | 0.82 |
| Assembled Depth (in) | 4.19 |
| Colour | Brown |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 15 Amp |
| Number of Poles | 2 |
| Durability | Commercial |
| Type of Mounting | Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
