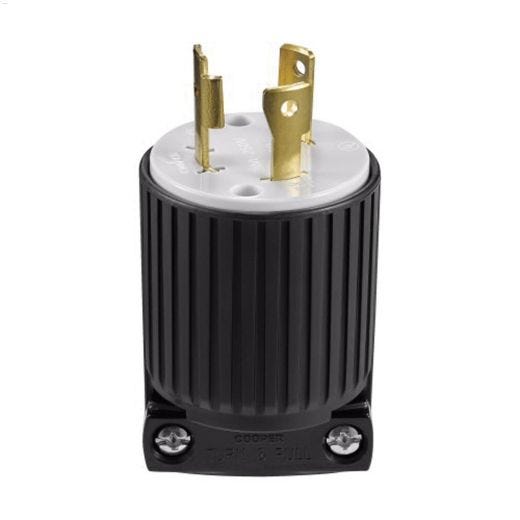

Black/White Locking Plug 30A 250V 2P/3W
UPC
032664393501
Online Sku
1023624
Model Number
L630P
$0.00
$47.99
2-Pole Locking plug in black/white colour, features rugged nylon construction. This 3-Wire plug is rated at 30 Amps and 250 Volts. Ultra grip designed plug measuring 2.02 in x 2.02 in x 3.79in, has cord diameter of 0.25 - 0.69in. Grounded plug with back wiring, allows wire of size #16 - 12 AWG. NEMA L6-30P rated plug operates at temperature range of -20 to 60 deg C. Locking plug is UL listed, NOM/CSA certified and RoHS compliant.
- Ultra grip design
- Standards: UL listed| NOM| CSA certified| RoHS compliant
| Assembled Width (in) | 2.02 |
|---|---|
| Assembled Height (in) | 3.79 |
| Assembled Depth (in) | 2.02 |
| Colour | Black, White |
| Wire Size | 16-12 AWG |
| Voltage Rating | 250 Volt |
| Amperage Rating | 30 Amp |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA L6-30P |
- 6823164 Spec Download
Overview
2-Pole Locking plug in black/white colour, features rugged nylon construction. This 3-Wire plug is rated at 30 Amps and 250 Volts. Ultra grip designed plug measuring 2.02 in x 2.02 in x 3.79in, has cord diameter of 0.25 - 0.69in. Grounded plug with back wiring, allows wire of size #16 - 12 AWG. NEMA L6-30P rated plug operates at temperature range of -20 to 60 deg C. Locking plug is UL listed, NOM/CSA certified and RoHS compliant.
- Ultra grip design
- Standards: UL listed| NOM| CSA certified| RoHS compliant
Specifications
| Assembled Width (in) | 2.02 |
|---|---|
| Assembled Height (in) | 3.79 |
| Assembled Depth (in) | 2.02 |
| Colour | Black, White |
| Wire Size | 16-12 AWG |
| Voltage Rating | 250 Volt |
| Amperage Rating | 30 Amp |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA L6-30P |
