Black/White Locking Plug 30A 125/250V 3P/4W
UPC
032664544859
Online Sku
1023638
Model Number
L1430P
$0.00
$44.99

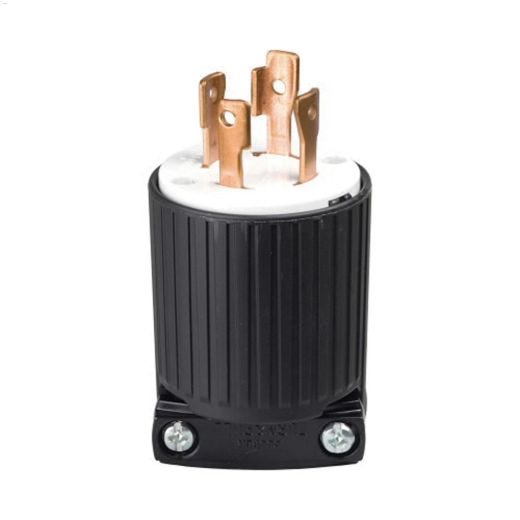

This 3-pole locking plug in black and white features durable nylon construction. The 4-wire connector is rated at 30 amps and 125/250 volts. It includes an enhanced grip design and is suitable for a cord diameter of 1/4" to 0.69". The plug operates within a temperature range of -20 to 60°C and is certified for safety and environmental standards. This power plug offers a twist-lock feature for secure connections, making it perfect for use with a generator.
- Dimensions: 1.74" x 1.81" x 3.52"
- Black and white colour
- Durable nylon material
- Supports wire size from number 16 to 12
- Warranty of 3 years
| Assembled Width (in) | 1.81 |
|---|---|
| Assembled Height (in) | 3.52 |
| Assembled Depth (in) | 1.74 |
| Colour | Black, White |
| Wire Size | 16-12 AWG |
| Voltage Rating | 125/250 Volt |
| Amperage Rating | 30 Amp |
| Number of Poles | 3 |
| Number of Wires | 4 |
| NEMA Configuration | NEMA L14-30P |
- 6823381 Spec Download
Overview
This 3-pole locking plug in black and white features durable nylon construction. The 4-wire connector is rated at 30 amps and 125/250 volts. It includes an enhanced grip design and is suitable for a cord diameter of 1/4" to 0.69". The plug operates within a temperature range of -20 to 60°C and is certified for safety and environmental standards. This power plug offers a twist-lock feature for secure connections, making it perfect for use with a generator.
- Dimensions: 1.74" x 1.81" x 3.52"
- Black and white colour
- Durable nylon material
- Supports wire size from number 16 to 12
- Warranty of 3 years
Specifications
| Assembled Width (in) | 1.81 |
|---|---|
| Assembled Height (in) | 3.52 |
| Assembled Depth (in) | 1.74 |
| Colour | Black, White |
| Wire Size | 16-12 AWG |
| Voltage Rating | 125/250 Volt |
| Amperage Rating | 30 Amp |
| Number of Poles | 3 |
| Number of Wires | 4 |
| NEMA Configuration | NEMA L14-30P |
Downloads
- 6823381 Spec Download
