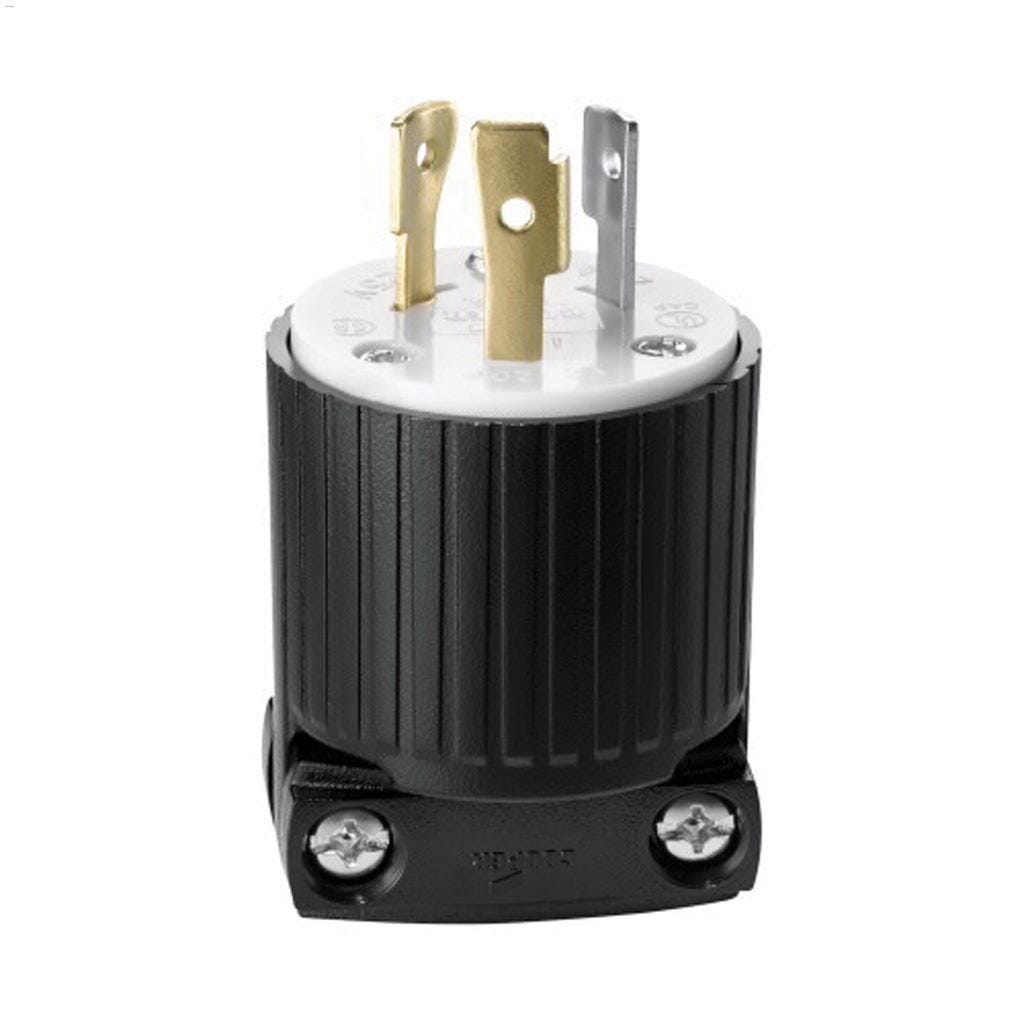

Black/White Locking Plug 20A 125V 2P/3W
UPC
032664391002
Online Sku
1023622
Model Number
L520P
$0.00
$19.69
The 2-Pole Locking Plug features a sleek black and white design, constructed with durable nylon for long-lasting performance. This connector is a three-wire plug rated at 20 amps and 125 volts, featuring a secure ultra-grip design for twist locking. It accommodates a cord diameter ranging from 1/4" to 0.69" and allows for convenient back wiring for wire sizes #16 - 12. It operates effectively within temperatures from -20 to 60°C and meets quality standards for safety and compliance.
- Dimensions: 3.13" x 1.79" x 1.81"
- Black and white finish
- Robust nylon material
- Supports back wiring for wire size #16-12
- Compliant with safety and environmental standards
| Assembled Width (in) | 1.79 |
|---|---|
| Assembled Height (in) | 1.81 |
| Assembled Depth (in) | 3.13 |
| Colour | Black, White |
| Wire Size | 16-12 AWG |
| Voltage Rating | 125 Volt |
| Amperage Rating | 20 Amp |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA L5-20P |
- 6823152 Spec Download
Overview
The 2-Pole Locking Plug features a sleek black and white design, constructed with durable nylon for long-lasting performance. This connector is a three-wire plug rated at 20 amps and 125 volts, featuring a secure ultra-grip design for twist locking. It accommodates a cord diameter ranging from 1/4" to 0.69" and allows for convenient back wiring for wire sizes #16 - 12. It operates effectively within temperatures from -20 to 60°C and meets quality standards for safety and compliance.
- Dimensions: 3.13" x 1.79" x 1.81"
- Black and white finish
- Robust nylon material
- Supports back wiring for wire size #16-12
- Compliant with safety and environmental standards
Specifications
| Assembled Width (in) | 1.79 |
|---|---|
| Assembled Height (in) | 1.81 |
| Assembled Depth (in) | 3.13 |
| Colour | Black, White |
| Wire Size | 16-12 AWG |
| Voltage Rating | 125 Volt |
| Amperage Rating | 20 Amp |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | NEMA L5-20P |
Downloads
- 6823152 Spec Download
