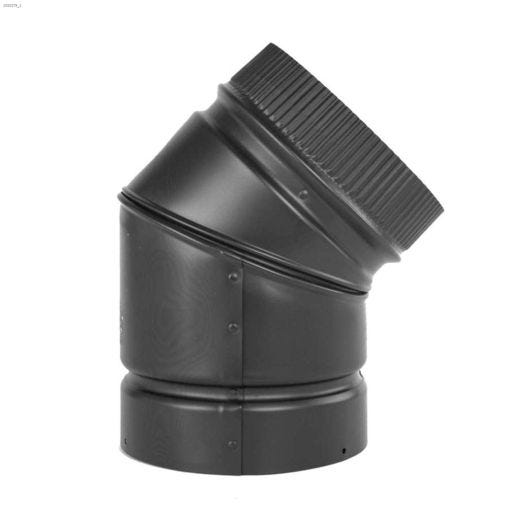

6" x 6" Black 45 Degree Stove Pipe Elbow
UPC
046205020894
Online Sku
1020279
Model Number
DSP6E4-1
$0.00
$79.99
Stove pipe elbow is used to offset stove pipe towards insulated chimney. This elbow has dual wall construction that provides added safety. The elbow is perfect for through-the-wall installation. It helps to prevent heat loss and improves clearance to combustibles such as walls and floors. The non-positional connection system allows 360 deg rotations.
- Use to offset double walled stove pipe toward insulated chimney
- Non-positional connection system allows 360 deg rotation
- Only 6 in clearance to combustibles
- Superior stove performance double walled construction with a 1/4 in air space between inner and outer pipes provides a superior insulating value than single wall pipe
- Single wall stove pipe is made from simple carbon steel and typically needs replacement every 2 or 3 years
- Model DSP is available in a variety of lengths and elbows for ease of installation
- The inner liner of Model DSP is made from corrosion-resistant 400 series stainless steel
- The black finish of model DSP provides a very rich and distinguished appearance
- Telescopic and adjustable lengths are available to eliminate cutting-to-size and allows access to the system for cleaning and inspection
- Standards: ULC S641/UL 103 Listed & Labelled
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | Canada |
| Material | Aluminized Steel/Stainless Steel |
| Temperature Rating (C) | 649 |
| Size (in) | 6 x 6 |
Overview
Stove pipe elbow is used to offset stove pipe towards insulated chimney. This elbow has dual wall construction that provides added safety. The elbow is perfect for through-the-wall installation. It helps to prevent heat loss and improves clearance to combustibles such as walls and floors. The non-positional connection system allows 360 deg rotations.
- Use to offset double walled stove pipe toward insulated chimney
- Non-positional connection system allows 360 deg rotation
- Only 6 in clearance to combustibles
- Superior stove performance double walled construction with a 1/4 in air space between inner and outer pipes provides a superior insulating value than single wall pipe
- Single wall stove pipe is made from simple carbon steel and typically needs replacement every 2 or 3 years
- Model DSP is available in a variety of lengths and elbows for ease of installation
- The inner liner of Model DSP is made from corrosion-resistant 400 series stainless steel
- The black finish of model DSP provides a very rich and distinguished appearance
- Telescopic and adjustable lengths are available to eliminate cutting-to-size and allows access to the system for cleaning and inspection
- Standards: ULC S641/UL 103 Listed & Labelled
Specifications
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | Canada |
| Material | Aluminized Steel/Stainless Steel |
| Temperature Rating (C) | 649 |
| Size (in) | 6 x 6 |
