6" 90 Degree Corner Half Block
UPC
1000000001983
Online Sku
1036900
Model Number
FOX-EC690HB
$0.00
$34.79

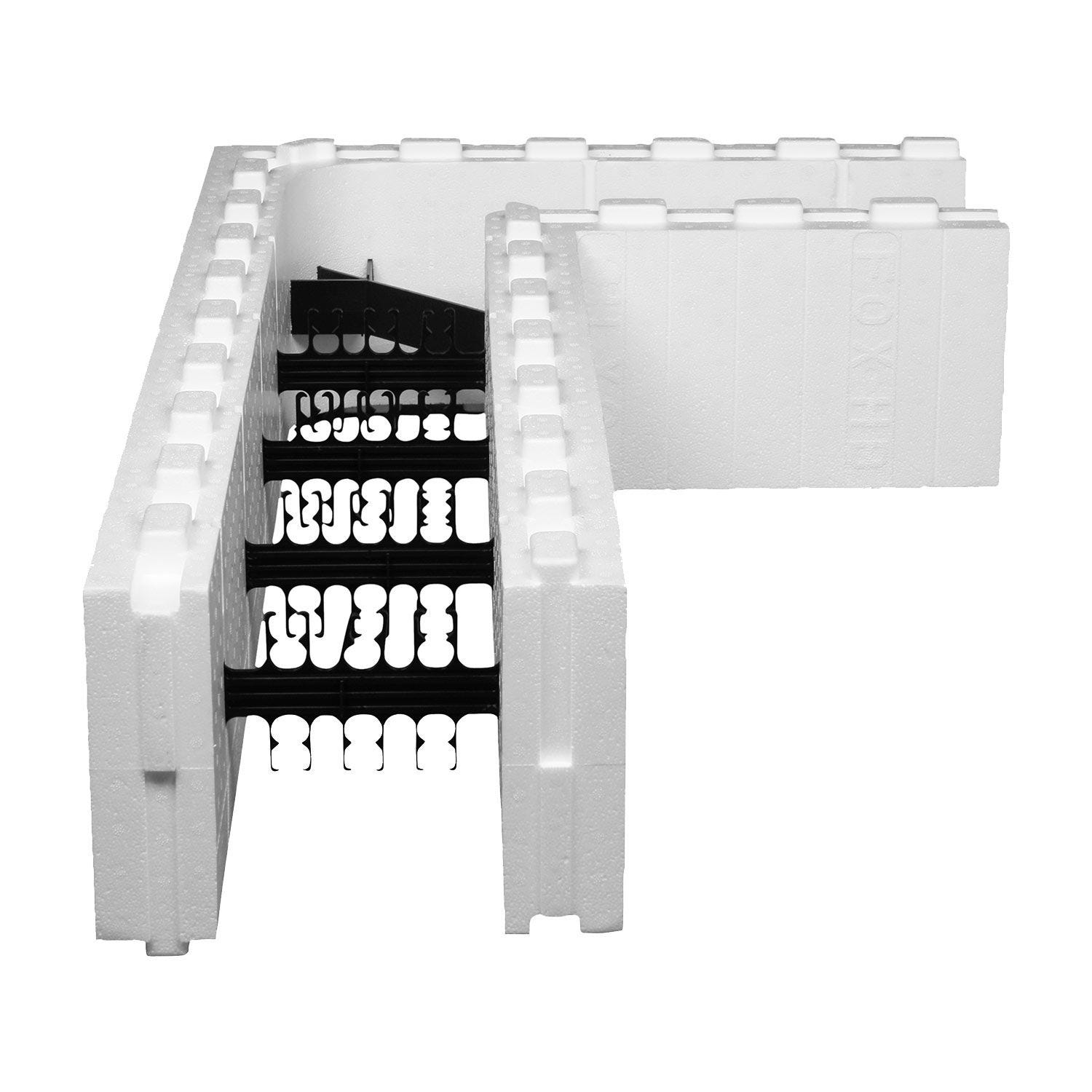

The 90 degree corner block typically makes up 10-15% of the ICF wall assembly on most residential & commercial jobs. This block has six (6) strong full length injection molded plastic ties made from Polypropylene (PP) regrind resin that are well marked with the word “Fox Blocks” located on both sides of the block. The corner block also has one (1) patent pending corner bracket designed like no other in the ICF Industry. This 7/32" thick x 1-1/2" wide corner bracket was engineered to add more strength/support to the block because it connects the inner/outer 1.5 PCF density modified Expanded Polystyrene (EPS) foam panels together and is designed with a round through hole in the outer panel for the installation of a 3/4" PVC or metal pipe to reinforce the corner once the wall is built to eliminate blow-outs during the concrete pour.
- 2-5/8" EPS for consistent R-Value
- Extra tie on each end for strength
- Reversible - same block for right or left corner
- Includes six full-length plastic ties made from polypropylene (PP) regrind resin
- Type 2 density
| Insulation Type | Expanded Polystyrene Insulation |
|---|---|
| Country of Origin | Canada/United States |
| Assembled Width (in) | 64 |
| Assembled Height (in) | 8 |
| Assembled Depth (in) | 11.25 |
| Assembled Weight (lb) | 4.25 |
| Application Type/Use | Foundation Wall |
Overview
The 90 degree corner block typically makes up 10-15% of the ICF wall assembly on most residential & commercial jobs. This block has six (6) strong full length injection molded plastic ties made from Polypropylene (PP) regrind resin that are well marked with the word “Fox Blocks” located on both sides of the block. The corner block also has one (1) patent pending corner bracket designed like no other in the ICF Industry. This 7/32" thick x 1-1/2" wide corner bracket was engineered to add more strength/support to the block because it connects the inner/outer 1.5 PCF density modified Expanded Polystyrene (EPS) foam panels together and is designed with a round through hole in the outer panel for the installation of a 3/4" PVC or metal pipe to reinforce the corner once the wall is built to eliminate blow-outs during the concrete pour.
- 2-5/8" EPS for consistent R-Value
- Extra tie on each end for strength
- Reversible - same block for right or left corner
- Includes six full-length plastic ties made from polypropylene (PP) regrind resin
- Type 2 density
Specifications
| Insulation Type | Expanded Polystyrene Insulation |
|---|---|
| Country of Origin | Canada/United States |
| Assembled Width (in) | 64 |
| Assembled Height (in) | 8 |
| Assembled Depth (in) | 11.25 |
| Assembled Weight (lb) | 4.25 |
| Application Type/Use | Foundation Wall |
