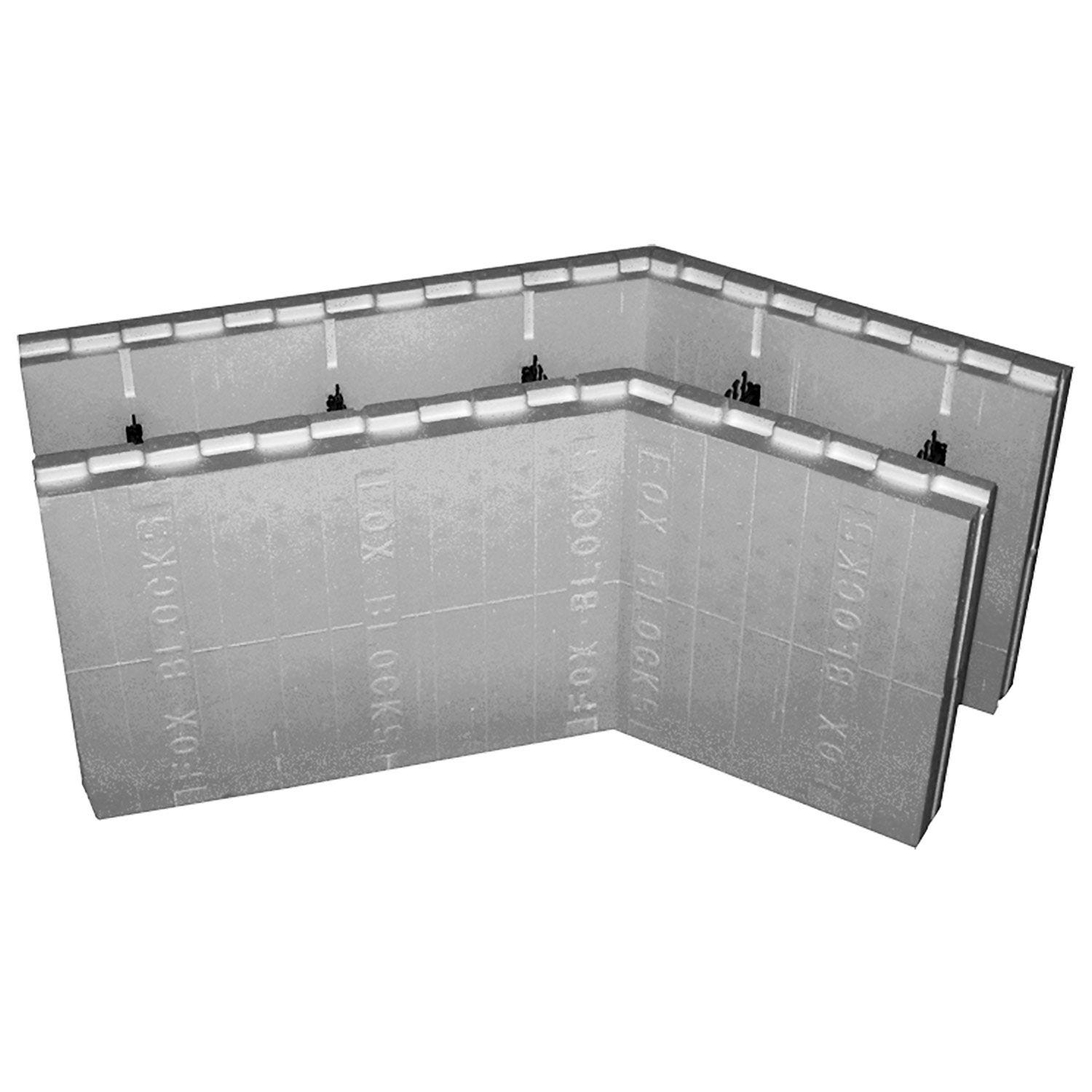

6" 45 Degree Angle Block

The 45 Degree Angle Block typically makes up 1-5% of the ICF wall assembly on most residential & commercial jobs. This block has five (5) strong full length injection molded plastic ties made from Polypropylene (PP)regrind resin that are well marked with the word “Fox Blocks” located on both sides of the block. The 7/32" thick x 1-1/2" wide corner bracket was engineered to add more strength/support to the block by reinforcing the corner once the wall is built to eliminate blow-outs during the concrete pour. The bracket has a marketed exterior fastening surface that is very large on both sides of the block to secure exterior veneer finishes. The ties secure the two pieces of 1.5 PCF density modified Expanded Polystyrene (EPS) foam together that makes up each block type. The blocks are stacked tightly together at the corner locations and inter-locked end to end to the Straight Blocks to the desired wall length.

• 2-5/8" EPS for consistent R-Value
• Large interlock for strength
• Rebar notches are designed to lap rebar on top of each other to ensure proper concrete placement
• Type 2 density
