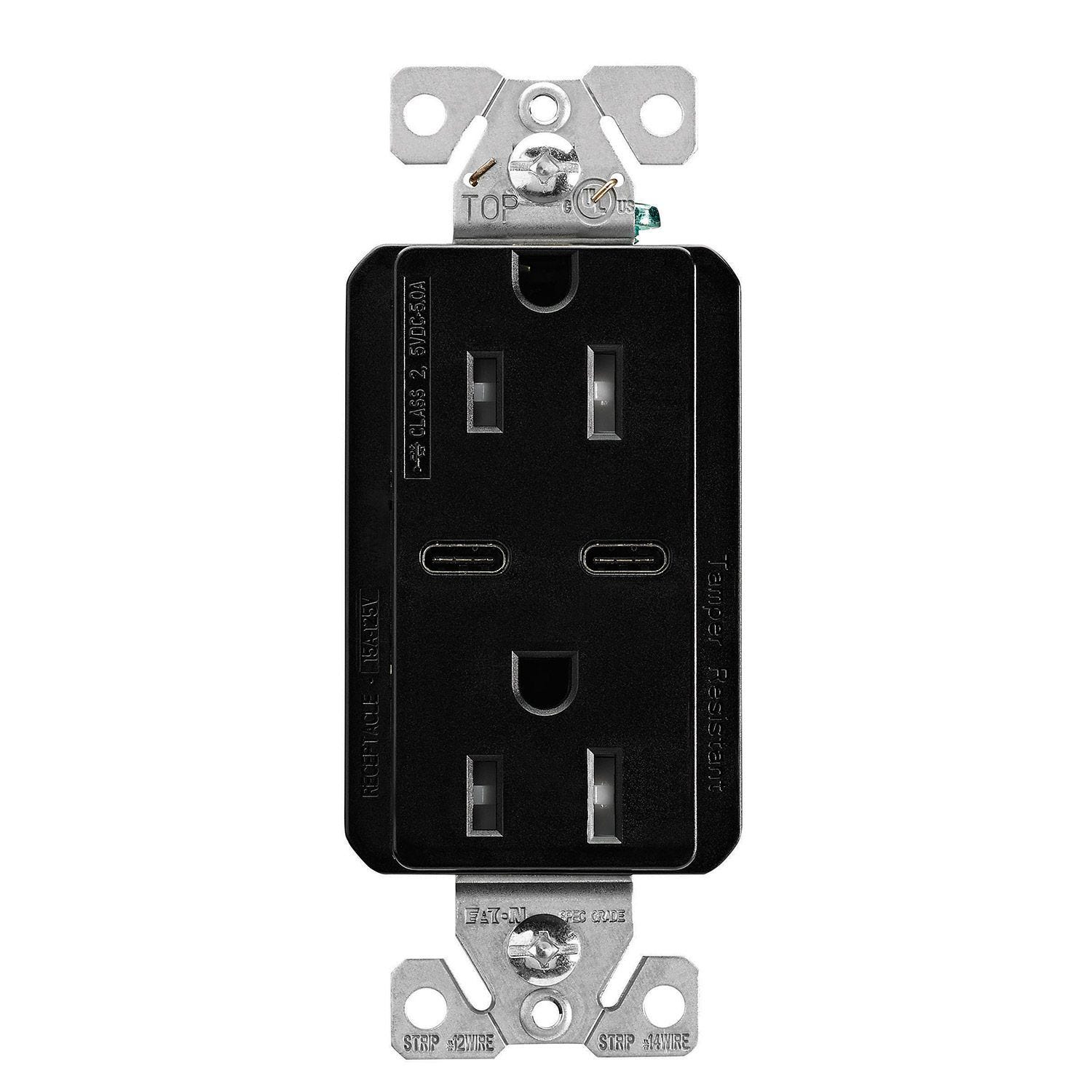

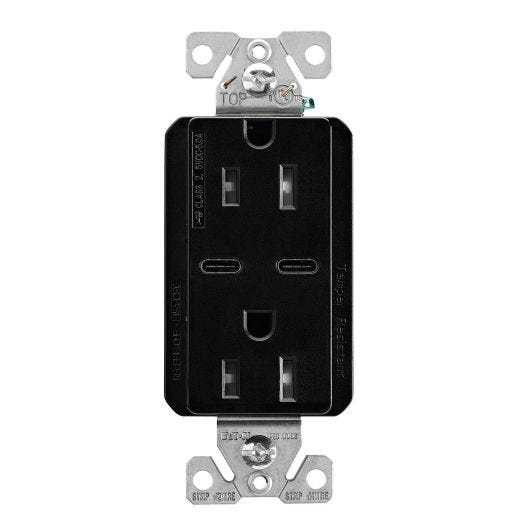

5.0A USB Type C Duplex Recep 15A 125V
Only %1 left
Online Sku
1550404
$0.00
Starting at
$39.99
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at
Eaton's family of USB charging receptacles offer fast, convenient and efficient charging for all your electronic devices directly from a standard outlet without the need of bulky adapters or charging bricks. Whether you are in a residential or commercial setting, eliminate clutter and charge your smart phone, tablet or even larger devices such as laptops with Eaton's wide range of USB charging solutions.
- Standard AC receptacle with two USB-C ports rated at a combined 5.0A
- Dual USB-C charging ports charge most electronic devices that comply with the USB-C standard
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure| provides redundant measure of ground continuity where jumper is used
- Steel mounting strap is zinc plated for added corrosion resistance
| Country of Origin | China |
|---|---|
| Assembled Width (in) | 1.69 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.03 |
| Assembled Weight (lb) | 0.28 |
| Temperature Rating (C) | -20 to 60 |
| Voltage Rating | 125 Volt |
| Amperage Rating | 15 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | General Duty |
| Type of Mounting | Wall Mount |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
Overview
Eaton's family of USB charging receptacles offer fast, convenient and efficient charging for all your electronic devices directly from a standard outlet without the need of bulky adapters or charging bricks. Whether you are in a residential or commercial setting, eliminate clutter and charge your smart phone, tablet or even larger devices such as laptops with Eaton's wide range of USB charging solutions.
- Standard AC receptacle with two USB-C ports rated at a combined 5.0A
- Dual USB-C charging ports charge most electronic devices that comply with the USB-C standard
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure| provides redundant measure of ground continuity where jumper is used
- Steel mounting strap is zinc plated for added corrosion resistance
Specifications
| Country of Origin | China |
|---|---|
| Assembled Width (in) | 1.69 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.03 |
| Assembled Weight (lb) | 0.28 |
| Temperature Rating (C) | -20 to 60 |
| Voltage Rating | 125 Volt |
| Amperage Rating | 15 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | General Duty |
| Type of Mounting | Wall Mount |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
