4.5 Gal Inline Pre-Charged Pressure Tank
UPC
010121014015
Online Sku
1391368
Model Number
604653
$0.00
$119.99

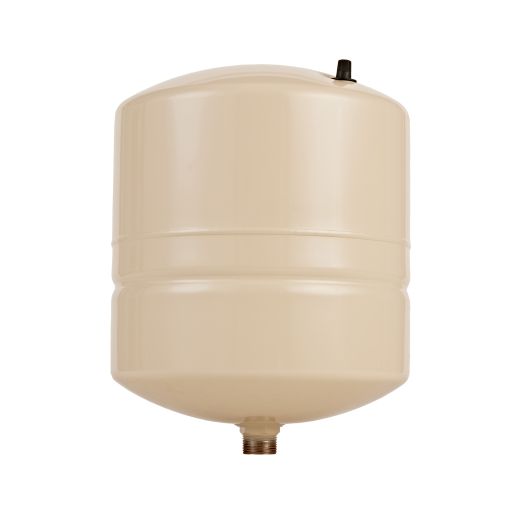

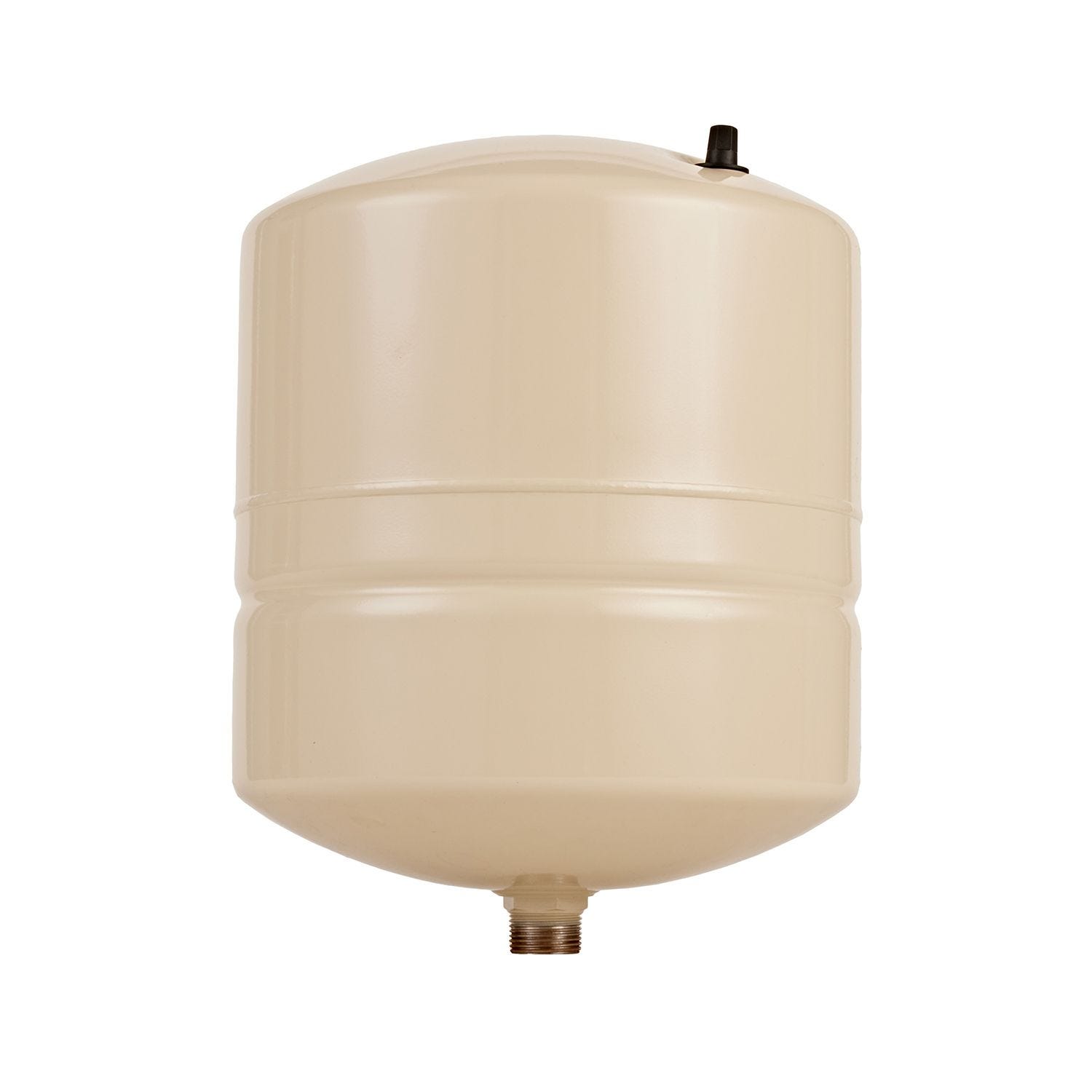

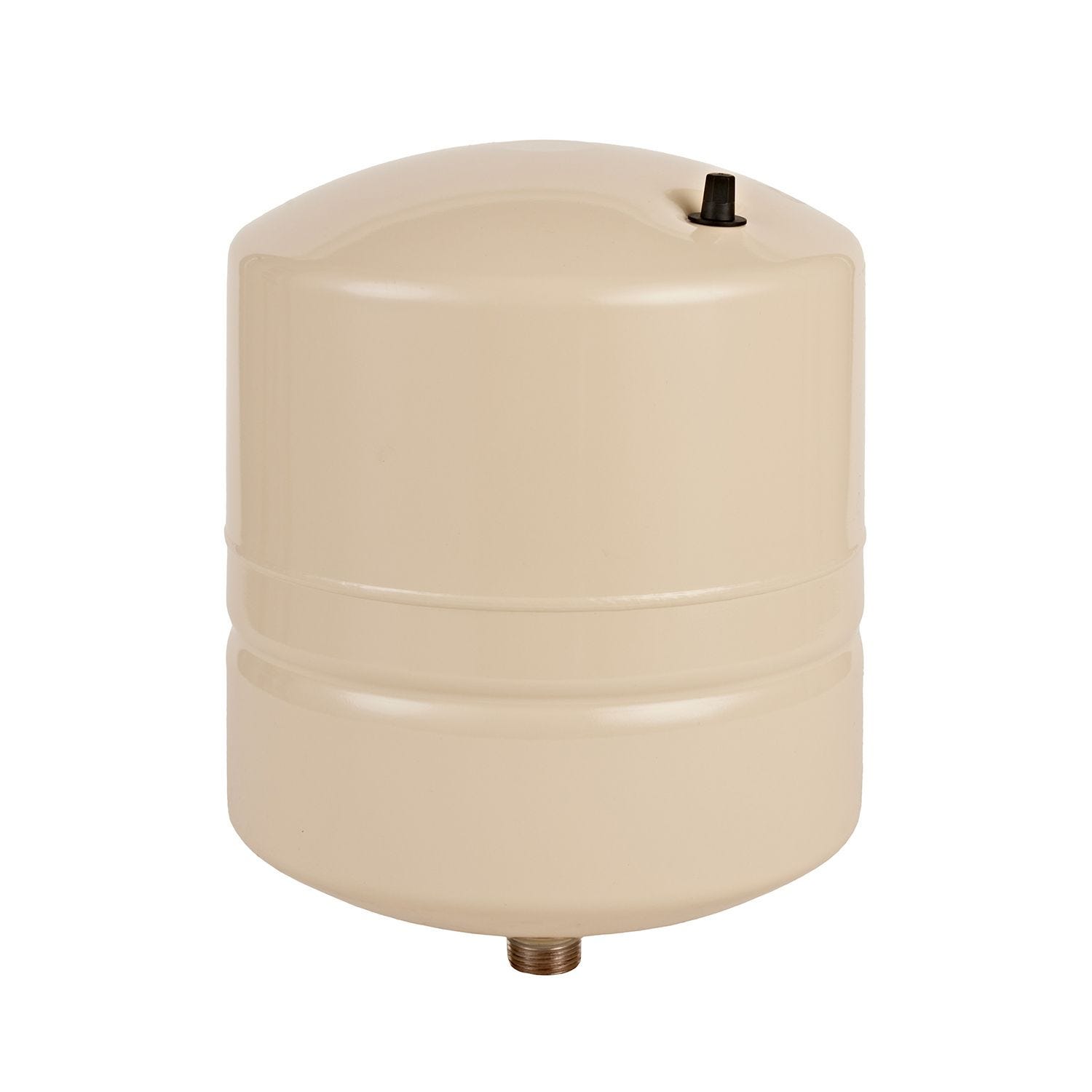

Red Lion RL4A 4.5 gallon pre-charged pressure tank maintains the water pressure in a residential water pump system when the pump is not running. ANSI/NSF Standard 61 approved - assures safe, clean drinking water.
- Heavy-duty steel construction - 16 gauge cold rolled steel with appliance-quality paint
- Blended butyl rubber diaphragm system - isolates the air charge from the water chamber and provides long tank life
- Steel clench ring protects diaphragm from rubbing against tank wall - eliminates abrasion and reduces condensation
- Brass air valve with O-ring seal - allows adjustment of air pre-charge
Manufacturer's Warranty | 5 Year |
---|---|
Capacity | 4.5 gal |
Country of Origin | Taiwan |
Material | 16 Gauge Cold Rolled Steel |
Assembled Width (in) | 11 |
Assembled Height (in) | 14.3 |
Assembled Depth (in) | 11 |
Assembled Weight (lb) | 7.28 |
Diameter | 11 inch |
Pressure Rating | 28 PSI (Tank Precharge), 100 PSI (Maximum) |
Overview
Red Lion RL4A 4.5 gallon pre-charged pressure tank maintains the water pressure in a residential water pump system when the pump is not running. ANSI/NSF Standard 61 approved - assures safe, clean drinking water.
- Heavy-duty steel construction - 16 gauge cold rolled steel with appliance-quality paint
- Blended butyl rubber diaphragm system - isolates the air charge from the water chamber and provides long tank life
- Steel clench ring protects diaphragm from rubbing against tank wall - eliminates abrasion and reduces condensation
- Brass air valve with O-ring seal - allows adjustment of air pre-charge
Specifications
Manufacturer's Warranty | 5 Year |
---|---|
Capacity | 4.5 gal |
Country of Origin | Taiwan |
Material | 16 Gauge Cold Rolled Steel |
Assembled Width (in) | 11 |
Assembled Height (in) | 14.3 |
Assembled Depth (in) | 11 |
Assembled Weight (lb) | 7.28 |
Diameter | 11 inch |
Pressure Rating | 28 PSI (Tank Precharge), 100 PSI (Maximum) |
