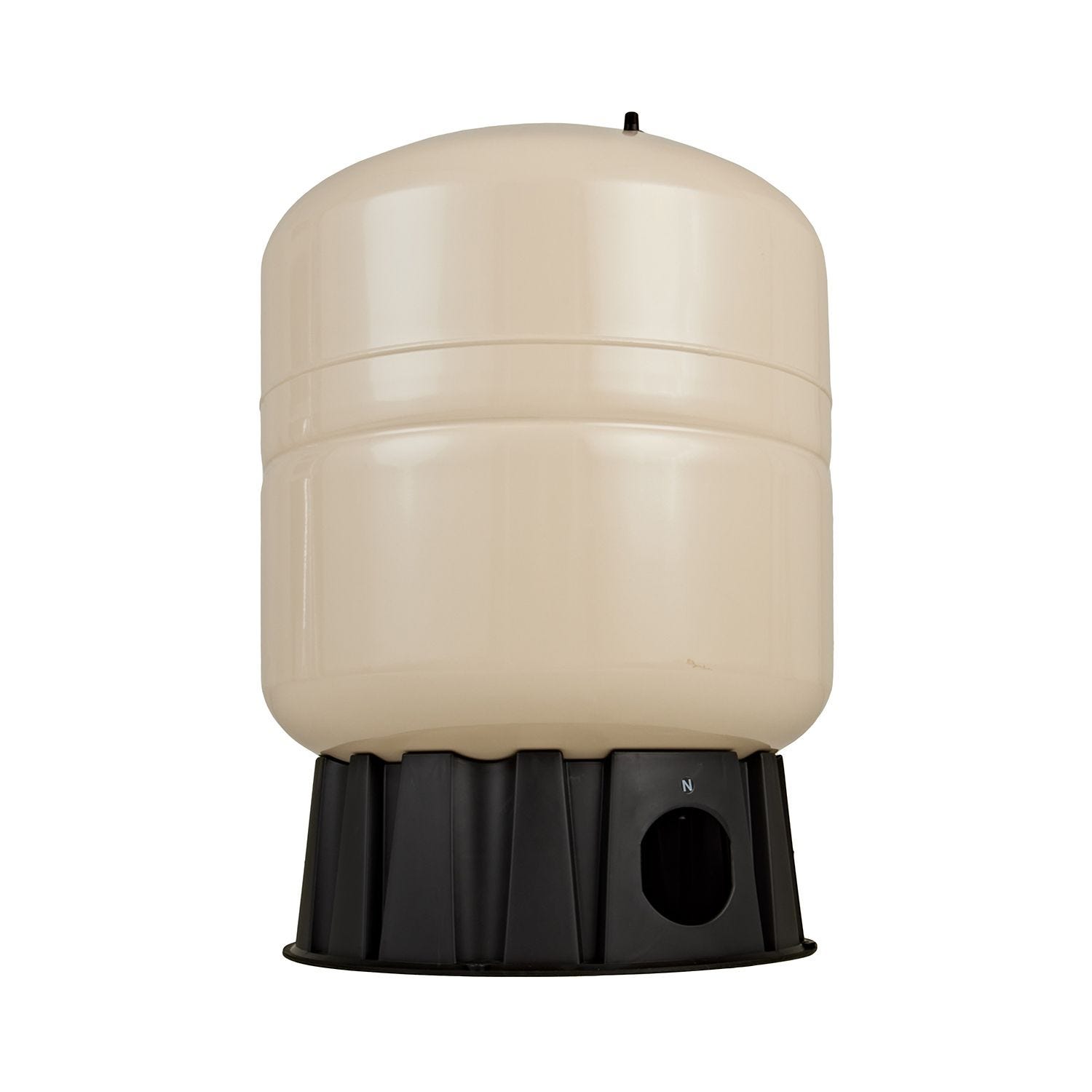

34.0 Gal Vertical Pre-Charged Pressure Tank
UPC
010121014060
Online Sku
1391338
Model Number
604683
$0.00
$499.99
Pay as low as
$20.83 /month
for
24 months
This amount does not include taxes, shipping and other fees.
Red Lion RL34A 34.0 gallon pre-charged pressure tank maintains the water pressure in a residential water pump system when the pump is not running. ANSI/NSF Standard 61 approved - assures safe, clean drinking water.
- Heavy-duty steel construction - 16 gauge cold rolled steel with appliance-quality paint
- Blended butyl rubber diaphragm system - isolates the air charge from the water chamber and provides long tank life
- Steel clench ring protects diaphragm from rubbing against tank wall - eliminates abrasion and reduces condensation
- Brass air valve with O-ring seal - allows adjustment of air pre-charge
| Manufacturer's Warranty | 5 Year |
|---|---|
| Capacity | 34 gal |
| Country of Origin | Taiwan |
| Material | 16 Gauge Cold Rolled Steel |
| Assembled Width (in) | 21.7 |
| Assembled Height (in) | 30.9 |
| Assembled Depth (in) | 21.7 |
| Assembled Weight (lb) | 47.4 |
| Diameter | 21.7 inch |
| Pressure Rating | 28 PSI (Tank Precharge), 100 PSI (Maximum) |
Overview
Red Lion RL34A 34.0 gallon pre-charged pressure tank maintains the water pressure in a residential water pump system when the pump is not running. ANSI/NSF Standard 61 approved - assures safe, clean drinking water.
- Heavy-duty steel construction - 16 gauge cold rolled steel with appliance-quality paint
- Blended butyl rubber diaphragm system - isolates the air charge from the water chamber and provides long tank life
- Steel clench ring protects diaphragm from rubbing against tank wall - eliminates abrasion and reduces condensation
- Brass air valve with O-ring seal - allows adjustment of air pre-charge
Specifications
| Manufacturer's Warranty | 5 Year |
|---|---|
| Capacity | 34 gal |
| Country of Origin | Taiwan |
| Material | 16 Gauge Cold Rolled Steel |
| Assembled Width (in) | 21.7 |
| Assembled Height (in) | 30.9 |
| Assembled Depth (in) | 21.7 |
| Assembled Weight (lb) | 47.4 |
| Diameter | 21.7 inch |
| Pressure Rating | 28 PSI (Tank Precharge), 100 PSI (Maximum) |
