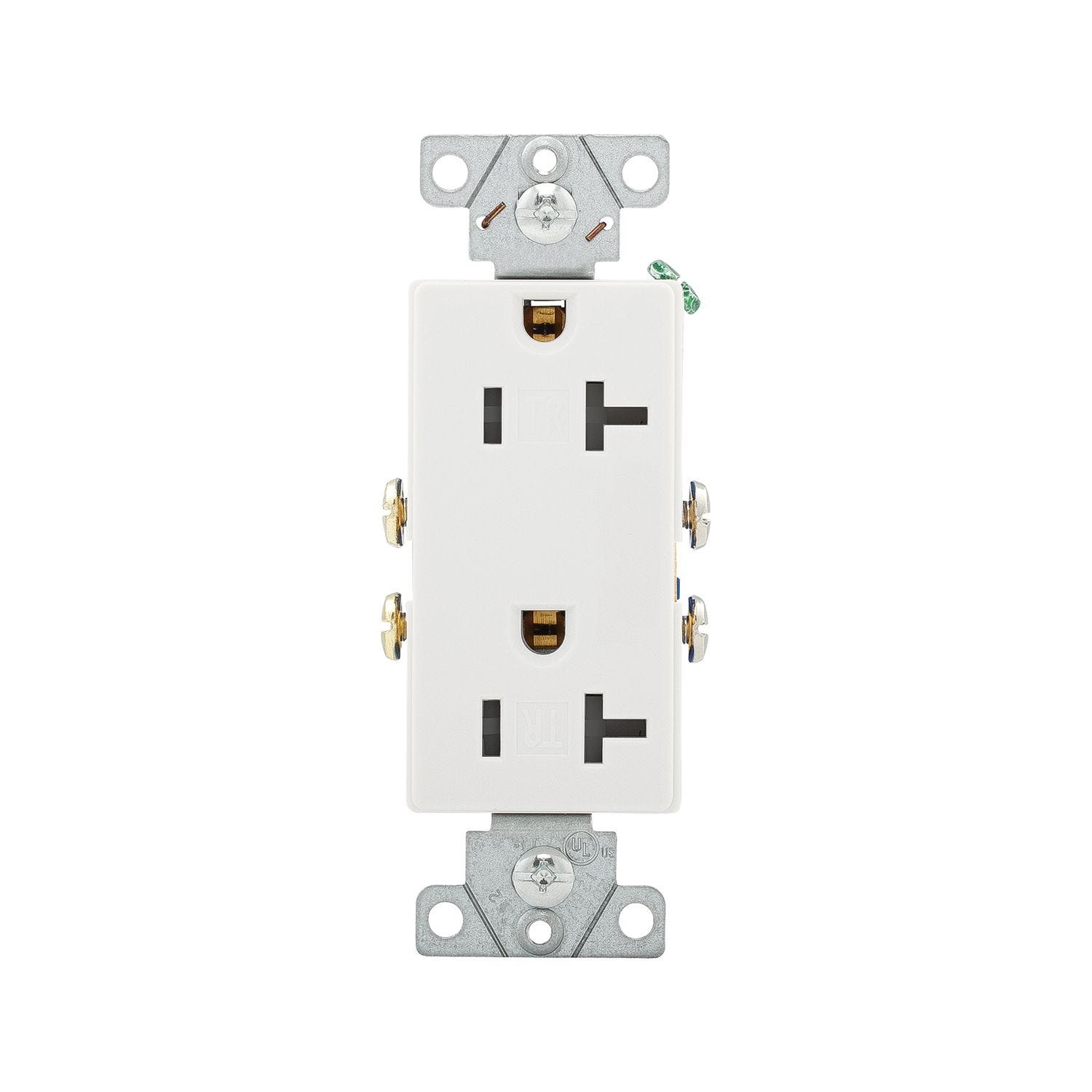

20 Amp White Decorator Tamper Resistant Outlet
UPC
032664753848
Online Sku
1521700
Model Number
TR1307W-SP-L
$0.00
$10.99
Tamper resistant receptacles contain a UL listed safety shutter system that prevents the insertion of foreign objects into receptacles. The safety shutters will open only upon insertion of a 2-prong or 3-prong plug. Installing these receptacles ensures compliance with 2017 NEC Article 406.12. Areas of application include: new residential construction; remodel/retrofit residential construction; apartment buildings; condominiums and townhouses; hotels, motels, inns and suites with kitchenettes; retirement communities, nursing homes and assisted living facilities. (Note: 2017 NEC Article 406.12 applies to new construction only). Durable impact-resistant thermoplastic face and back body is virtually unbreakable. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps. Patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire.
- Side and push wire
- 20 amp| 2 pole| 3 wire| 125V/AC
- Extra long and extra wide mounting straps
- Helps protect children from injury
| Country of Origin | China |
|---|---|
| Assembled Width (in) | 0.97 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.44 |
| Assembled Weight (lb) | 0.01 |
| Temperature Rating (C) | -20 to 70 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Side Wire |
| Number of Poles | 2 |
| Durability | Commercial |
| Type of Mounting | Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Decorator Duplex |
Overview
Tamper resistant receptacles contain a UL listed safety shutter system that prevents the insertion of foreign objects into receptacles. The safety shutters will open only upon insertion of a 2-prong or 3-prong plug. Installing these receptacles ensures compliance with 2017 NEC Article 406.12. Areas of application include: new residential construction; remodel/retrofit residential construction; apartment buildings; condominiums and townhouses; hotels, motels, inns and suites with kitchenettes; retirement communities, nursing homes and assisted living facilities. (Note: 2017 NEC Article 406.12 applies to new construction only). Durable impact-resistant thermoplastic face and back body is virtually unbreakable. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps. Patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire.
- Side and push wire
- 20 amp| 2 pole| 3 wire| 125V/AC
- Extra long and extra wide mounting straps
- Helps protect children from injury
Specifications
| Country of Origin | China |
|---|---|
| Assembled Width (in) | 0.97 |
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.44 |
| Assembled Weight (lb) | 0.01 |
| Temperature Rating (C) | -20 to 70 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Side Wire |
| Number of Poles | 2 |
| Durability | Commercial |
| Type of Mounting | Flush |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Decorator Duplex |
