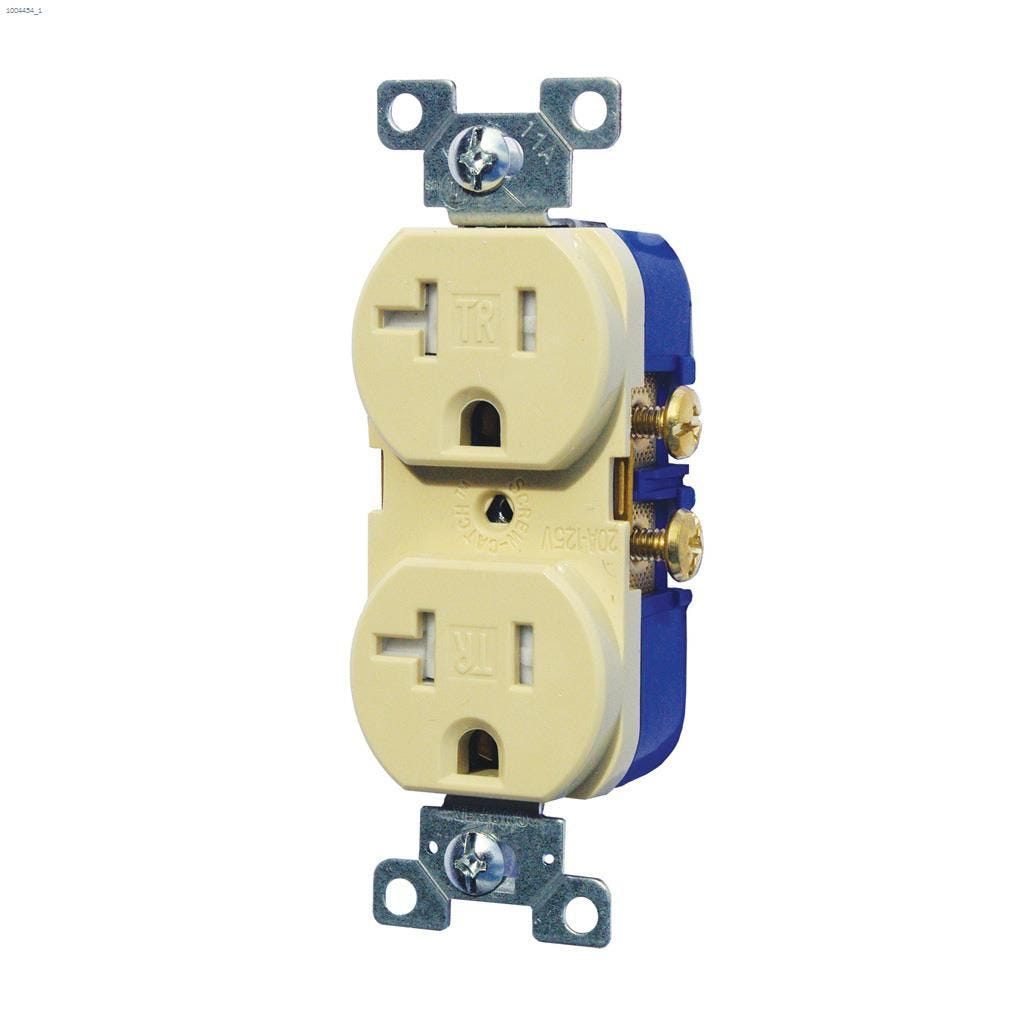

20 A Tamper Resistant Duplex Receptacle
Only %1 left
Online Sku
1004454
$0.00
Starting at
$7.19
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at
2-Pole 3-Wire Tamper-resistant duplex receptacle has voltage rating of 125 VAC and current rating of 20 Amps. The push-in terminals accommodate #14 AWG solid wire and the side wire terminals accommodate up to #10 solid/stranded wire for quick installation. This standard grade receptacle features thermoplastic face and back body. It withstands dielectric strength of 2000 Volts. It measures 10.16 cm x 3.1496 cm x 2 cm. It has 31/1000 in thick brass contact. The double wipe ground contacts enable long-term ground retention. It has 1/25 in thick steel strap for corrosion resistance. Receptacle withstands temperature rating of -20 to 60 deg C. Receptacle is UL/cULus listed, RoHS/NEC compliant and meets NOM standards.
- Tamper-resistant receptacles provide compliance with 2011 NEC® Article 406.12
- Longer and wider strap provides 40% more contact area to wall board while eliminating floating installations virtually
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Push-in terminals accept solid wire of size #14 AWG for quick installation
- Double-wipe ground contacts ensure long-term ground retention
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Side wire terminals accept solid wire of size up to #10 AWG
- Standards: cULus Listed to UL498, NOM Certified, 2011 NEC Article 406.12 Compliant, RoHS Compliant
| Assembled Width (in) | 0.79 |
|---|---|
| Assembled Height (in) | 4 |
| Assembled Depth (in) | 1.24 |
| Colour | Ivory |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125Â VÂ CA |
| Amperage Rating | 20 Amp |
| Terminal Connection | Side Wire |
| Number of Poles | 2 |
| Durability | Standard |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
Overview
2-Pole 3-Wire Tamper-resistant duplex receptacle has voltage rating of 125 VAC and current rating of 20 Amps. The push-in terminals accommodate #14 AWG solid wire and the side wire terminals accommodate up to #10 solid/stranded wire for quick installation. This standard grade receptacle features thermoplastic face and back body. It withstands dielectric strength of 2000 Volts. It measures 10.16 cm x 3.1496 cm x 2 cm. It has 31/1000 in thick brass contact. The double wipe ground contacts enable long-term ground retention. It has 1/25 in thick steel strap for corrosion resistance. Receptacle withstands temperature rating of -20 to 60 deg C. Receptacle is UL/cULus listed, RoHS/NEC compliant and meets NOM standards.
- Tamper-resistant receptacles provide compliance with 2011 NEC® Article 406.12
- Longer and wider strap provides 40% more contact area to wall board while eliminating floating installations virtually
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Push-in terminals accept solid wire of size #14 AWG for quick installation
- Double-wipe ground contacts ensure long-term ground retention
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Side wire terminals accept solid wire of size up to #10 AWG
- Standards: cULus Listed to UL498, NOM Certified, 2011 NEC Article 406.12 Compliant, RoHS Compliant
Specifications
| Assembled Width (in) | 0.79 |
|---|---|
| Assembled Height (in) | 4 |
| Assembled Depth (in) | 1.24 |
| Colour | Ivory |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125Â VÂ CA |
| Amperage Rating | 20 Amp |
| Terminal Connection | Side Wire |
| Number of Poles | 2 |
| Durability | Standard |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
