2-Pole 120/240V AC GFCI Circuit Breaker-50A Rated
UPC
804766707506
Online Sku
1672396
Model Number
US2:QF250ACSA
$0.00
$399.99
Pay as low as
$16.67 /month
for
24 months
This amount does not include taxes, shipping and other fees.

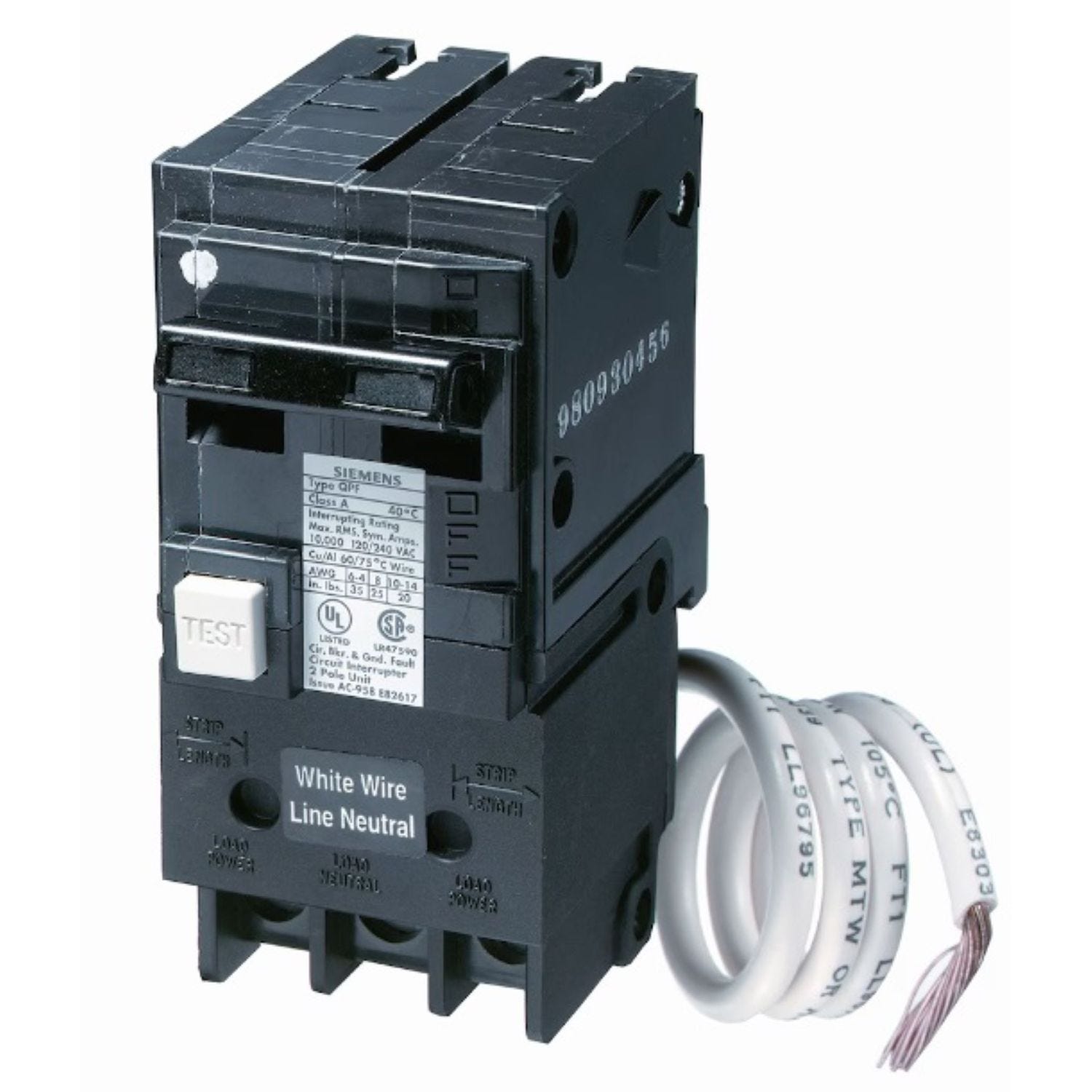

This Siemens 50 A rated GFCI 2-pole circuit breaker features a LED which allows to easily identify the tripped breaker. It also features a self-test function: if the breaker detects that it has been compromised, it trips itself and locks in this position so that it can't be reset. This circuit breaker range is designed to detect ground faults. The breaker provides overload and short circuit protection (120/240 V AC).
- Device intended for personnel protection from Ground Faults
- LED trip indicators to help identify fault conditions
- Autonomously and continuously tests itself for device malfunction
- White line neutral (pigtail) must be connected to the panel neutral for the device to function
- Suitable for a variety of construction applications including spas, hot tubs, kitchens, bathrooms, etc.
| Country of Origin | Philippines |
|---|---|
| Material | Die Cast Plastic |
| Assembled Width (in) | 4.5 |
| Assembled Height (in) | 2 |
| Assembled Depth (in) | 3 |
| Assembled Weight (lb) | 1 |
| Wire Size | 14-8 AWG (Aluminum/Copper) |
| Interrupt Rating | 10 Kilo-Amp |
| Voltage Rating | 120/240 Volt |
| Amperage Rating | 50 Amp |
| Terminal Connection | Load Side Lug Terminal |
| Number of Poles | 1 |
Overview
This Siemens 50 A rated GFCI 2-pole circuit breaker features a LED which allows to easily identify the tripped breaker. It also features a self-test function: if the breaker detects that it has been compromised, it trips itself and locks in this position so that it can't be reset. This circuit breaker range is designed to detect ground faults. The breaker provides overload and short circuit protection (120/240 V AC).
- Device intended for personnel protection from Ground Faults
- LED trip indicators to help identify fault conditions
- Autonomously and continuously tests itself for device malfunction
- White line neutral (pigtail) must be connected to the panel neutral for the device to function
- Suitable for a variety of construction applications including spas, hot tubs, kitchens, bathrooms, etc.
Specifications
| Country of Origin | Philippines |
|---|---|
| Material | Die Cast Plastic |
| Assembled Width (in) | 4.5 |
| Assembled Height (in) | 2 |
| Assembled Depth (in) | 3 |
| Assembled Weight (lb) | 1 |
| Wire Size | 14-8 AWG (Aluminum/Copper) |
| Interrupt Rating | 10 Kilo-Amp |
| Voltage Rating | 120/240 Volt |
| Amperage Rating | 50 Amp |
| Terminal Connection | Load Side Lug Terminal |
| Number of Poles | 1 |
