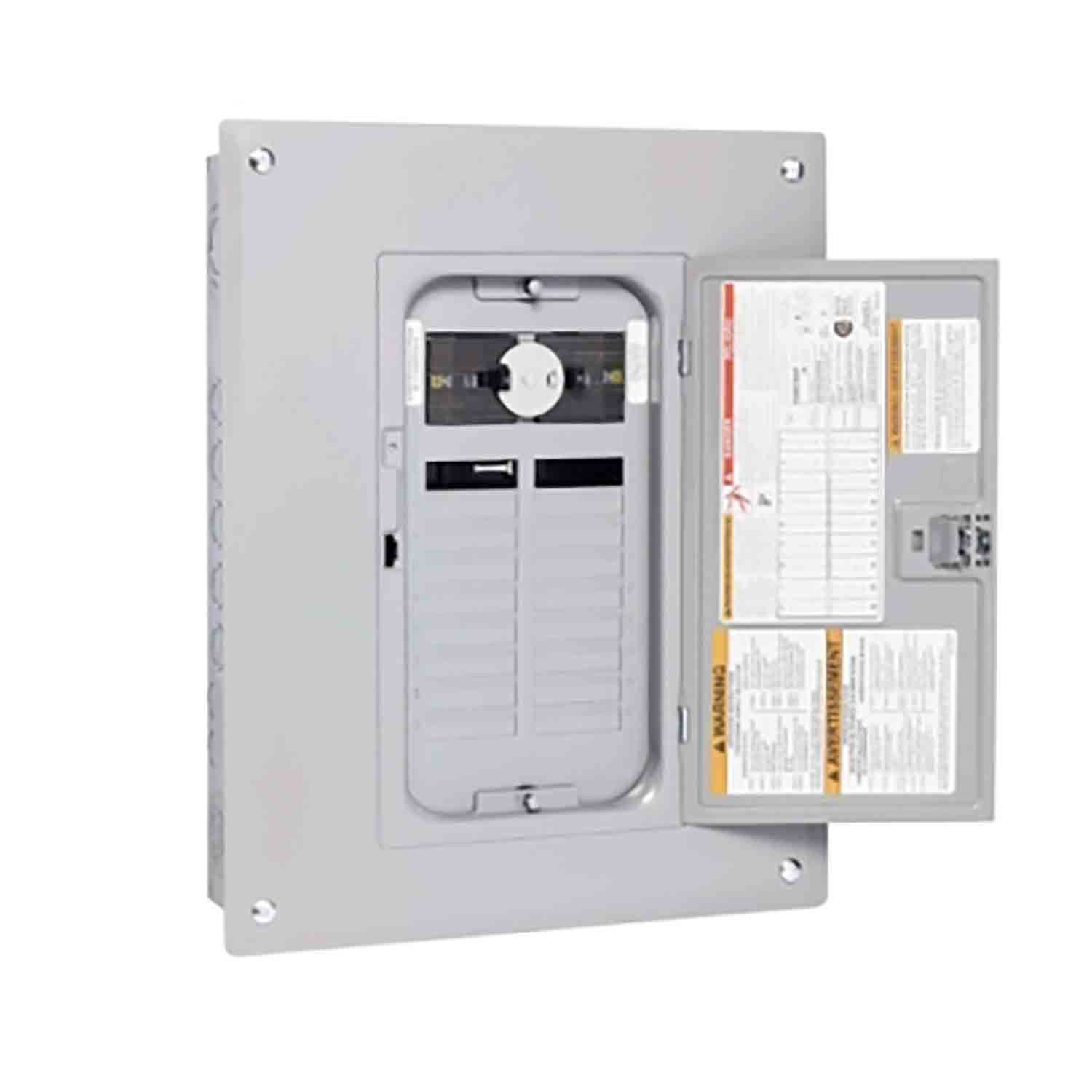

Square D 60A 1-Phase 18 Space 36 Circuit Max Generator Panel
UPC
785901667018
Online Sku
1585463
Model Number
QOGP3P6036P
$0.00
$487.99
Pay as low as
$20.33 /month
for
24 months
This amount does not include taxes, shipping and other fees.
Loadcenters offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 18 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Generator Panel contains a main breaker and is rated at 6 A and 1 phase. This system provides 18 spaces in a NEMA 1 enclosure and it is Plug-on neutral load center. CQO load centers are CSA certified.
- Large circuit breaker capacity| accepts up to 18 standard or 36 QO tandem circuits
- Includes two factory installed 60A 3 pole main breakers
- Ease of use from our patented rotating interlock bracket design
- Ease of use from our patented rotating interlock bracket design
- Manually switch from utility power to stand-by generator power in seconds
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | United States |
| Assembled Width (in) | 16.3 |
| Assembled Height (in) | 5.5 |
| Assembled Depth (in) | 20.5 |
| Assembled Weight (lb) | 20.59 |
| Wire Size | 4 AWG to 25 kcmil |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120/240 Volt AC |
| Amperage Rating | 60 Amp |
| Terminal Connection | Lug |
Overview
Loadcenters offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 18 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Generator Panel contains a main breaker and is rated at 6 A and 1 phase. This system provides 18 spaces in a NEMA 1 enclosure and it is Plug-on neutral load center. CQO load centers are CSA certified.
- Large circuit breaker capacity| accepts up to 18 standard or 36 QO tandem circuits
- Includes two factory installed 60A 3 pole main breakers
- Ease of use from our patented rotating interlock bracket design
- Ease of use from our patented rotating interlock bracket design
- Manually switch from utility power to stand-by generator power in seconds
Specifications
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | United States |
| Assembled Width (in) | 16.3 |
| Assembled Height (in) | 5.5 |
| Assembled Depth (in) | 20.5 |
| Assembled Weight (lb) | 20.59 |
| Wire Size | 4 AWG to 25 kcmil |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120/240 Volt AC |
| Amperage Rating | 60 Amp |
| Terminal Connection | Lug |
