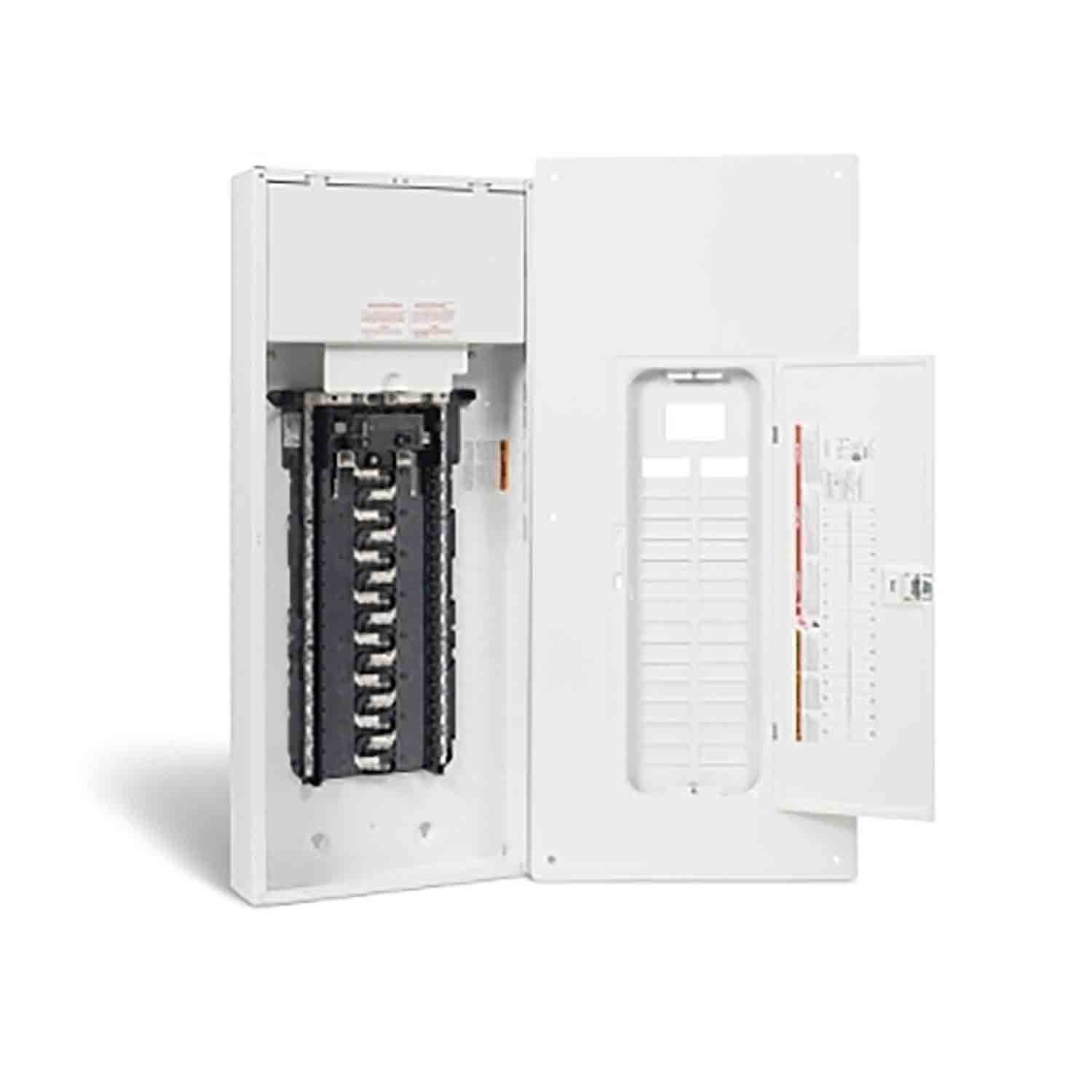

Homeline 100A 30 Space Main Breaker Loadcentre 60 Circuit
UPC
78590167725
Online Sku
1585462
Model Number
CHOM3060M100GC
$0.00
$189.99
This service entrance panel is connected to the electrical meter and distributes electricity throughout the home. Each is equipped with a factory installed main circuit breaker, which serves as the main disconnect to turn off power to the loadcentre, as well as to protect the load center from an overload or short circuit. HomeLine loadcentres are CSA approved to only accept Canadian HomeLine breakers.
- Factory installed 100A main breaker
- Suitable for surface or flush mounting
- CSA approved for vertical| horizontal or inverted mounting
- Tandem or quad breakers allow you to easily expand the loadcentre capacity
- Shielded aluminum bus minimizes the exposed bus and reduces chance of incidental contact
| Manufacturer's Warranty | 10 Years |
|---|---|
| Country of Origin | United States |
| Assembled Width (in) | 16 |
| Assembled Height (in) | 5.5 |
| Assembled Depth (in) | 32.29 |
| Assembled Weight (lb) | 33 |
| Wire Size | 4 AWG to 25 kcmil |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120/240 Volt AC |
| Amperage Rating | 100 Amp |
| Terminal Connection | Lug |
Overview
This service entrance panel is connected to the electrical meter and distributes electricity throughout the home. Each is equipped with a factory installed main circuit breaker, which serves as the main disconnect to turn off power to the loadcentre, as well as to protect the load center from an overload or short circuit. HomeLine loadcentres are CSA approved to only accept Canadian HomeLine breakers.
- Factory installed 100A main breaker
- Suitable for surface or flush mounting
- CSA approved for vertical| horizontal or inverted mounting
- Tandem or quad breakers allow you to easily expand the loadcentre capacity
- Shielded aluminum bus minimizes the exposed bus and reduces chance of incidental contact
Specifications
| Manufacturer's Warranty | 10 Years |
|---|---|
| Country of Origin | United States |
| Assembled Width (in) | 16 |
| Assembled Height (in) | 5.5 |
| Assembled Depth (in) | 32.29 |
| Assembled Weight (lb) | 33 |
| Wire Size | 4 AWG to 25 kcmil |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120/240 Volt AC |
| Amperage Rating | 100 Amp |
| Terminal Connection | Lug |
