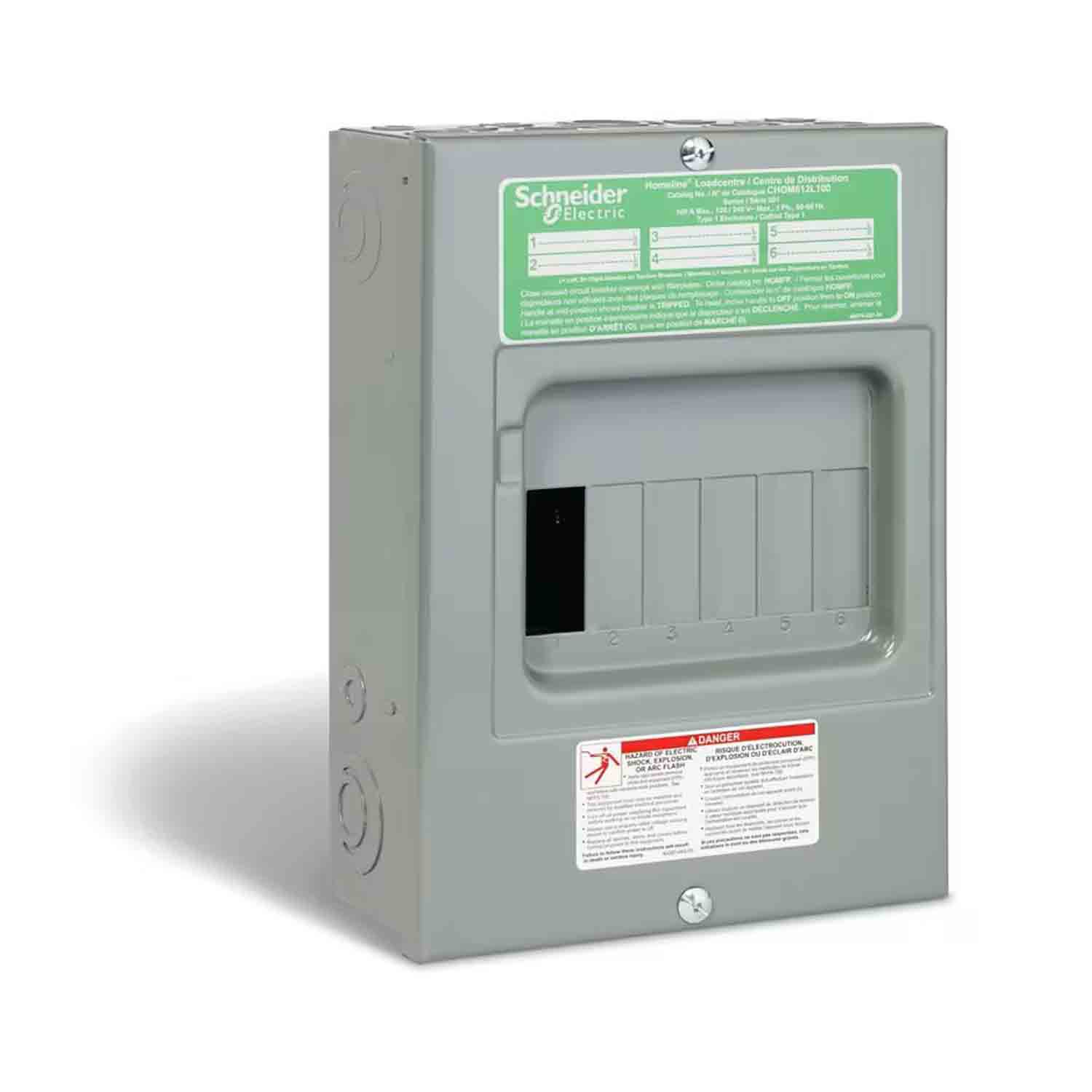

100 Amp Sub Panel Loadcentre with 6 Spaces 12 Circuits Max

Loadcentres offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Load Center has main lugs that are rated at 100A single phase. This load center provides a 10kA breaking capacity. This system provides 6 spaces in a NEMA 1 enclosure. The box lugs will accept a wire range of 8 AWG to 1 AWG copper or aluminum wire. The surface cover is painted white. HOM Homeline load centers are CSA certified. This product is in consumer packaging.

• 1 Phase, 3 Wire, 120/240VAC
• 6 Spaces, expandable to 12 circuits maximum with the use of HomeLine Tandem or Quad breakers
• Type 1 indoor enclosure with surface trim
• Type 1 indoor enclosure with surface trim
• CSA approved for vertical, horizontal or inverted mounting
