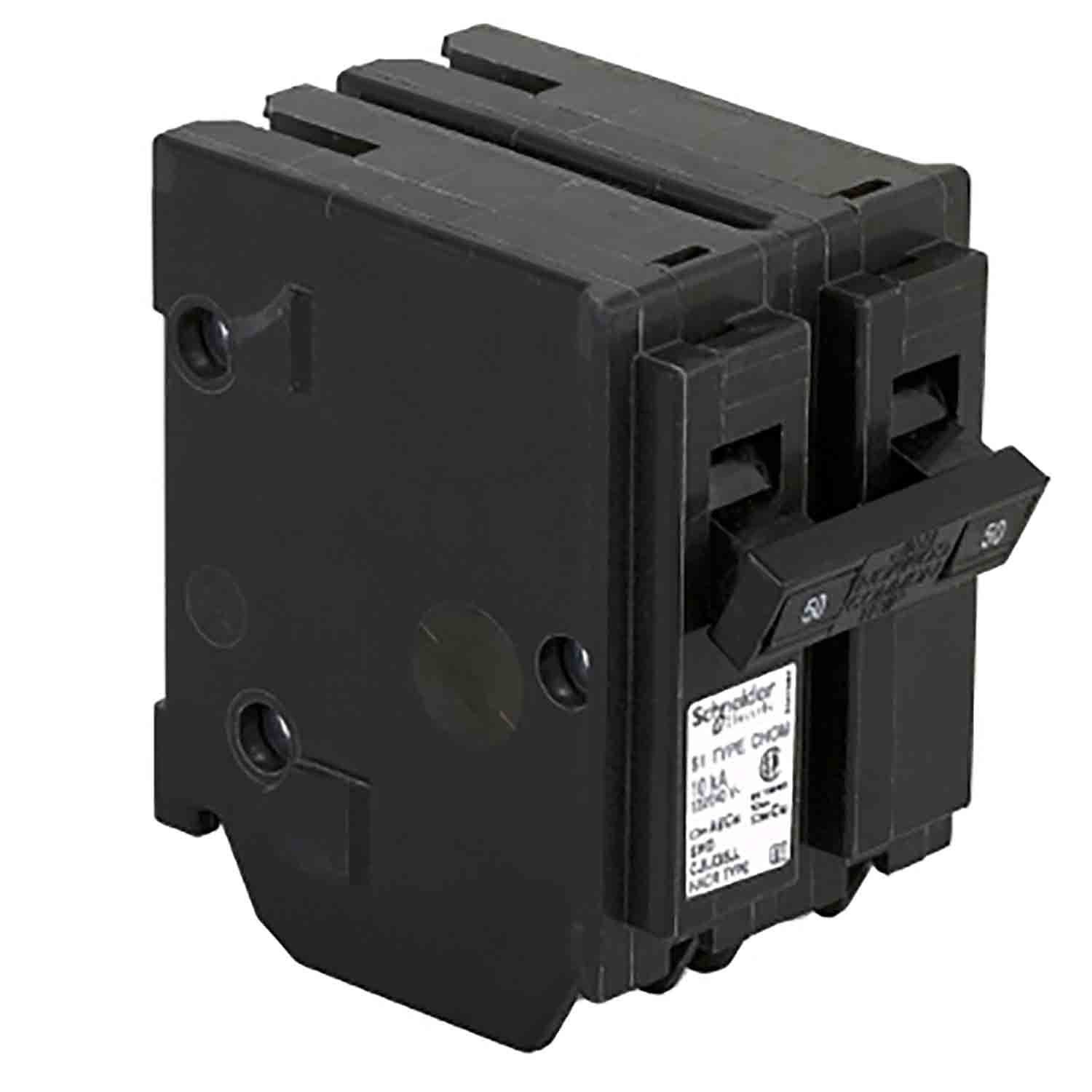

Double Pole 50 Amp Homeline Plug-On Circuit Breaker
UPC
785901648055
Online Sku
1585453
Model Number
CHOM250CP
$0.00
$79.99
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. Homeline miniature circuit breakers are CSA certified. They are contractor packed.
- Provides overload and short circuit protection (240Vac)
- Accepts Al/Cu conductors, Lug Range: #8-#2
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- Accepts 60/75°C wire up to 40A, 75°C wire over 40A.
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | Mexico |
| Assembled Width (in) | 3 |
| Assembled Height (in) | 2 |
| Assembled Depth (in) | 3.2 |
| Assembled Weight (lb) | 0.7 |
| Wire Size | 14 AWG to 8 AWG |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120/240 Volt |
| Amperage Rating | 50 Amp |
| Terminal Connection | Plug-on neutral |
| Number of Poles | 2 |
Overview
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. Homeline miniature circuit breakers are CSA certified. They are contractor packed.
- Provides overload and short circuit protection (240Vac)
- Accepts Al/Cu conductors, Lug Range: #8-#2
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- Accepts 60/75°C wire up to 40A, 75°C wire over 40A.
Specifications
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | Mexico |
| Assembled Width (in) | 3 |
| Assembled Height (in) | 2 |
| Assembled Depth (in) | 3.2 |
| Assembled Weight (lb) | 0.7 |
| Wire Size | 14 AWG to 8 AWG |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120/240 Volt |
| Amperage Rating | 50 Amp |
| Terminal Connection | Plug-on neutral |
| Number of Poles | 2 |
