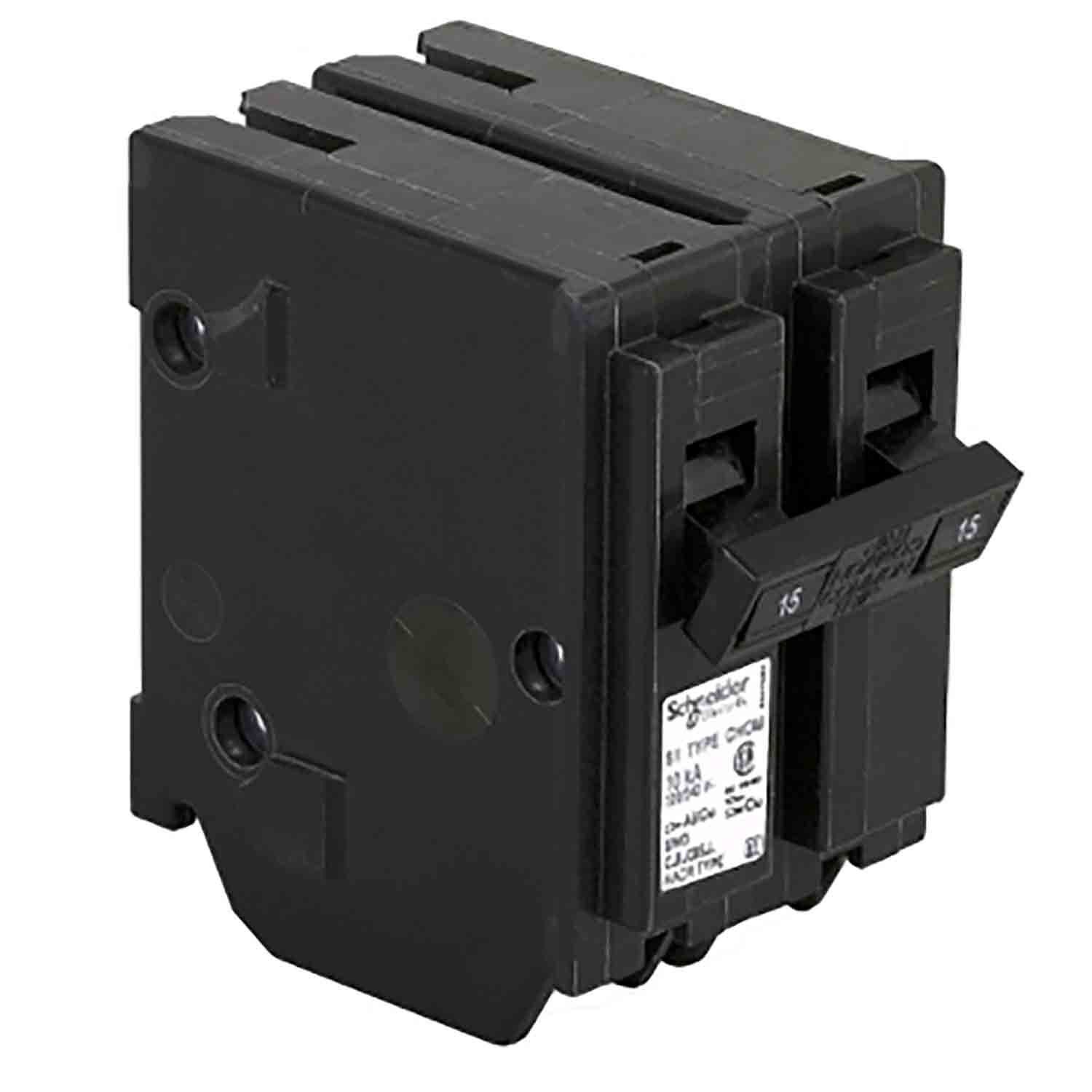

Double Pole 15 Amp Homeline Plug-On Circuit Breaker
UPC
785901647607
Online Sku
1585449
Model Number
CHOM215CP
$0.00
$26.79
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 15 A at 120/240 VAC. breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. Homeline miniature circuit breakers are CSA certified. They are contractor packed.
- Provides overload and short circuit protection (240Vac)
- Accepts Al/Cu conductors, Lug Range #14-#8
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- Accepts 60/75°C wire up to 40A, 75°C wire over 40A
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | Mexico |
| Assembled Width (in) | 3 |
| Assembled Height (in) | 3 |
| Assembled Depth (in) | 2 |
| Assembled Weight (lb) | 0.67 |
| Wire Size | 14 AWG to 8 AWG |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120/240 Volt |
| Amperage Rating | 15 Amp |
| Terminal Connection | Plug-on neutral |
| Number of Poles | 2 |
Overview
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 15 A at 120/240 VAC. breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. Homeline miniature circuit breakers are CSA certified. They are contractor packed.
- Provides overload and short circuit protection (240Vac)
- Accepts Al/Cu conductors, Lug Range #14-#8
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- Accepts 60/75°C wire up to 40A, 75°C wire over 40A
Specifications
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | Mexico |
| Assembled Width (in) | 3 |
| Assembled Height (in) | 3 |
| Assembled Depth (in) | 2 |
| Assembled Weight (lb) | 0.67 |
| Wire Size | 14 AWG to 8 AWG |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120/240 Volt |
| Amperage Rating | 15 Amp |
| Terminal Connection | Plug-on neutral |
| Number of Poles | 2 |
