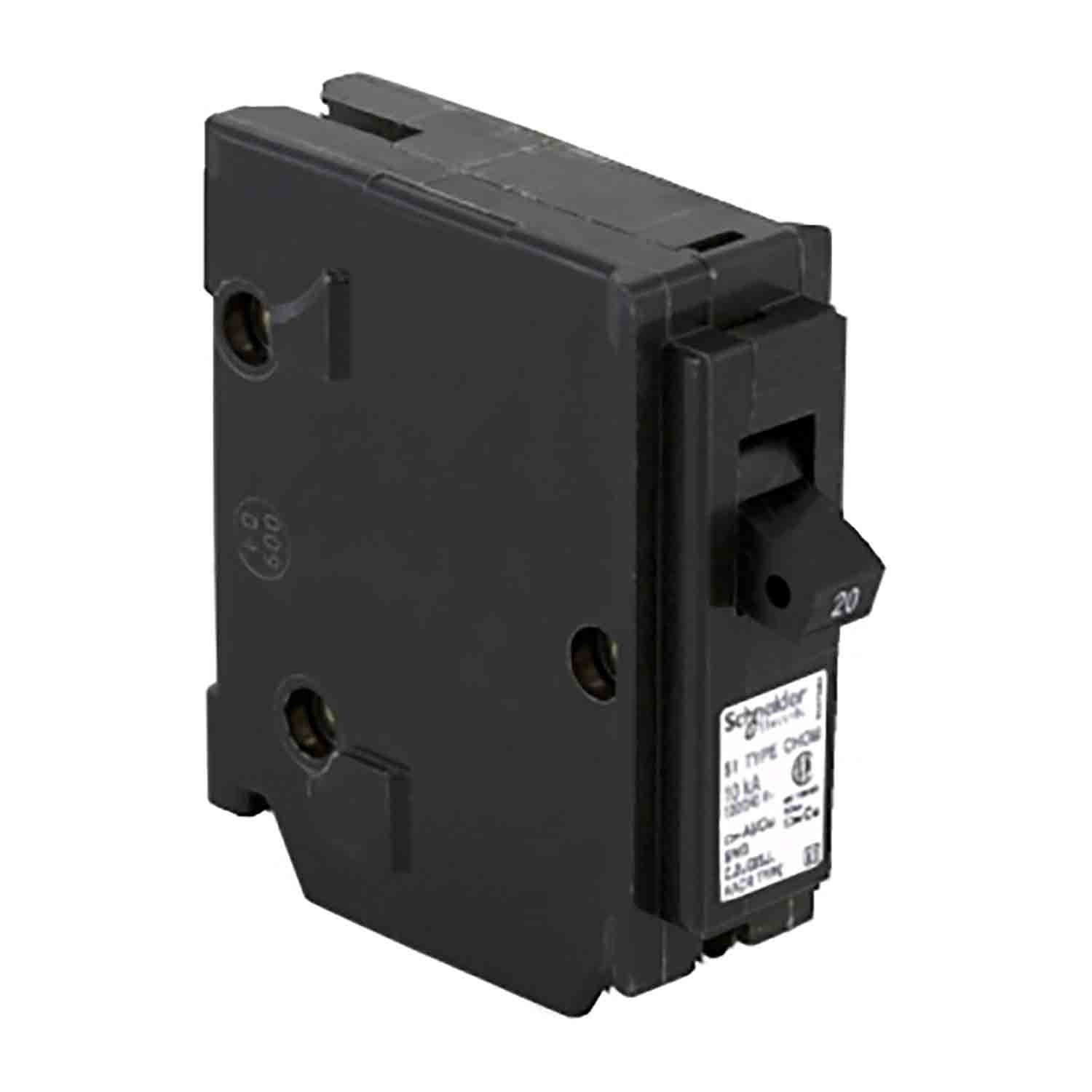

Single Pole 20 Amp Homeline Plug-On Circuit Breaker
UPC
785901647362
Online Sku
1585447
Model Number
CHOM120CP
$0.00
$14.45
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20 A at 120/240 VAC. breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. Homeline miniature circuit breakers are CSA certified. They are contractor packed.
- Provides overload and short circuit protection (120Vac)
- Accepts Al/Cu conductors, Lug Range #14-#8
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- 10,000 Amperes Interrupting Rating (AIR)
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | United States |
| Assembled Width (in) | 1 |
| Assembled Height (in) | 3 |
| Assembled Depth (in) | 3 |
| Assembled Weight (lb) | 0.28 |
| Wire Size | 14 AWG to 8 AWG |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Plug-on neutral |
| Number of Poles | 1 |
Overview
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20 A at 120/240 VAC. breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. Homeline miniature circuit breakers are CSA certified. They are contractor packed.
- Provides overload and short circuit protection (120Vac)
- Accepts Al/Cu conductors, Lug Range #14-#8
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- CSA listed for HACR (Heating, air-conditioning and refrigeration equipment)
- 10,000 Amperes Interrupting Rating (AIR)
Specifications
| Manufacturer's Warranty | Lifetime |
|---|---|
| Country of Origin | United States |
| Assembled Width (in) | 1 |
| Assembled Height (in) | 3 |
| Assembled Depth (in) | 3 |
| Assembled Weight (lb) | 0.28 |
| Wire Size | 14 AWG to 8 AWG |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 1000 Kilo-Amp |
| Voltage Rating | 120 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Plug-on neutral |
| Number of Poles | 1 |
