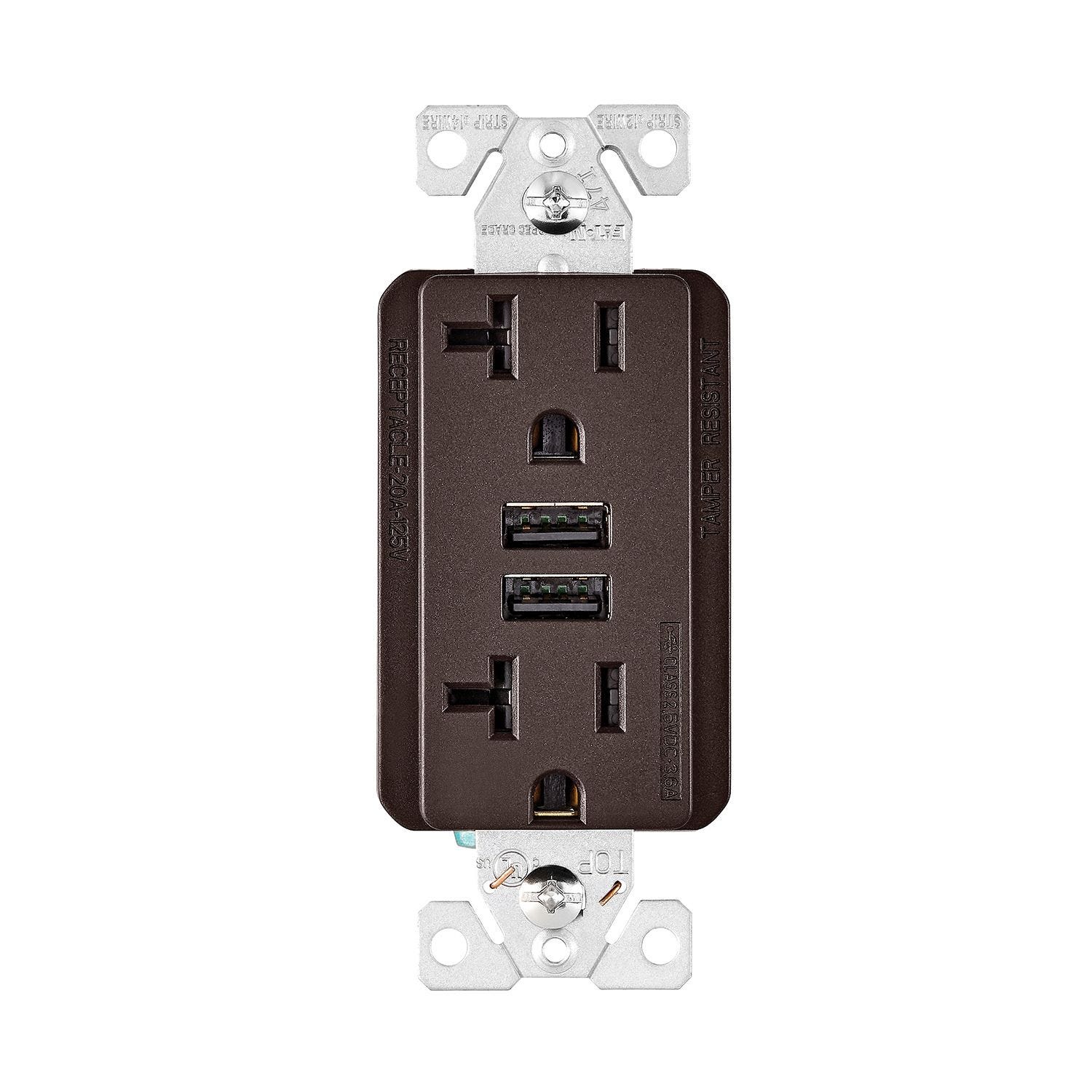

Combination USB Charger With Duplex Receptacle
Only %1 left
Online Sku
1535464
$0.00
Starting at
$66.50
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at
Eaton Wiring's 20A duplex receptacle with dual USB in offers fast, efficient and adapter-less charging of electronic devices in residential and commercial environments. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used. Dual USB-C charging ports charge most electronic devices that comply with the latest USB-C standard.
- Standard AC duplex receptacle with two USB charging ports rated at 3.6A
- Dual USB ports charges most compatible USB electronic devices
- Replaces a standard duplex receptacle
- Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
- Convenient patented built-in wire strippers speed installation
| Country of Origin | China |
|---|---|
| Assembled Width (in) | 1.3 |
| Assembled Height (in) | 4.2 |
| Assembled Depth (in) | 1.4 |
| Assembled Weight (lb) | 0.79 |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | General Duty |
| Type of Mounting | Wall Mounted |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Combination |
Overview
Eaton Wiring's 20A duplex receptacle with dual USB in offers fast, efficient and adapter-less charging of electronic devices in residential and commercial environments. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used. Dual USB-C charging ports charge most electronic devices that comply with the latest USB-C standard.
- Standard AC duplex receptacle with two USB charging ports rated at 3.6A
- Dual USB ports charges most compatible USB electronic devices
- Replaces a standard duplex receptacle
- Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
- Convenient patented built-in wire strippers speed installation
Specifications
| Country of Origin | China |
|---|---|
| Assembled Width (in) | 1.3 |
| Assembled Height (in) | 4.2 |
| Assembled Depth (in) | 1.4 |
| Assembled Weight (lb) | 0.79 |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 20 Amp |
| Terminal Connection | Back & Side Wire |
| Number of Poles | 2 |
| Durability | General Duty |
| Type of Mounting | Wall Mounted |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R |
| Dielectric Strength | 2000 Volt |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Combination |
