15 A White Straight Blade Duplex Receptacle
UPC
032664519383
Online Sku
1003861
Model Number
5270W-BU
$0.00
$8.09

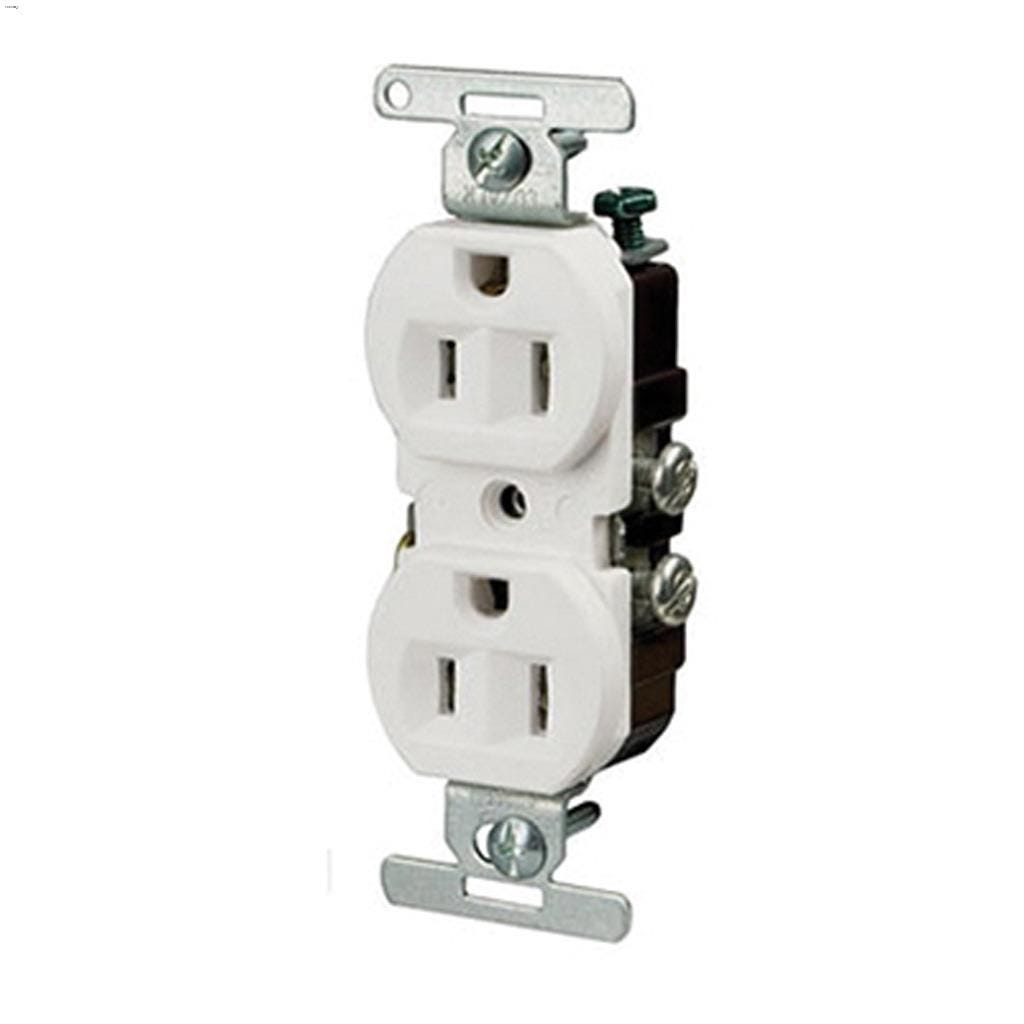

2-Pole 3-Wire Straight blade duplex receptacle has voltage rating of 125 Volts and current rating of 15 Amps. The white standard grade receptacle has side wire terminals that accommodate up to #10 solid/stranded copper or solid aluminum wire. It measures 2.921 cm x 1.8034 cm. Receptacle is UL listed and CSA certified.
- Side wire terminals accept up to #10 solid or stranded copper or solid aluminum wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Combination slot/Phillips head mounting and terminal screws for easy installation
- Suitable for aluminum and copper wire
- Standards: UL Listed| CSA Certified
| Assembled Width (in) | 0.71 |
|---|---|
| Assembled Depth (in) | 1.14 |
| Colour | White |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 15 Amp |
| Terminal Connection | Side Wire |
| Number of Poles | 2 |
| Durability | Standard |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Style | Straight Blade Duplex |
Overview
2-Pole 3-Wire Straight blade duplex receptacle has voltage rating of 125 Volts and current rating of 15 Amps. The white standard grade receptacle has side wire terminals that accommodate up to #10 solid/stranded copper or solid aluminum wire. It measures 2.921 cm x 1.8034 cm. Receptacle is UL listed and CSA certified.
- Side wire terminals accept up to #10 solid or stranded copper or solid aluminum wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Combination slot/Phillips head mounting and terminal screws for easy installation
- Suitable for aluminum and copper wire
- Standards: UL Listed| CSA Certified
Specifications
| Assembled Width (in) | 0.71 |
|---|---|
| Assembled Depth (in) | 1.14 |
| Colour | White |
| GFCI | No |
| Voltage Rating | 125 Volt |
| Amperage Rating | 15 Amp |
| Terminal Connection | Side Wire |
| Number of Poles | 2 |
| Durability | Standard |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Style | Straight Blade Duplex |
