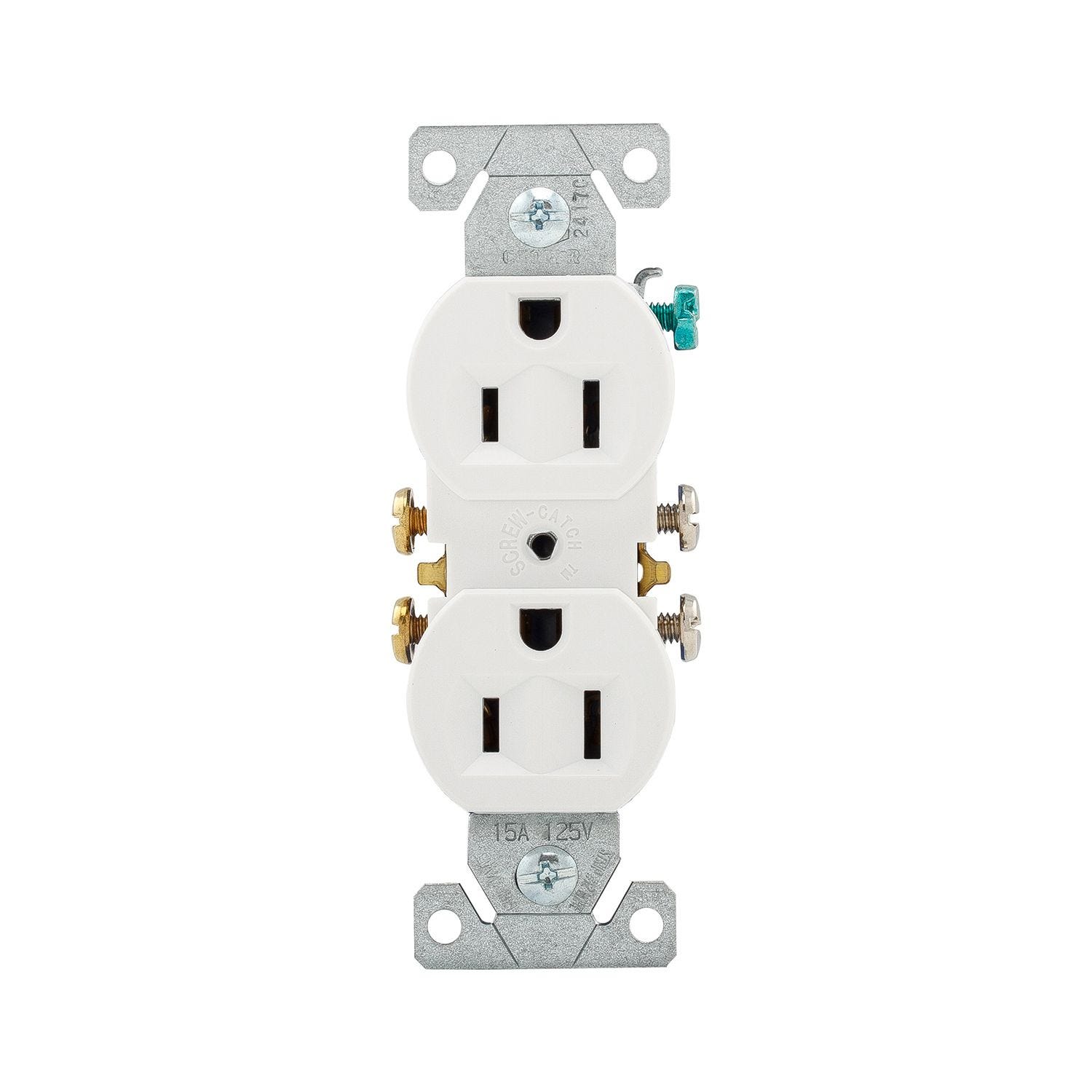

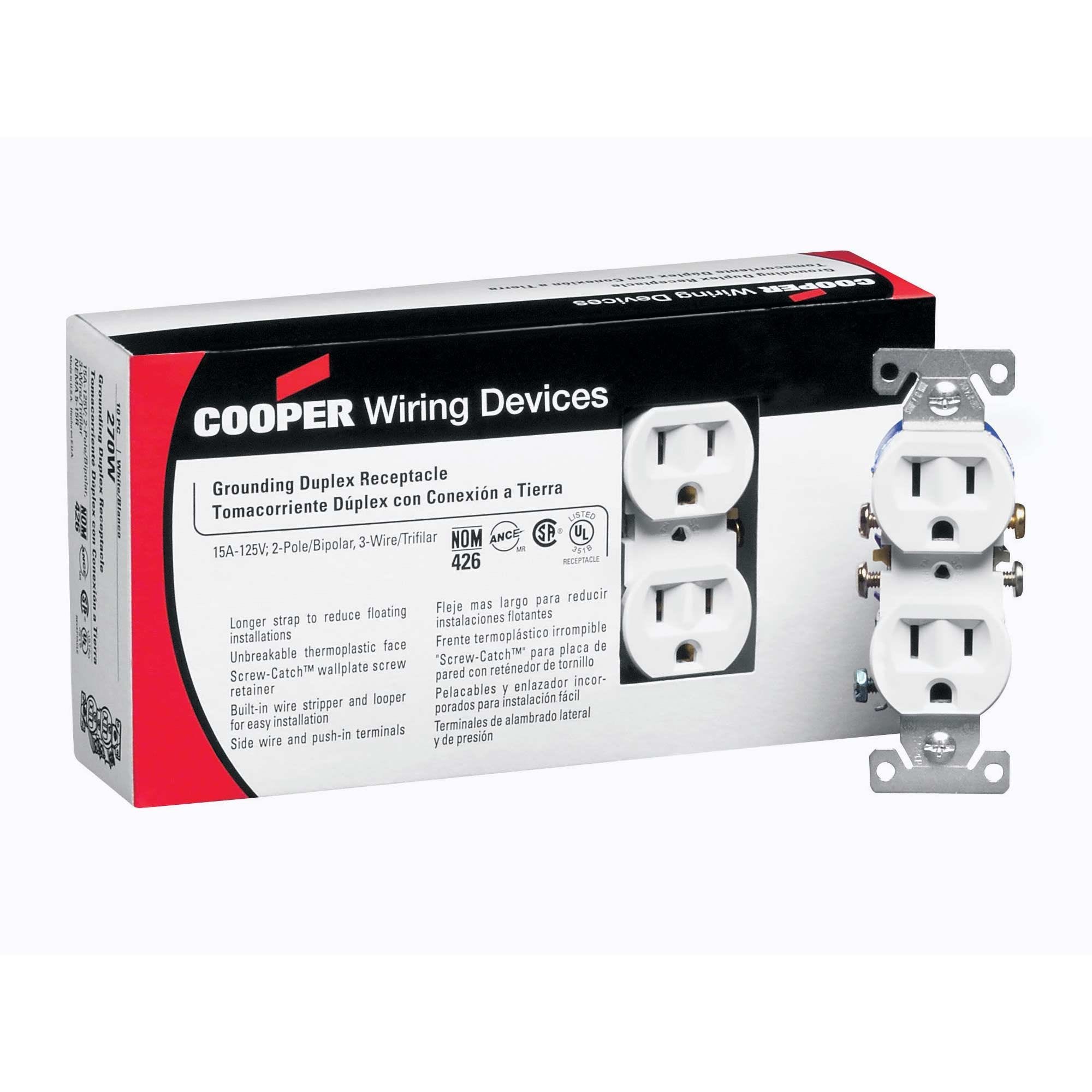

15 A White Duplex Receptacle-10/Pack
UPC
032664557316
Online Sku
1003860
Model Number
270W-10-L
$0.00
$7.97
2-Pole 3-Wire Duplex receptacle has voltage rating of 125 VAC and current rating of 15 Amps. The push-in terminals accommodate #14 AWG solid wire and side wire terminals accommodate up to #10 solid/stranded wire for quick installation. This standard grade receptacle features thermoplastic face and back body. It measures 10.6426 cm x 3.302 cm x 1.7526 cm. This receptacle features easy access split circuit break-off tab. The double wipe ground contacts enable long-term ground retention. Receptacle withstands temperature rating of -20 to 60 deg C. Receptacle is UL listed, CSA certified, RoHS compliant and meets NOM standards.
- Longer and wider strap provides 40% more contact area to wall board while eliminating floating installations virtually
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Standards: UL Listed| CSA certified| NOM Certified| RoHS Compliant
| Assembled Width (in) | 0.69 |
|---|---|
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.3 |
| Assembled Weight (lb) | 1.26 |
| Colour | White |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 15 Amp |
| Terminal Connection | Side & Push Wire |
| Number of Poles | 2 |
| Durability | Standard |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
Overview
2-Pole 3-Wire Duplex receptacle has voltage rating of 125 VAC and current rating of 15 Amps. The push-in terminals accommodate #14 AWG solid wire and side wire terminals accommodate up to #10 solid/stranded wire for quick installation. This standard grade receptacle features thermoplastic face and back body. It measures 10.6426 cm x 3.302 cm x 1.7526 cm. This receptacle features easy access split circuit break-off tab. The double wipe ground contacts enable long-term ground retention. Receptacle withstands temperature rating of -20 to 60 deg C. Receptacle is UL listed, CSA certified, RoHS compliant and meets NOM standards.
- Longer and wider strap provides 40% more contact area to wall board while eliminating floating installations virtually
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Standards: UL Listed| CSA certified| NOM Certified| RoHS Compliant
Specifications
| Assembled Width (in) | 0.69 |
|---|---|
| Assembled Height (in) | 4.19 |
| Assembled Depth (in) | 1.3 |
| Assembled Weight (lb) | 1.26 |
| Colour | White |
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125 Volt AC |
| Amperage Rating | 15 Amp |
| Terminal Connection | Side & Push Wire |
| Number of Poles | 2 |
| Durability | Standard |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Duplex |
