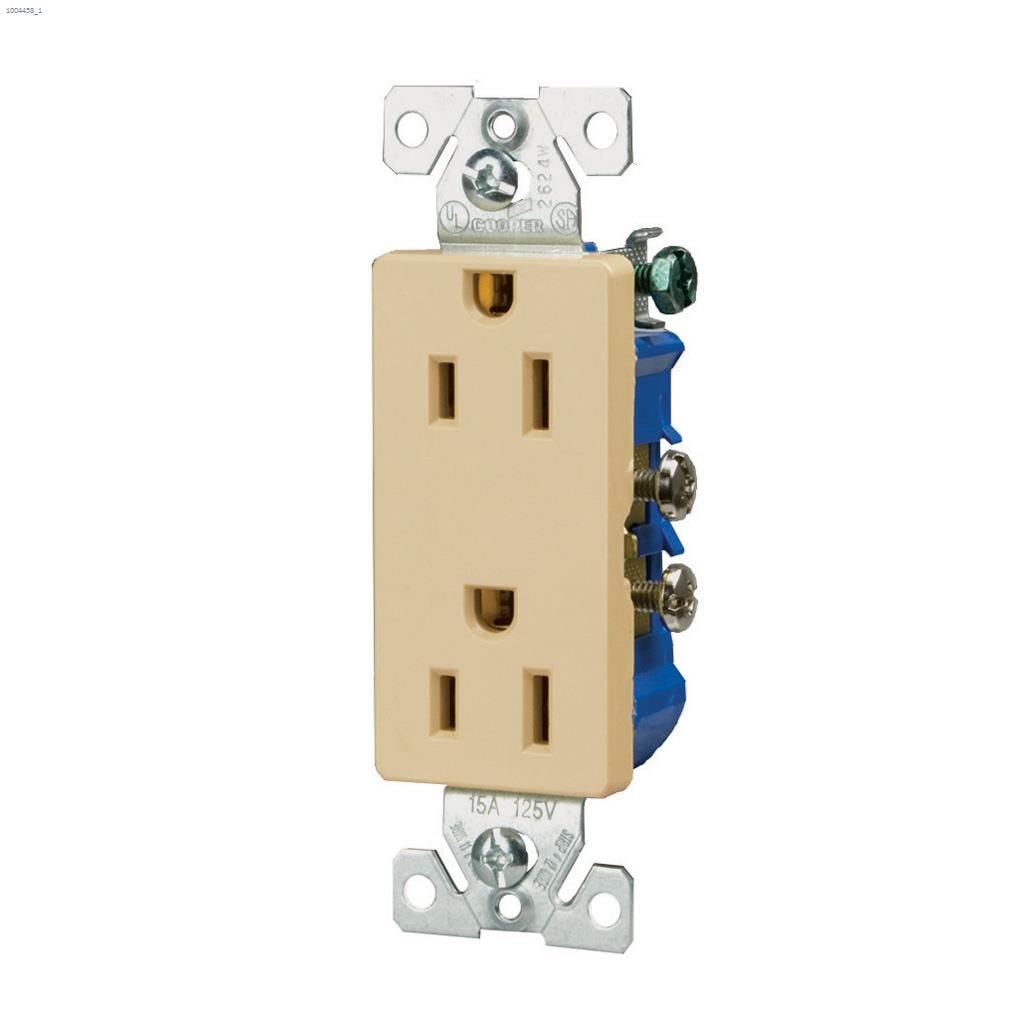

15 A Decorator Duplex Receptacle

Only %1 left
UPC
Online Sku
1004458
Model Number
$0.00
Starting at
$2.79

  • Ready to Deliver
  • 0 at
2-Pole 3-Wire Decorator duplex receptacle has voltage rating of 125 VAC and current rating of 15 Amps. The push-in terminals accommodate #14 AWG solid wire and the side wire terminals accept up to #10 AWG solid wire. This standard grade receptacle features high impact-resistant thermoplastic face and back body to prevent breakage. It measures 10.6426 cm x 3.302 cm x 1.7526 cm. This receptacle features easy access split circuit break-off tab. The double wipe ground contacts enable long-term ground retention. Receptacle withstands temperature rating of -40 to 65 deg C. Receptacle is UL listed, CSA certified, RoHS compliant and meets NOM standards.
  • Longer and wider strap provides 40% more contact area to wall board while eliminating floating installations virtually
  • Push-in terminals accept #14 AWG solid wire for quick installation
  • Patented built-in wire looper for pre-looping
  • High impact-resistant thermoplastic face and back body effectively eliminates breakage
  • Double-wipe ground contacts ensure long-term ground retention
  • Easy access split circuit break-off tab
  • Side wire terminals accept solid wire of size up to #10 AWG
  • Standards: UL498 Listed, CSA C22.2 Certified, NOM 426, RoHS Compliant
Assembled Width (in) 0.69
Assembled Height (in) 4.19
Assembled Depth (in) 1.3
Colour Ivory
Temperature Rating (C) -40 to 65
GFCI No
Voltage Rating 125 V CA
Amperage Rating 15 Amp
Terminal Connection Side & Push Wire
Number of Poles 2
Durability Standard
Number of Wires 3
NEMA Configuration NEMA 5-15R
Environmental Conditions V2 Flammability Rated Per UL94
Style Decorator Duplex

Overview

2-Pole 3-Wire Decorator duplex receptacle has voltage rating of 125 VAC and current rating of 15 Amps. The push-in terminals accommodate #14 AWG solid wire and the side wire terminals accept up to #10 AWG solid wire. This standard grade receptacle features high impact-resistant thermoplastic face and back body to prevent breakage. It measures 10.6426 cm x 3.302 cm x 1.7526 cm. This receptacle features easy access split circuit break-off tab. The double wipe ground contacts enable long-term ground retention. Receptacle withstands temperature rating of -40 to 65 deg C. Receptacle is UL listed, CSA certified, RoHS compliant and meets NOM standards.
  • Longer and wider strap provides 40% more contact area to wall board while eliminating floating installations virtually
  • Push-in terminals accept #14 AWG solid wire for quick installation
  • Patented built-in wire looper for pre-looping
  • High impact-resistant thermoplastic face and back body effectively eliminates breakage
  • Double-wipe ground contacts ensure long-term ground retention
  • Easy access split circuit break-off tab
  • Side wire terminals accept solid wire of size up to #10 AWG
  • Standards: UL498 Listed, CSA C22.2 Certified, NOM 426, RoHS Compliant

Specifications

Assembled Width (in) 0.69
Assembled Height (in) 4.19
Assembled Depth (in) 1.3
Colour Ivory
Temperature Rating (C) -40 to 65
GFCI No
Voltage Rating 125 V CA
Amperage Rating 15 Amp
Terminal Connection Side & Push Wire
Number of Poles 2
Durability Standard
Number of Wires 3
NEMA Configuration NEMA 5-15R
Environmental Conditions V2 Flammability Rated Per UL94
Style Decorator Duplex
