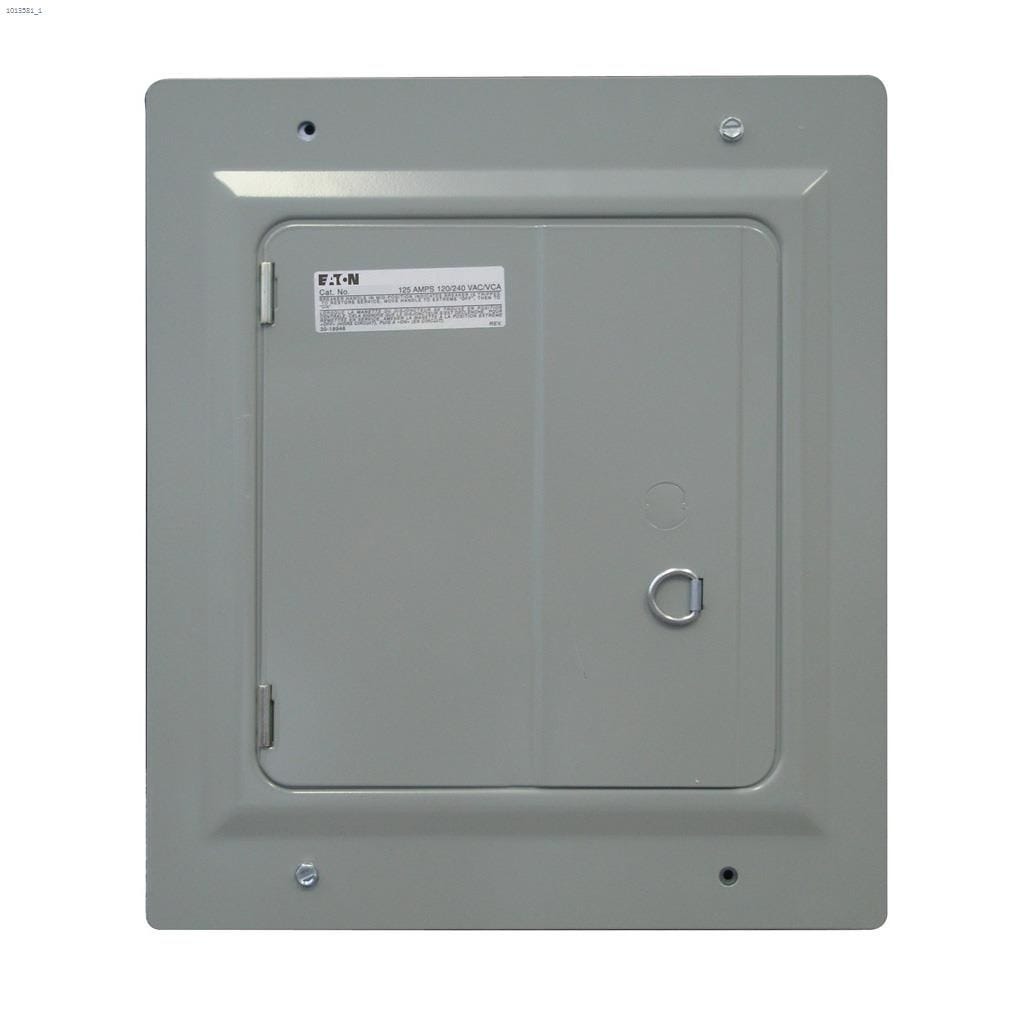

125A 8/16 Circuit Plug-In Load Centre Sub Panel

UPC
622588100806
Online Sku
1013581
Model Number
CCPL108
$0.00
$84.79
  • Ready to Deliver
  • 3 Available for pick up at
Plug-in loadcenter sub panel has voltage rating of 120/240 Volts at 1-Phase and current rating of 125 Amps. Flush/surface mountable sub panel measuring 11 in x 3-1/2 in x 13 in, features 16 gauge sheet steel construction. It features plated aluminum busbar for superior conductivity. Plug-in loadcenter sub panel is CSA certified.
  • Adjustable trim for convenient flush levelling
  • 1-Piece| formed| plated aluminum busbar provides superior conductivity
  • Maximum wiring space for ease of wiring in compliance with CSA requirements
  • Contractor friendly knockouts Improved knockout configurations include tangential knockouts in top and bottom box ends
  • Six mounting holes three top| three bottom for ease of installation in either vertical| horizontal or inverted positions
  • Dry wall markings on enclosure notches on outside of box enclosure indicates depth for dry wall
  • Single keyhole mounting with just one keyhole at top and bottom for easier mounting and levelling
  • Neutral bonding strap pre-attached at factory to eliminate loose parts
  • For non-combination and main lug only
  • Standards: CSA C22.2 No.29 Certified
Manufacturer's Warranty 10 Years Limited
Material 16 Gauge Sheet Steel
Assembled Width (in) 11
Assembled Height (in) 13
Assembled Depth (in) 3.5
Voltage Rating 120/240 Volt Single Phase
Amperage Rating 125 Amp
Shape Rectangular

Overview

Plug-in loadcenter sub panel has voltage rating of 120/240 Volts at 1-Phase and current rating of 125 Amps. Flush/surface mountable sub panel measuring 11 in x 3-1/2 in x 13 in, features 16 gauge sheet steel construction. It features plated aluminum busbar for superior conductivity. Plug-in loadcenter sub panel is CSA certified.
  • Adjustable trim for convenient flush levelling
  • 1-Piece| formed| plated aluminum busbar provides superior conductivity
  • Maximum wiring space for ease of wiring in compliance with CSA requirements
  • Contractor friendly knockouts Improved knockout configurations include tangential knockouts in top and bottom box ends
  • Six mounting holes three top| three bottom for ease of installation in either vertical| horizontal or inverted positions
  • Dry wall markings on enclosure notches on outside of box enclosure indicates depth for dry wall
  • Single keyhole mounting with just one keyhole at top and bottom for easier mounting and levelling
  • Neutral bonding strap pre-attached at factory to eliminate loose parts
  • For non-combination and main lug only
  • Standards: CSA C22.2 No.29 Certified

Specifications

Manufacturer's Warranty 10 Years Limited
Material 16 Gauge Sheet Steel
Assembled Width (in) 11
Assembled Height (in) 13
Assembled Depth (in) 3.5
Voltage Rating 120/240 Volt Single Phase
Amperage Rating 125 Amp
Shape Rectangular
