1 Pole Plug-On Circuit Breaker
Only %1 left
Online Sku
1015648
$0.00
Starting at
$26.39
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at

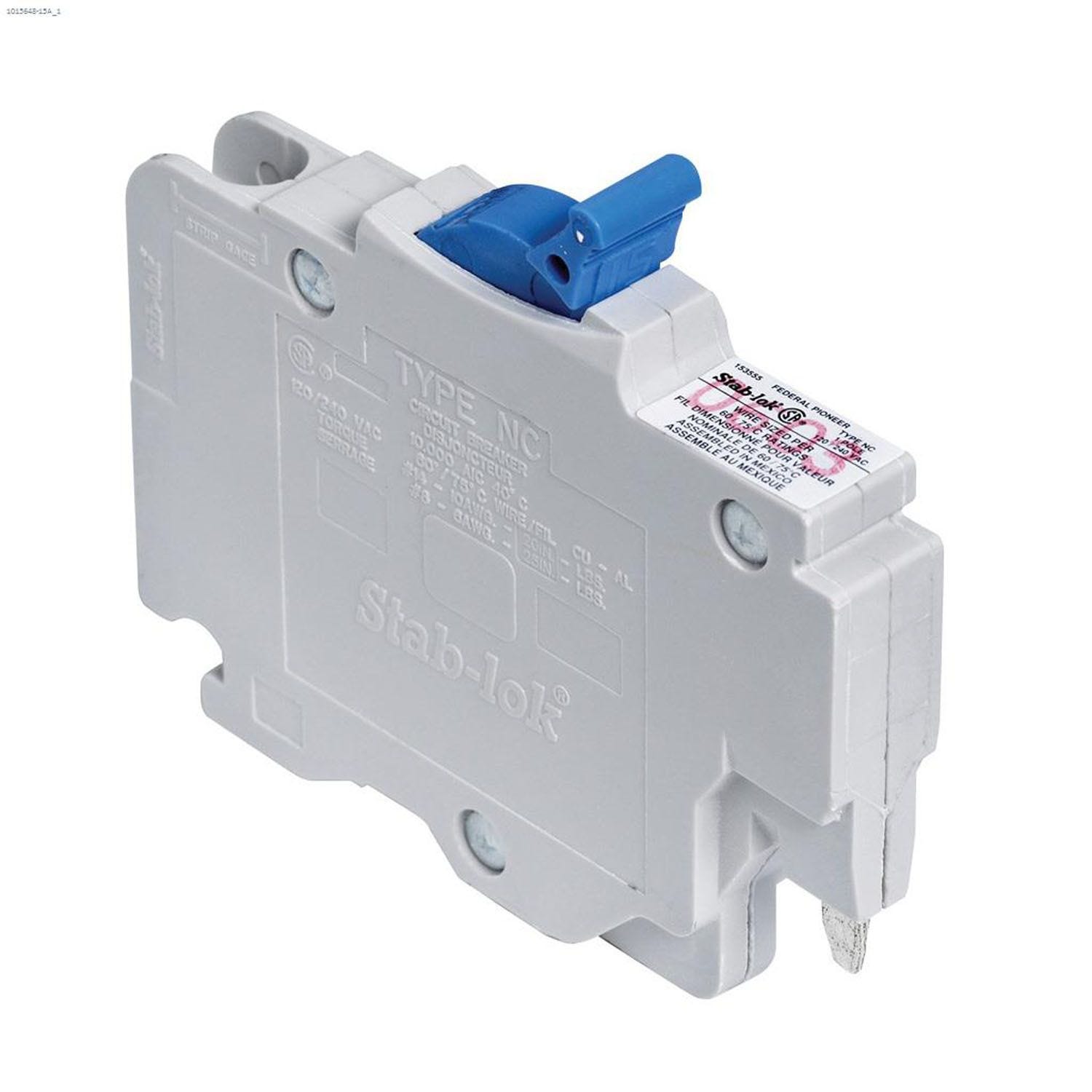

1-Pole Circuit breaker has voltage rating of 120 VAC and interrupt current rating of 10 kilo-Amps. This 1-Phase circuit breaker accommodates conductors of size 14 - 6 AWG. Circuit breaker with lug terminal connection, features thermal-magnetic trip protection. It supports plug-on mounting for making installation easier. This circuit breaker with arc resistant case, withstands temperature of 40 deg C. It has colour-coded blue handle for quick and easy identification. Circuit breaker is UL/ETL listed and CSA certified.
- Provides overload and short circuit protection

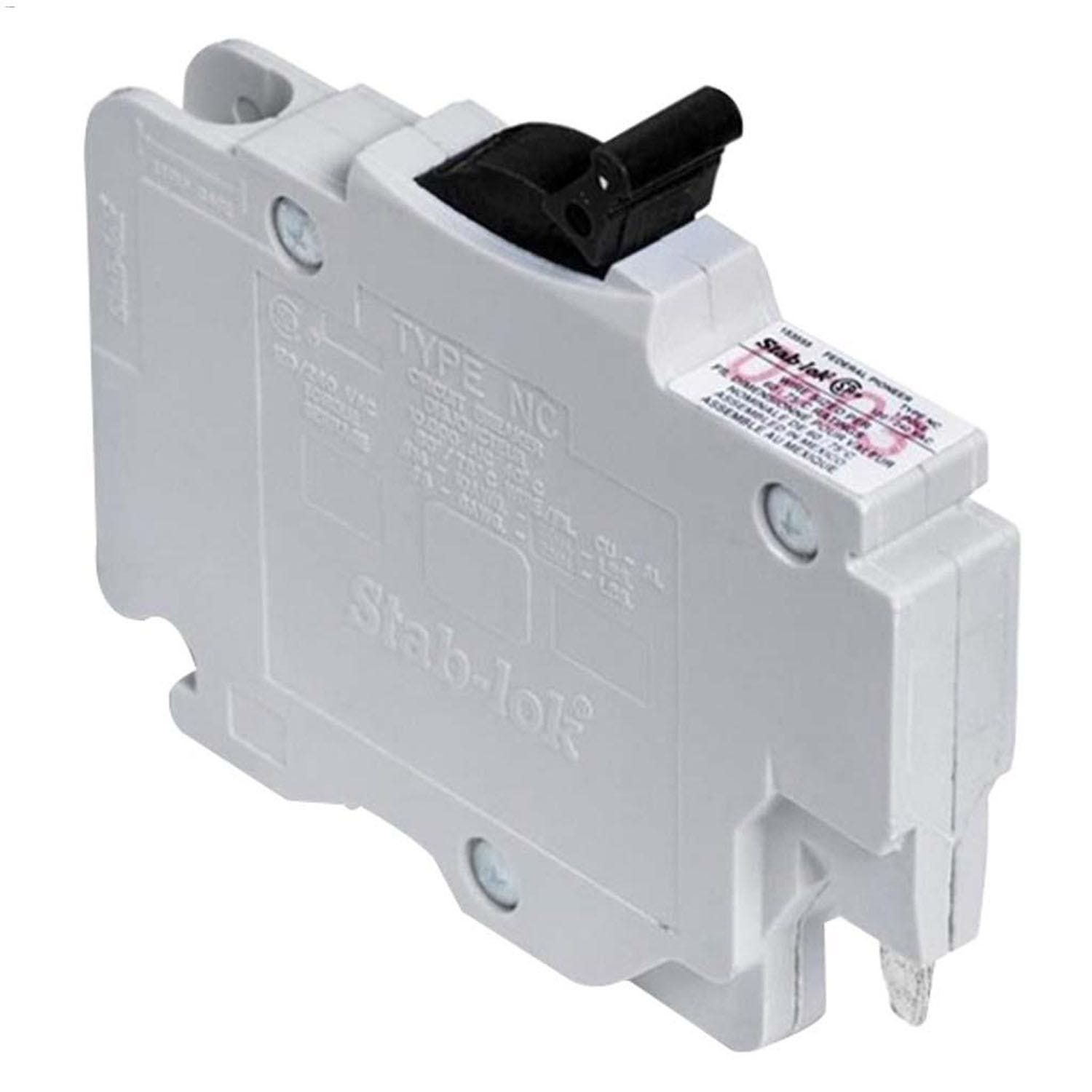

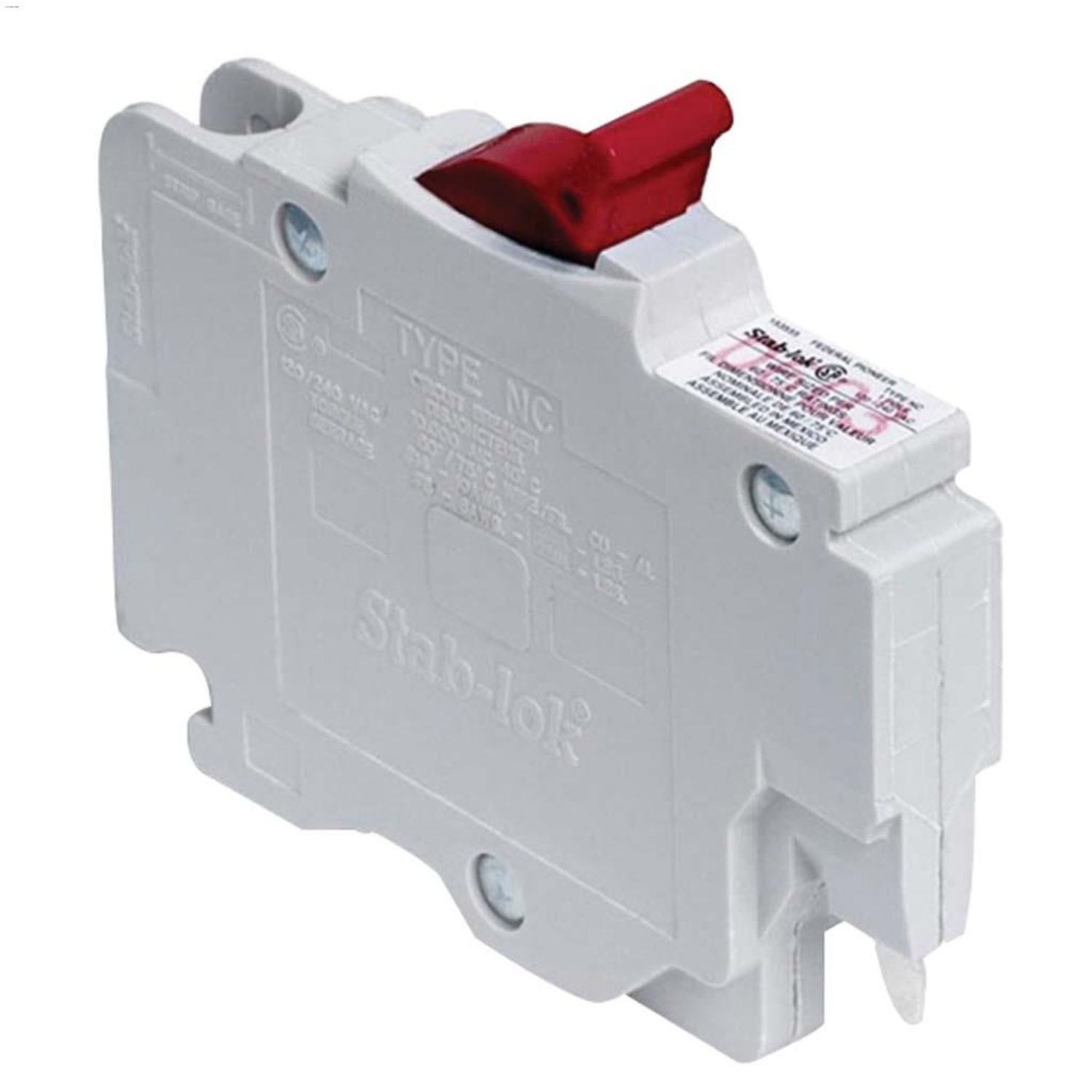

- Colour coded handles enables quick and easy identification as well as represents different ampere ratings
- Compact stab-lok plug-on circuit breaker is 1/2 in wide per pole
- Type NC with Robertson/slot screws and colour coded handles
- Thermal magnetic trip protection
- Exclusive line side stab connection
- Trip free operation
- Arc-resistant case
- Allows for the reduction of the size and weight of the loadcenter
- Standards: UL, ETL Listed and CSA certified
| Colour | Blue |
|---|---|
| Wire Size | 14-6 AWG |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 10 Kilo-Amp |
| Voltage Rating | 120 volts AC |
| Terminal Connection | Lug |
| Number of Poles | 1 |
Overview
1-Pole Circuit breaker has voltage rating of 120 VAC and interrupt current rating of 10 kilo-Amps. This 1-Phase circuit breaker accommodates conductors of size 14 - 6 AWG. Circuit breaker with lug terminal connection, features thermal-magnetic trip protection. It supports plug-on mounting for making installation easier. This circuit breaker with arc resistant case, withstands temperature of 40 deg C. It has colour-coded blue handle for quick and easy identification. Circuit breaker is UL/ETL listed and CSA certified.
- Provides overload and short circuit protection
- Colour coded handles enables quick and easy identification as well as represents different ampere ratings
- Compact stab-lok plug-on circuit breaker is 1/2 in wide per pole
- Type NC with Robertson/slot screws and colour coded handles
- Thermal magnetic trip protection
- Exclusive line side stab connection
- Trip free operation
- Arc-resistant case
- Allows for the reduction of the size and weight of the loadcenter
- Standards: UL, ETL Listed and CSA certified
Specifications
| Colour | Blue |
|---|---|
| Wire Size | 14-6 AWG |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 10 Kilo-Amp |
| Voltage Rating | 120 volts AC |
| Terminal Connection | Lug |
| Number of Poles | 1 |
