15 A Straight Blade Duplex Receptacle
Only %1 left
Online Sku
1004459
$0.00
Starting at
$5.39
This item is excluded from promotional coupons and sitewide sales. See our Sales Policy for more details.
- Ready to Deliver
- 0 at

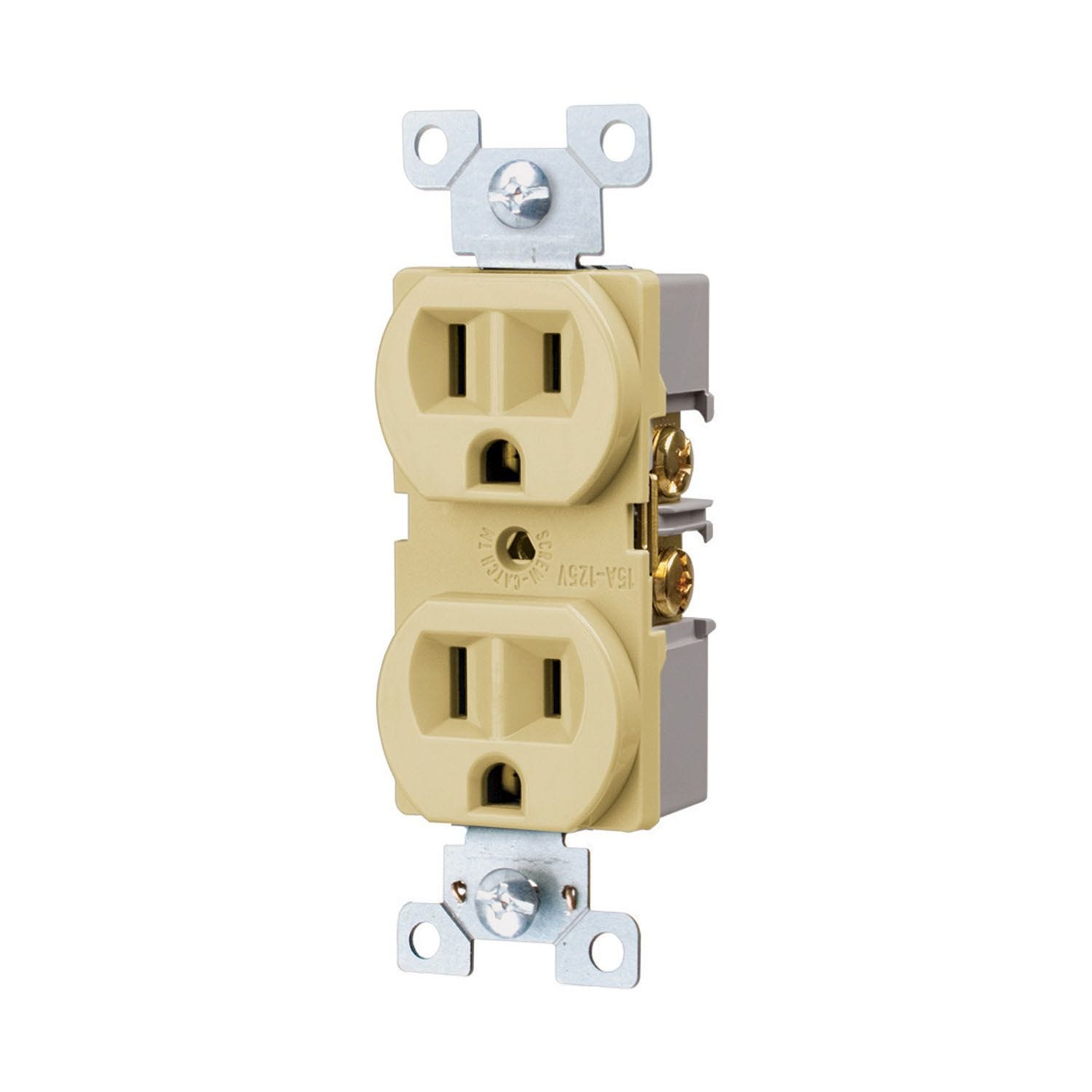

2-Pole 3-Wire Straight blade duplex receptacle has voltage rating of 125 VAC and current rating of 15 Amps. Receptacle accommodates solid side wire of size 10 AWG for quick installation. This commercial specification grade receptacle features nylon face and galvanized steel strap for flexibility. It uses automatic grounding system for eliminating the need of bonding jumper in grounded metal enclosure. The triple wipe brass contacts offer excellent plug blade retention. Receptacle withstands temperature rating of -20 to 60 deg C. Receptacle is UL listed and CSA certified.
- Sturdy and compact design meets all the demands of commercial specification-grade performance
- Excellent plug blade retention is provided by triple wipe 0.81 mm triple wipe brass line contacts and 1.27 mm brass ground
- Automatic grounding system eliminates the requirement for bonding jumper in grounded metal enclosure
- Standards: UL Listed, CSA Certified
| Colour | Ivory |
|---|---|
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125Â VÂ CA |
| Amperage Rating | 15 Amp |
| Terminal Connection | Side Wire |
| Number of Poles | 2 |
| Durability | Commercial Specification |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Straight Blade Duplex |
Overview
2-Pole 3-Wire Straight blade duplex receptacle has voltage rating of 125 VAC and current rating of 15 Amps. Receptacle accommodates solid side wire of size 10 AWG for quick installation. This commercial specification grade receptacle features nylon face and galvanized steel strap for flexibility. It uses automatic grounding system for eliminating the need of bonding jumper in grounded metal enclosure. The triple wipe brass contacts offer excellent plug blade retention. Receptacle withstands temperature rating of -20 to 60 deg C. Receptacle is UL listed and CSA certified.
- Sturdy and compact design meets all the demands of commercial specification-grade performance
- Excellent plug blade retention is provided by triple wipe 0.81 mm triple wipe brass line contacts and 1.27 mm brass ground
- Automatic grounding system eliminates the requirement for bonding jumper in grounded metal enclosure
- Standards: UL Listed, CSA Certified
Specifications
| Colour | Ivory |
|---|---|
| Temperature Rating (C) | -20 to 60 |
| GFCI | No |
| Voltage Rating | 125Â VÂ CA |
| Amperage Rating | 15 Amp |
| Terminal Connection | Side Wire |
| Number of Poles | 2 |
| Durability | Commercial Specification |
| Number of Wires | 3 |
| NEMA Configuration | NEMA 5-15R |
| Environmental Conditions | V2 Flammability Rated Per UL94 |
| Style | Straight Blade Duplex |
