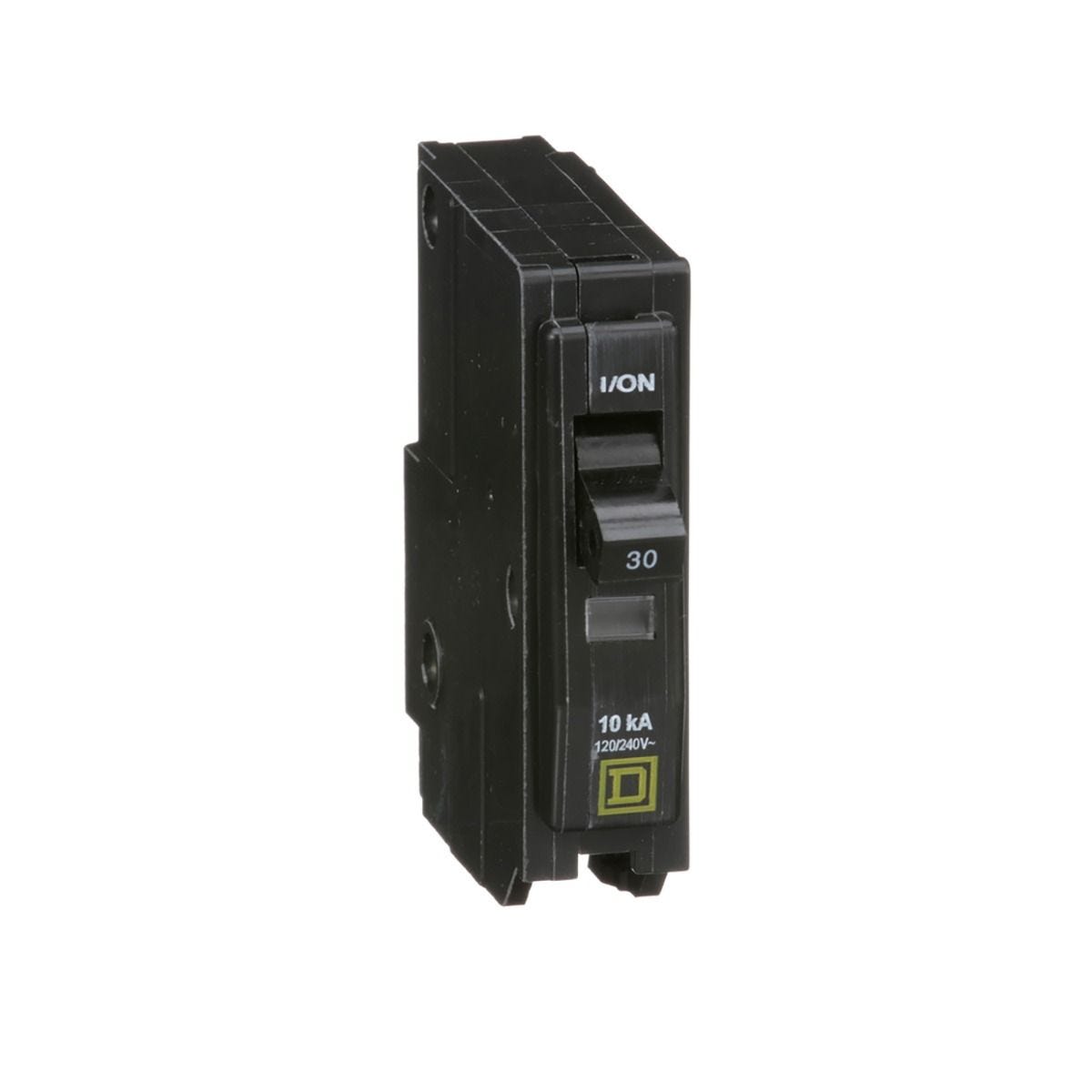

1 Pole 30A Standard Plug-In Miniature Circuit Breaker
UPC
047569838002
Online Sku
1013565
Model Number
QO130CP
$0.00
$33.29

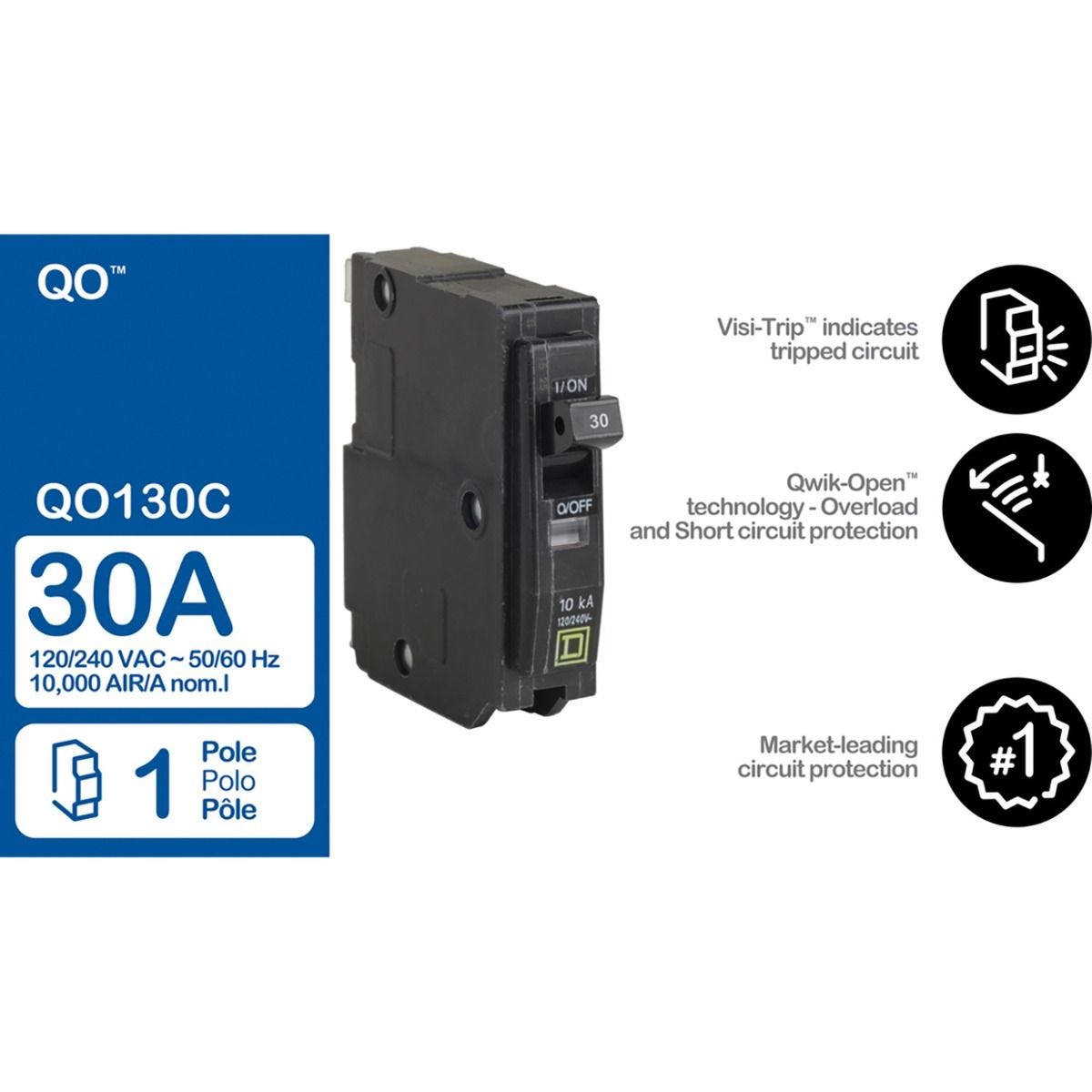

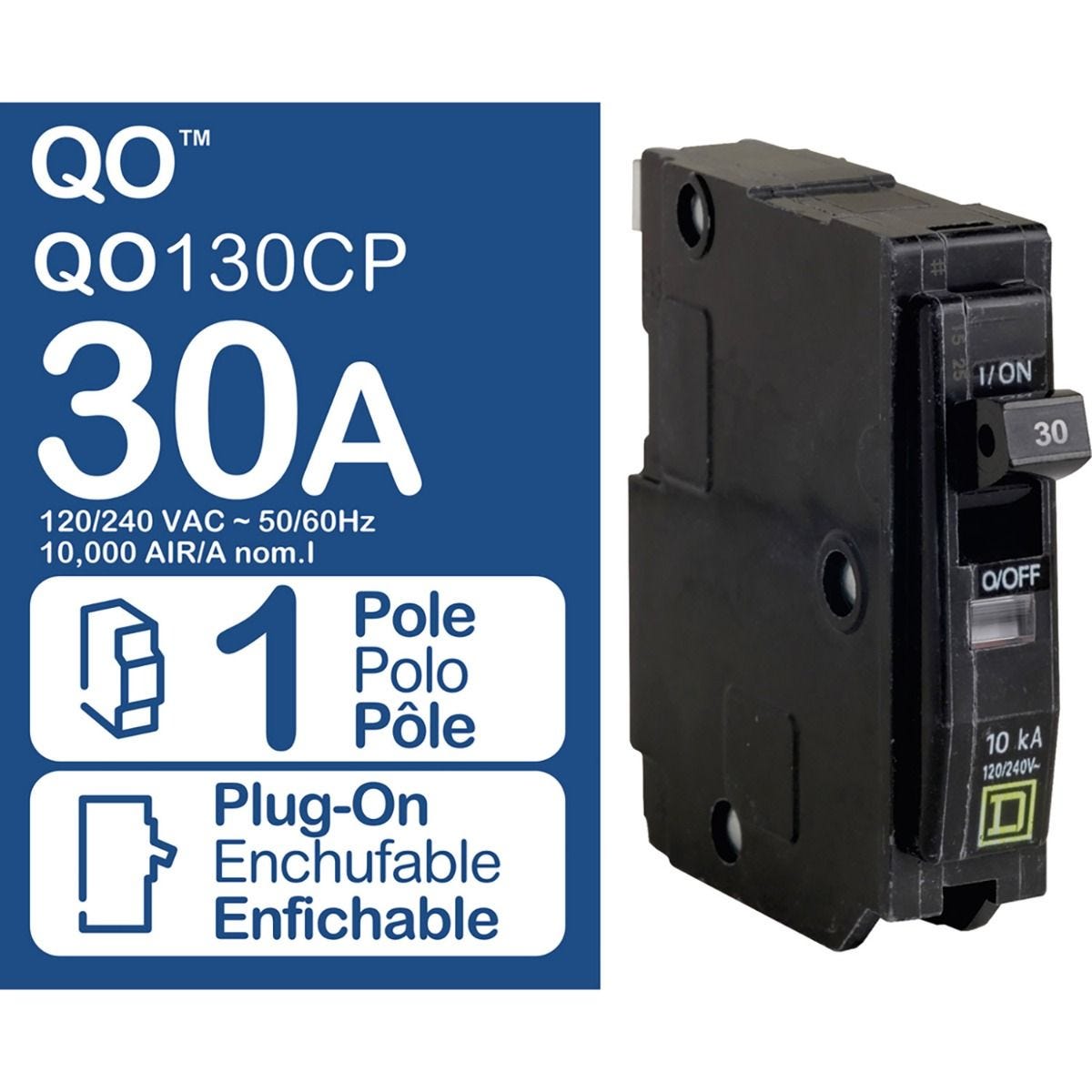

Standard 1-Pole Miniature circuit breaker with Visi-Trip red indicator, has interrupt current rating of 10 kilo-Amps at 120/240 VAC and 5 kilo-Amps at 48 VDC. This 1-Phase circuit breaker accommodates aluminium/copper conductors of size 14 - 8 AWG. It measures 3/4 in x 2.91 in x 3 in. Circuit breaker with pressure plate terminal connection, features thermal-magnetic trip protection. It supports plug-in mounting for making installation easier. This circuit breaker withstands temperature of 104 degrees F. Circuit breaker is UL listed, CSA certified, HACR rated and RoHS compliant.

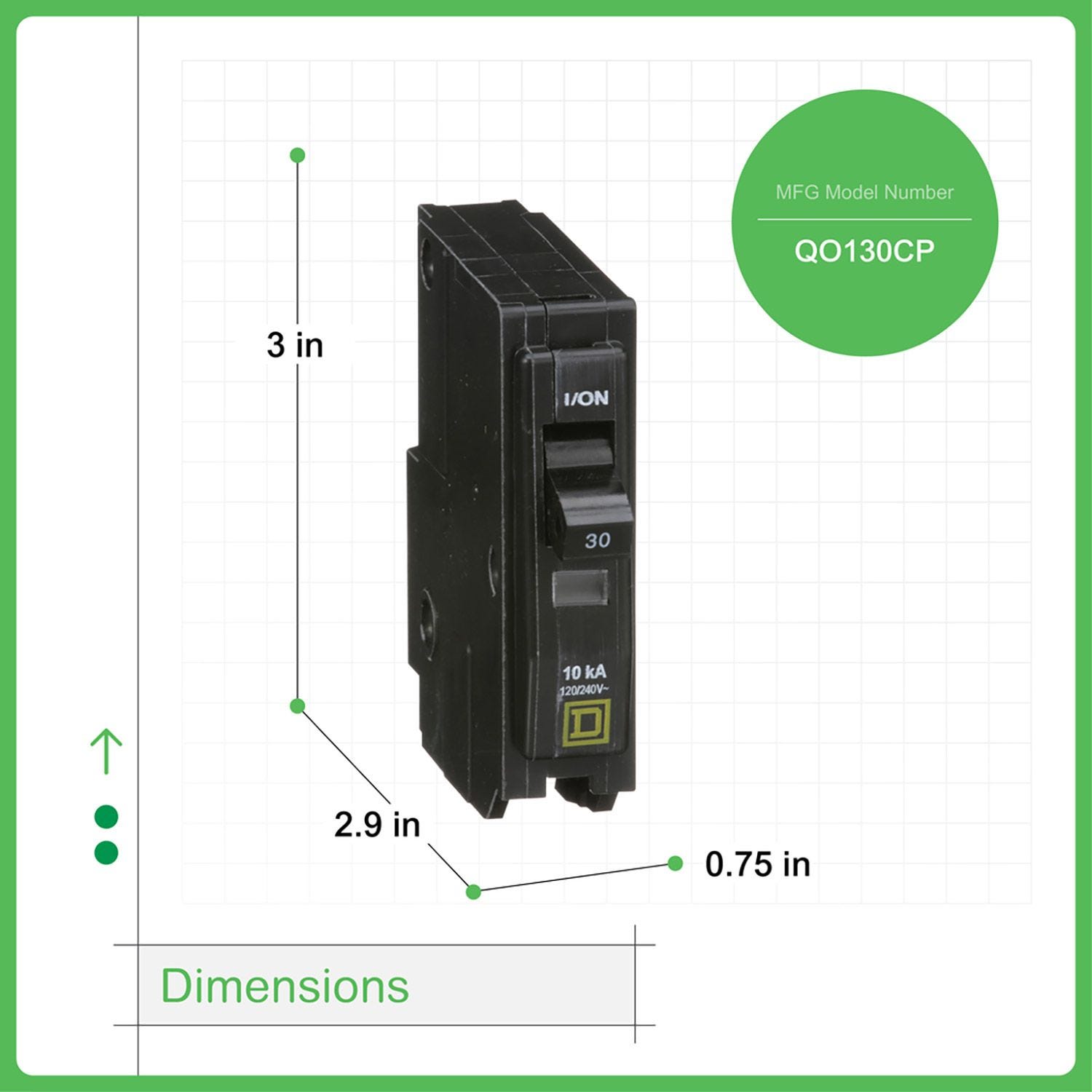

- Dimensions: 3/4" x 2.91" x 3"
- Dark slate grey colour
- Suitable for sizes 14 to 8 aluminium or copper conductors
- Operates at temperatures up to 104°F
- Thermal-magnetic trip protection
| Assembled Width (in) | 0.75 |
|---|---|
| Assembled Height (in) | 3 |
| Assembled Depth (in) | 2.91 |
| Colour | Dark Slate Grey |
| Wire Size | 14-8 AWG (Aluminum/Copper) |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 10 Kilo-Amp At 120/240 Volt AC, 5 Kilo-Amp At 48 Volt DC |
| Voltage Rating | 120/240 Volt AC, 48 Volt DC |
| Amperage Rating | 30 Amp |
| Terminal Connection | Pressure Plate |
| Number of Poles | 1 |
- 6838310 Spec Download
Overview
Standard 1-Pole Miniature circuit breaker with Visi-Trip red indicator, has interrupt current rating of 10 kilo-Amps at 120/240 VAC and 5 kilo-Amps at 48 VDC. This 1-Phase circuit breaker accommodates aluminium/copper conductors of size 14 - 8 AWG. It measures 3/4 in x 2.91 in x 3 in. Circuit breaker with pressure plate terminal connection, features thermal-magnetic trip protection. It supports plug-in mounting for making installation easier. This circuit breaker withstands temperature of 104 degrees F. Circuit breaker is UL listed, CSA certified, HACR rated and RoHS compliant.
- Dimensions: 3/4" x 2.91" x 3"
- Dark slate grey colour
- Suitable for sizes 14 to 8 aluminium or copper conductors
- Operates at temperatures up to 104°F
- Thermal-magnetic trip protection
Specifications
| Assembled Width (in) | 0.75 |
|---|---|
| Assembled Height (in) | 3 |
| Assembled Depth (in) | 2.91 |
| Colour | Dark Slate Grey |
| Wire Size | 14-8 AWG (Aluminum/Copper) |
| Temperature Rating (C) | 40 |
| GFCI | No |
| Interrupt Rating | 10 Kilo-Amp At 120/240 Volt AC, 5 Kilo-Amp At 48 Volt DC |
| Voltage Rating | 120/240 Volt AC, 48 Volt DC |
| Amperage Rating | 30 Amp |
| Terminal Connection | Pressure Plate |
| Number of Poles | 1 |
Downloads
- 6838310 Spec Download
