1/2 HP 230V 4" Submersible Well Pump
UPC
010121141810
Online Sku
1024074
Model Number
14942405-RL12G05-3W2
$0.00
$284.50

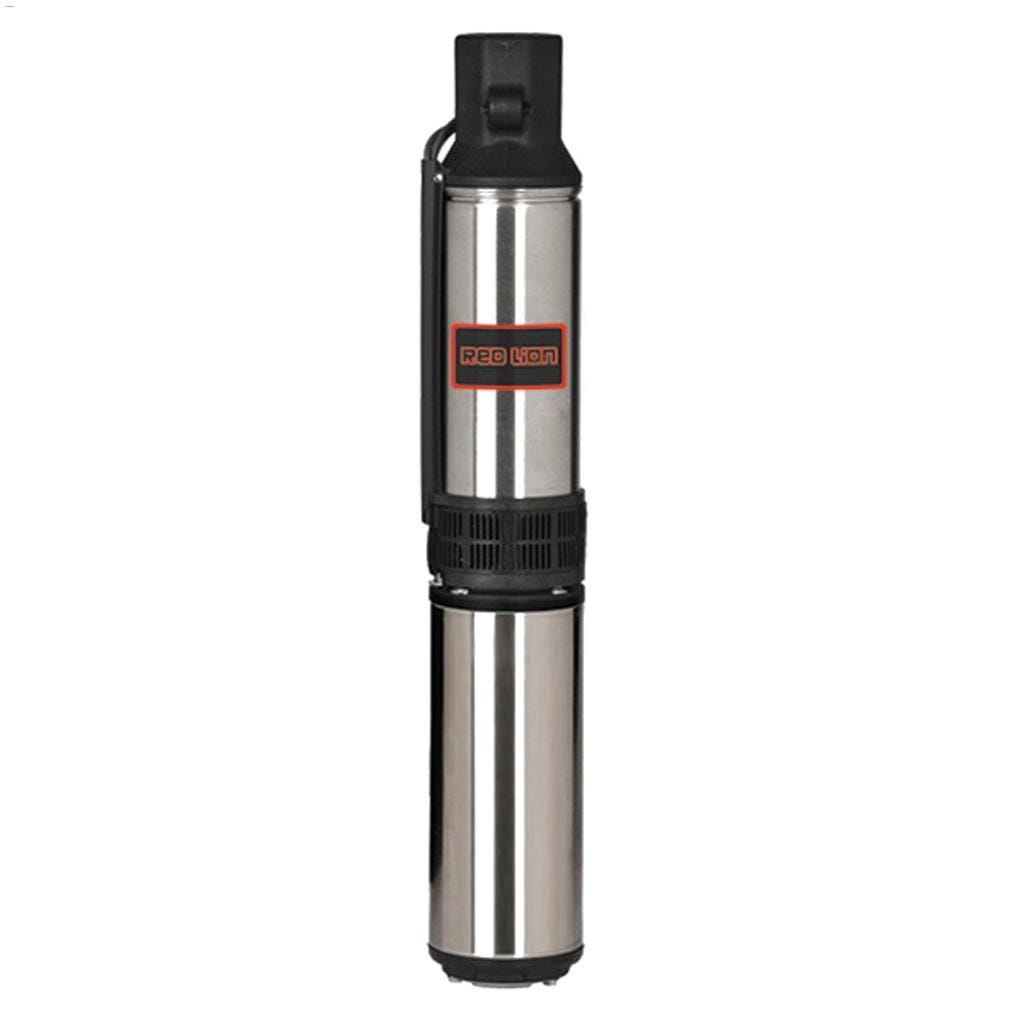

4 in Submersible well pump features stainless steel construction for added corrosion resistance. Pump measuring 4.6 in x 5.75 in x 38.25 in, has thermoplastic discharge and motor bracket for longer endurance. It operates at current and voltage rating of 6 Amps and 230 Volts. The 3-Wire pump with 1/2 hp engine, offers maximum flow rate of 12 GPM. Pump has 1-1/4 in FNPT discharge/outlet, built-in suction screen and check valve. It comes with control box.
- Powered by industry standard 2- or 3-Wire motors
- Thermoplastic discharge and motor bracket
- Stainless steel pump shell
- Built-in suction screen and check valve
- Control box included with all 3-Wire pumps (1/2 to 1 hp)
| Manufacturer's Warranty | 3 Years |
|---|---|
| Type of Fuel | Electric |
| Water Flow (GPM) | 12 |
| Voltage Rating | 230 Volt |
| Amperage Rating | 6 Amp |
| Type of Usage | Water |
| Horsepower | 01-Feb |
- 7066004 Manual Download
Overview
4 in Submersible well pump features stainless steel construction for added corrosion resistance. Pump measuring 4.6 in x 5.75 in x 38.25 in, has thermoplastic discharge and motor bracket for longer endurance. It operates at current and voltage rating of 6 Amps and 230 Volts. The 3-Wire pump with 1/2 hp engine, offers maximum flow rate of 12 GPM. Pump has 1-1/4 in FNPT discharge/outlet, built-in suction screen and check valve. It comes with control box.
- Powered by industry standard 2- or 3-Wire motors
- Thermoplastic discharge and motor bracket
- Stainless steel pump shell
- Built-in suction screen and check valve
- Control box included with all 3-Wire pumps (1/2 to 1 hp)
Specifications
| Manufacturer's Warranty | 3 Years |
|---|---|
| Type of Fuel | Electric |
| Water Flow (GPM) | 12 |
| Voltage Rating | 230 Volt |
| Amperage Rating | 6 Amp |
| Type of Usage | Water |
| Horsepower | 01-Feb |
Downloads
- 7066004 Manual Download
